2409 28 Ave Sw
Twenty20 & Co Inc
2409 28 Ave Sw
May 3, 2026 at 10:33pm MDT
Apr 27, 2026
"Designed to tell the real story."
the summary
⚠️ Tap Here
the insurance
⚠️ Property Specs
the
elements
|
Apr 27, 2026 |
|
2409 28 Ave Sw Calgary, Alberta |
|
Attached |
|
Partly Sunny |
|
Agent & Client |
|
Jason Griffin |
|
Camelia Matheson N/A camelia.matheson@gmail.com 4033016969 |
|
Cody Smith |
|
11:30AM Start Time |
the
method
This inspection is a visual, non-invasive review using normal controls & accessible areas.
We follow a consistent path through all major systems. Findings are structured for clarity so you understand what’s there, what needs attention & what to do next.
Each item lists the component or system, issue defect, recommended action & summary note.
Built to eliminate doubt.
"Turning information into decisions you can trust."
thank you
Thank you for choosing us for your inspection. We truly appreciate your trust.
I will be your primary contact & will do everything I can to ensure you are completely clear on today’s findings.
Please feel free to reach out at any time if you have questions or need further clarification. We’re always happy to help.
Kind Regards,
Jason Griffin
disclaimer
stuff.
A property inspection evaluates visible, non-exhaustive conditions & records findings in report form Inspectors examine readily accessible systems & components using a visual, non-invasive method & operate equipment using normal controls when possible. Components, issues, actions, location, trade & summary may be noted. Conditions reflect time of inspection only. Inaccessible or unsafe areas are not inspected (not accessible)
⚠️ We encourage you to read our Standards of Practice (SOP’s), scope, disclamers & limitations. The SOPs outline the scope of the inspection, the systems reviewed & the limitations that apply. They provide the framework inspectors follow to evaluate properties & communicate findings consistently. This structure helps ensure inspections are performed using a clear, proven, nationally recognized standard. Full details by clicking the logo. 🔻🔻🔻
The difference between something good and something great is attention to detail.
icons &
legends
 |
It’s a snap! Here are some key terms you’ll see throughout. |
| Iconography | Used for clarity. |
 |
Immediate Attention |
 |
Attention |
| Not Inspected | Limitations. |
| Hand Gestures | Universal. |
| Issue: | Identify the problem if there is one |
| Action: | Recommended path to address the issue |
| L: | Location where it is found |
| T: | Typical Tradesperson |
| R: | Reason why it wasn't inspected |
| $ / $$ / $$$ |
the
summary
Exterior
Site Grading :
🔎
Issue: Negative Slope / RISK
Action: Monitor/Improve
Notes: Observation – Issue(s) should be monitored; plan for maintenance or correction as needed. Over time, grading & drainage may become less effective.
Action: Monitor/Improve
Notes: Observation – Issue(s) should be monitored; plan for maintenance or correction as needed. Over time, grading & drainage may become less effective.

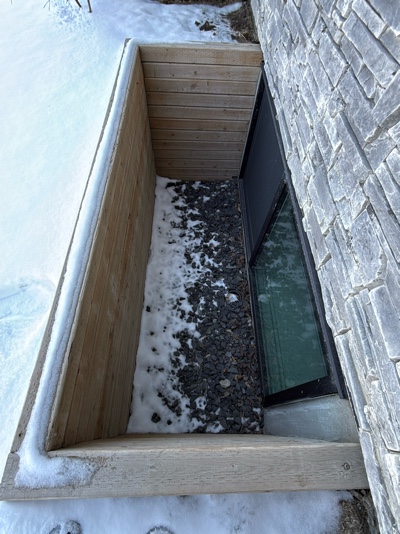

Basement Window Well:
🔎
Issue: Missing Ladder/Fire Escape
Action: Upgrade/Improve L: Exterior
Notes: Immediate Attention – Issue(s) are critical or unsafe; corrective action required. This may result in significant damage and/or injury if not addressed.
Action: Upgrade/Improve L: Exterior
Notes: Immediate Attention – Issue(s) are critical or unsafe; corrective action required. This may result in significant damage and/or injury if not addressed.

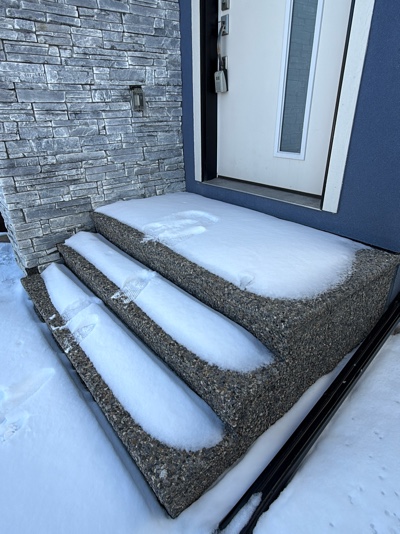

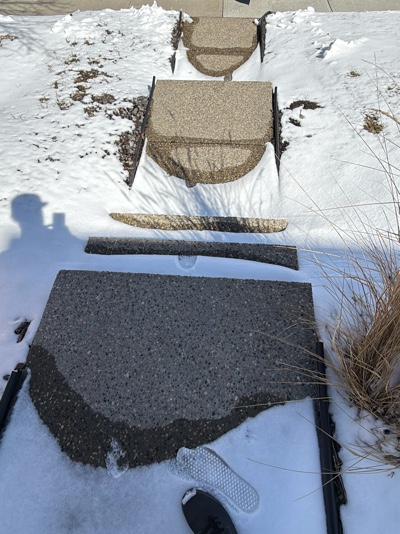

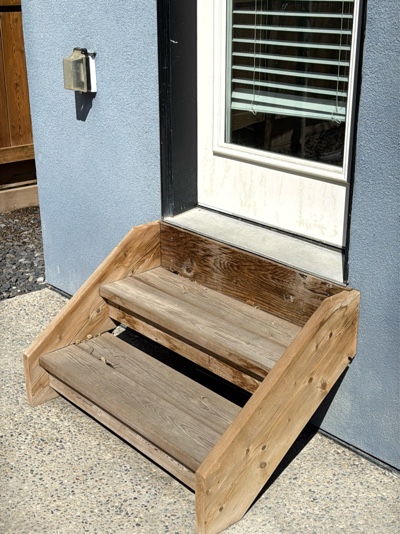

Front & Back Steps:
🔎
Issue: Missing Hand Railing
Action: Upgrade/Improve L: Exterior
Notes: Attention – Issue(s) are critical or unsafe; corrective action required. This may result in significant damage and/or injury if not addressed.
Action: Upgrade/Improve L: Exterior
Notes: Attention – Issue(s) are critical or unsafe; corrective action required. This may result in significant damage and/or injury if not addressed.
Attic

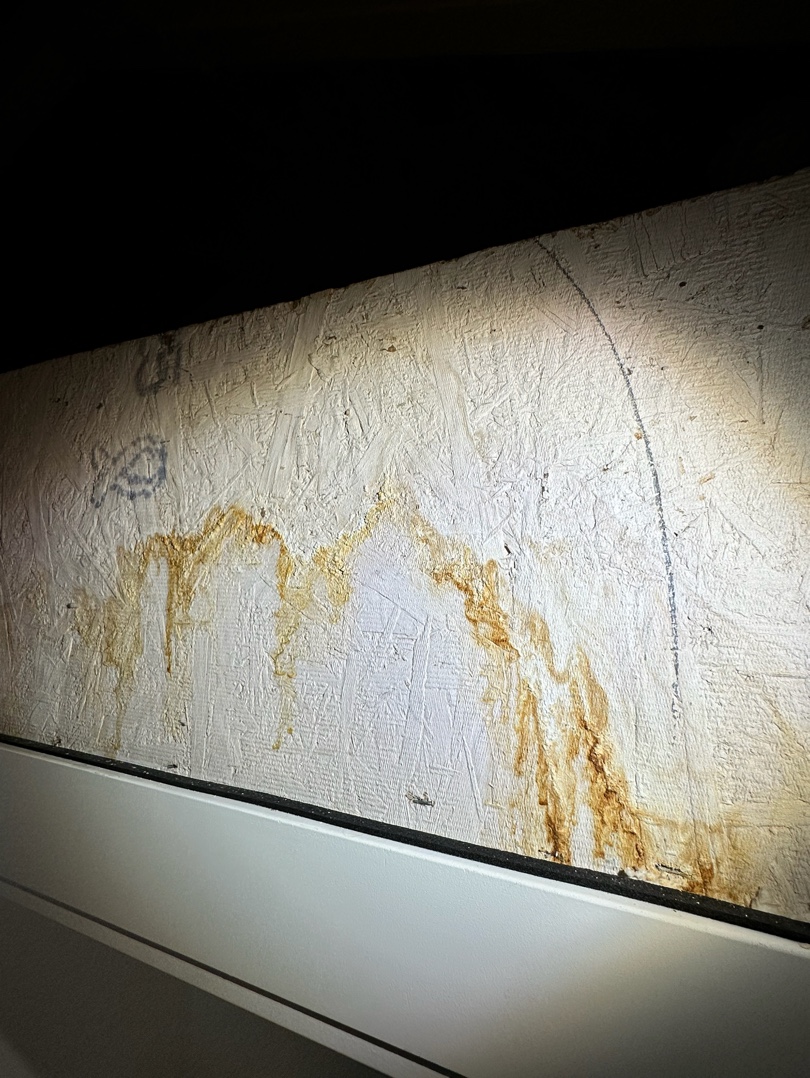

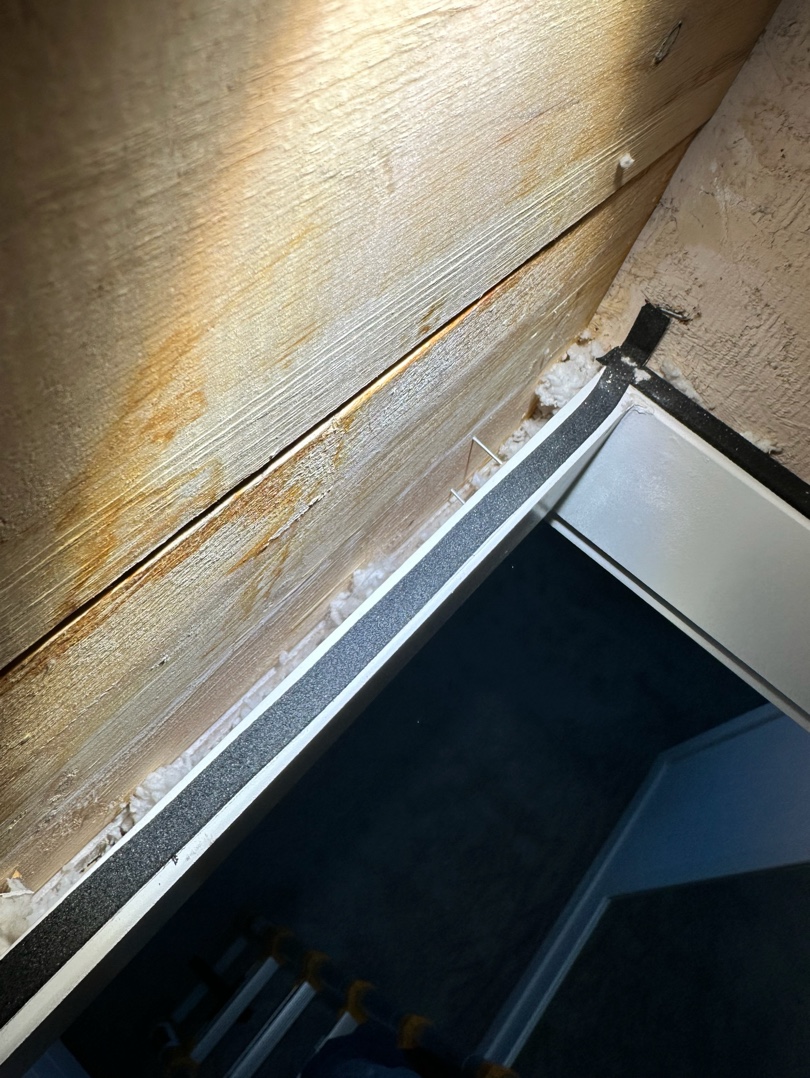

Attic Hatch/Skirting :
🔎
Issue: Staining/Swelling
Action: Seal / Repair / Monitor
Notes: Observation – Issue(s) should be monitored; plan for maintenance or correction as needed.
Action: Seal / Repair / Monitor
Notes: Observation – Issue(s) should be monitored; plan for maintenance or correction as needed.
the
summary
Kitchen

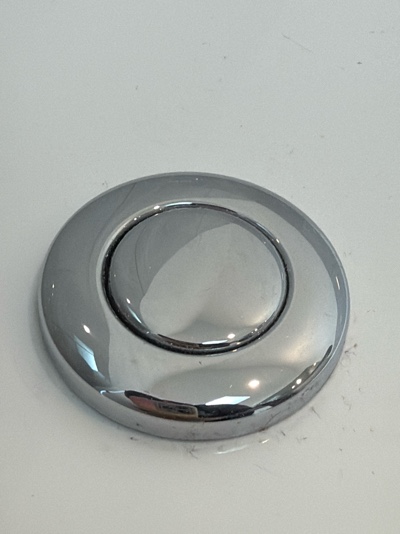

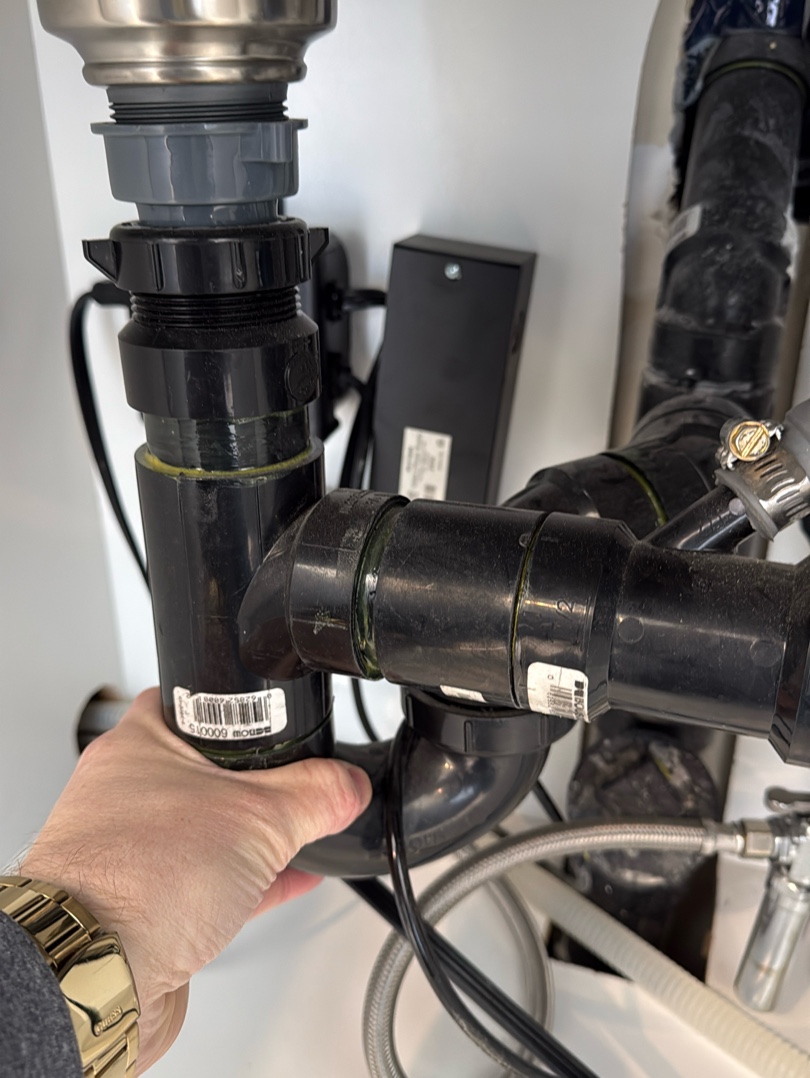

Garborator / Sinkorator:
🔎
Issue: Not Functional/Not Working
Action: Repair &/or Replace L: Kitchen
Notes: Service Recommended – Issue(s) should be addressed by a certified professional. If left as is, this could impact performance, safety, and/or reliability.
Action: Repair &/or Replace L: Kitchen
Notes: Service Recommended – Issue(s) should be addressed by a certified professional. If left as is, this could impact performance, safety, and/or reliability.
Bathroom

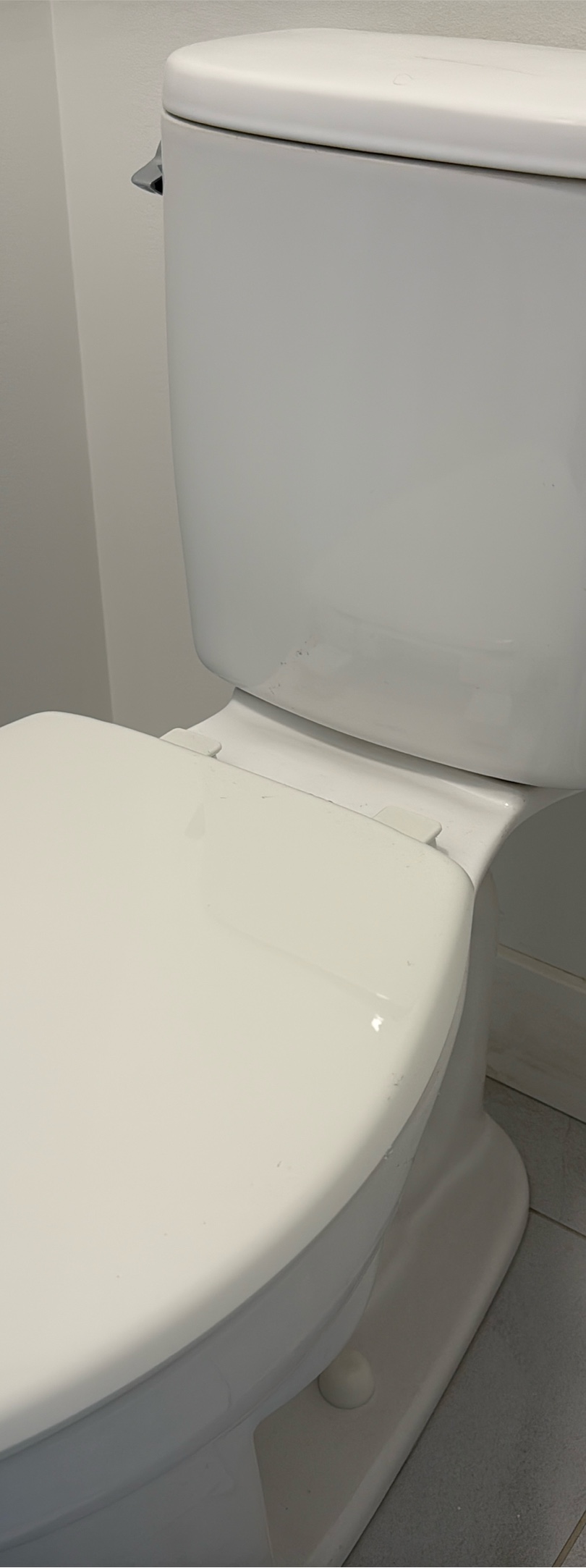

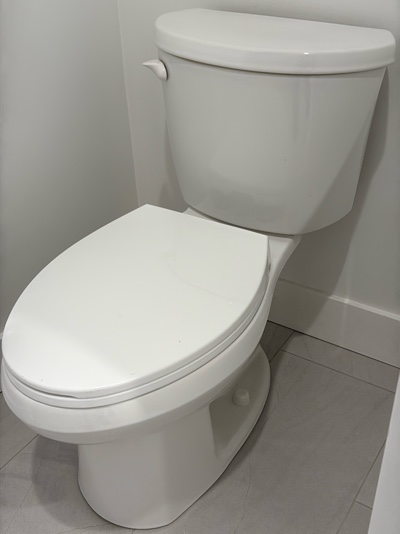

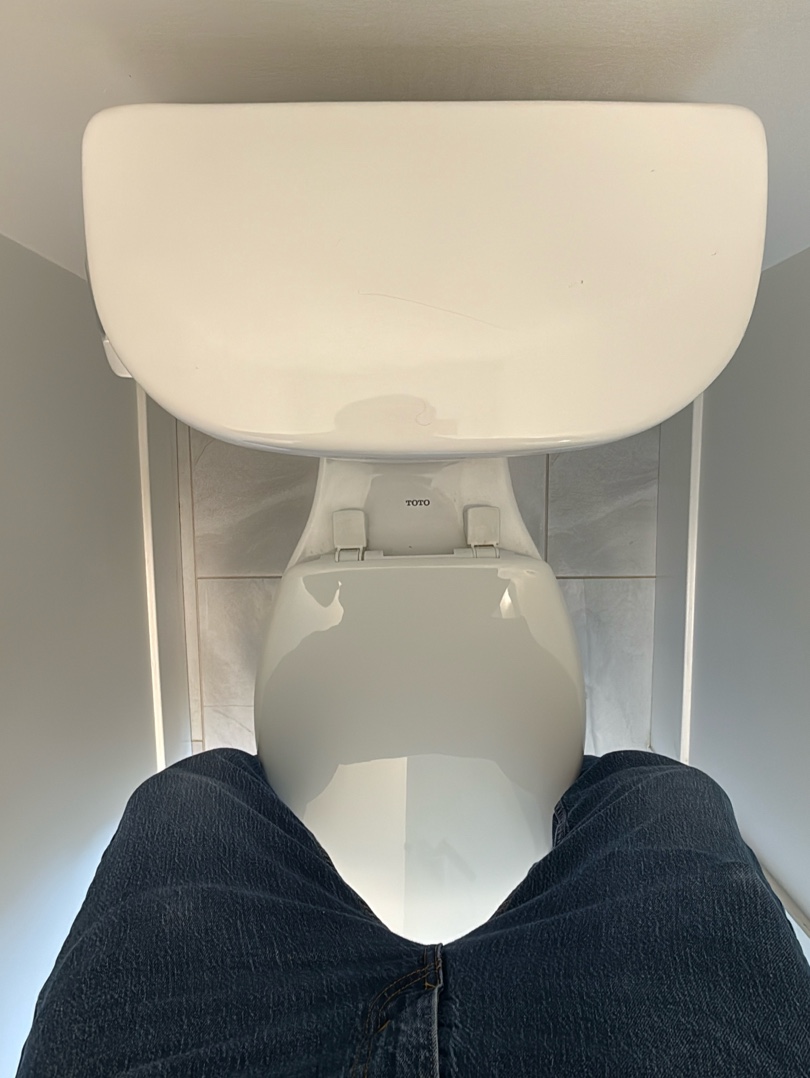

Main Bath & Basement Toilet(s):
🔎
Issue: Loose/Unstable
Action: Tune-up/ Service Advised T: 🔵 Plumbing L: Main/Basement
Notes: Service Recommended – Issue(s) should be addressed by a certified professional. If left as is, this could impact performance, safety, and/or reliability.
Action: Tune-up/ Service Advised T: 🔵 Plumbing L: Main/Basement
Notes: Service Recommended – Issue(s) should be addressed by a certified professional. If left as is, this could impact performance, safety, and/or reliability.
Mechanical

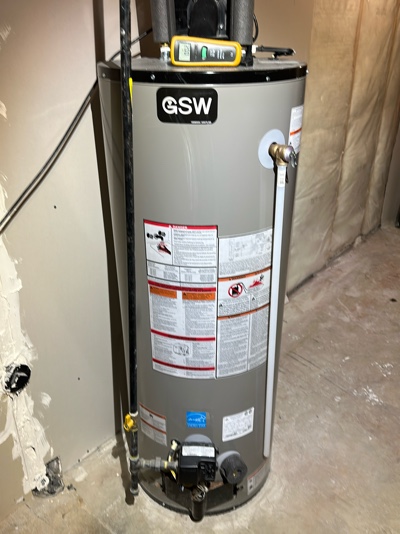

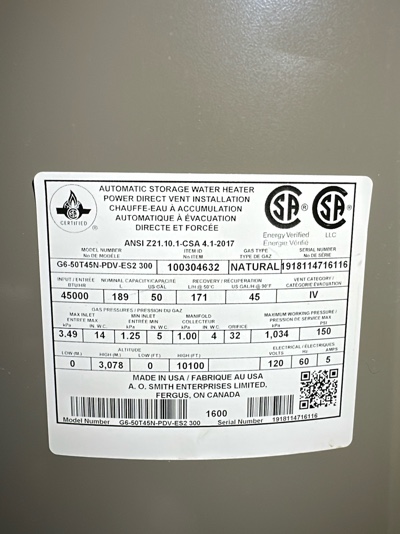

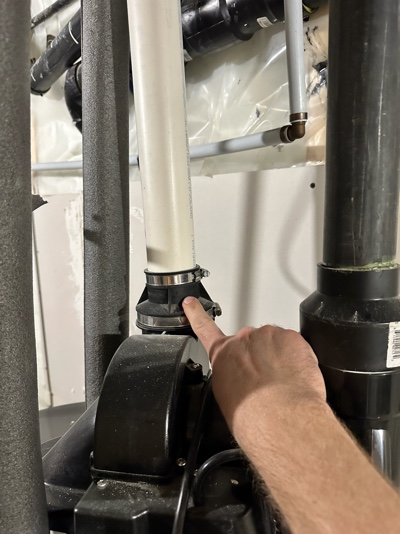

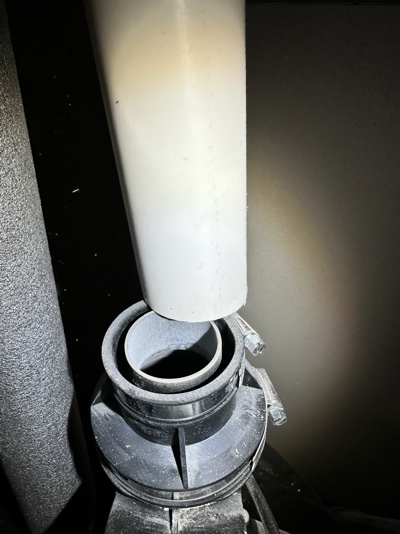

Hot Water Tank Venting:
🔎
Issue: Loose/Leaking
Action: Improve / Secure
Notes: Service Recommended – Issue(s) should be addressed by a certified professional. If left as is, this could impact performance, safety, and/or reliability.
Action: Improve / Secure
Notes: Service Recommended – Issue(s) should be addressed by a certified professional. If left as is, this could impact performance, safety, and/or reliability.

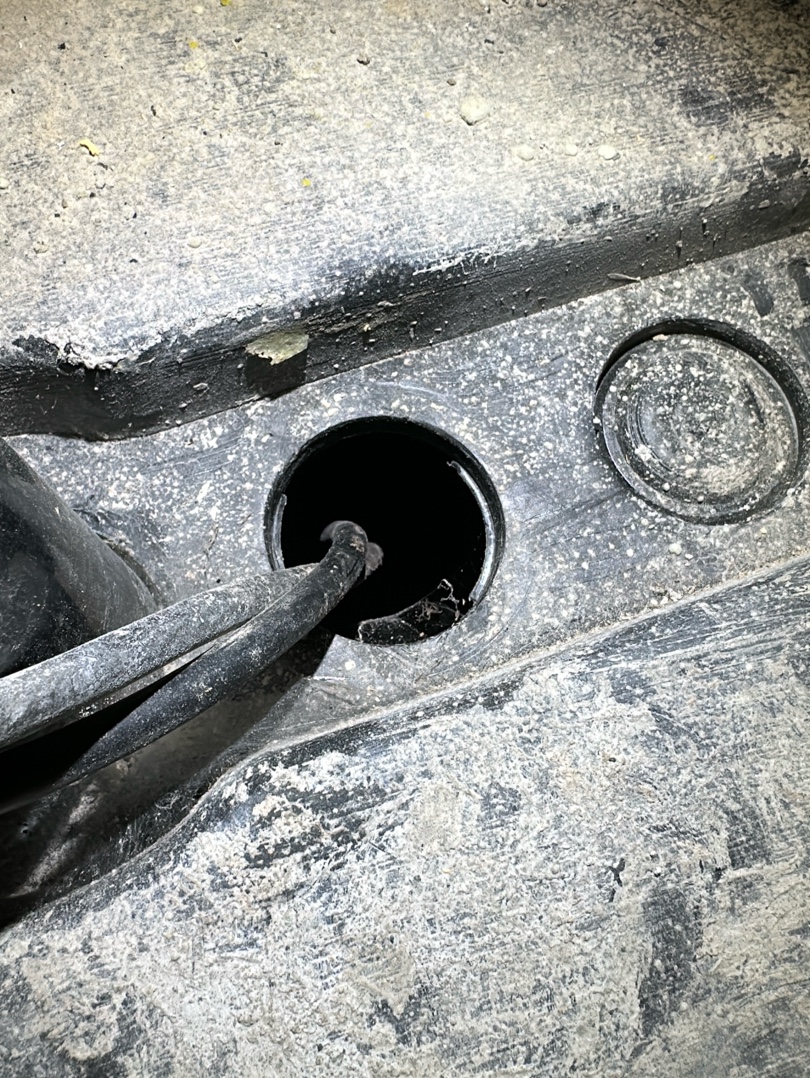

The Sump Pump(s):
🔎
Issue: Unsealed Lid
Action: Improve / Secure
Notes: Attention – Issue(s) should be addressed in a timely manner. Further consequences may occur. With the radon venting codes, all sump pump lids should be a sealed unit to prevent gas from escaping.
Action: Improve / Secure
Notes: Attention – Issue(s) should be addressed in a timely manner. Further consequences may occur. With the radon venting codes, all sump pump lids should be a sealed unit to prevent gas from escaping.
the
summary
Mechanical (cont.)

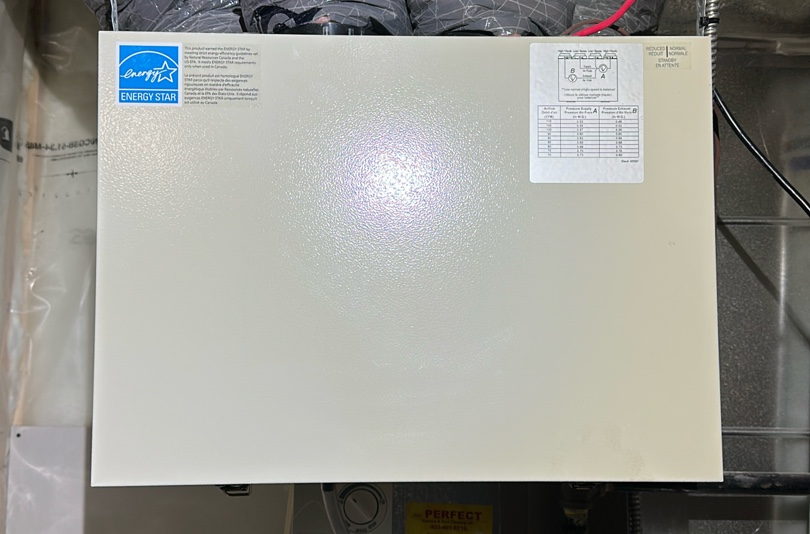

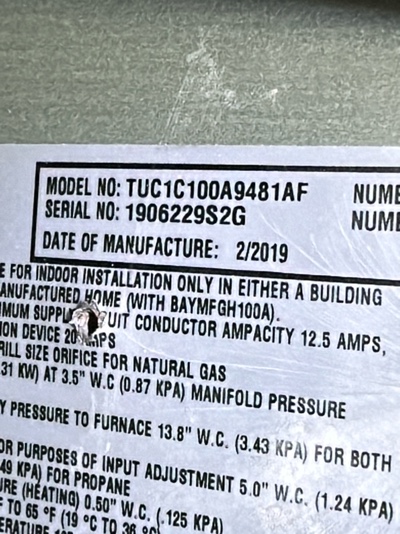

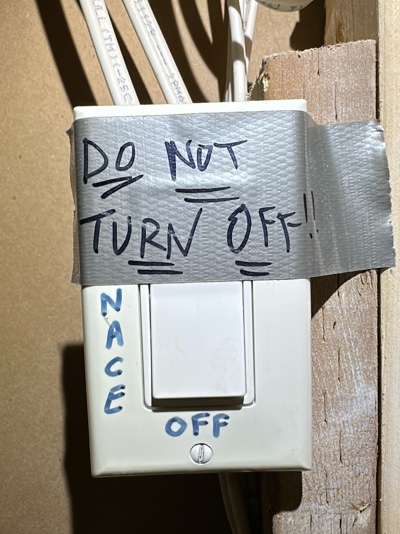

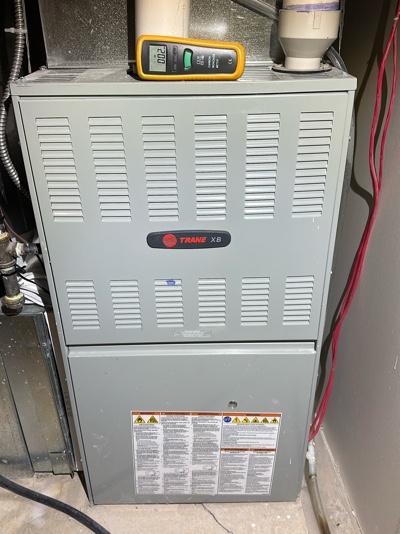

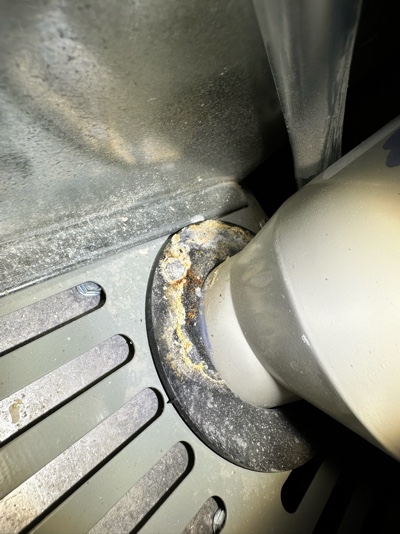

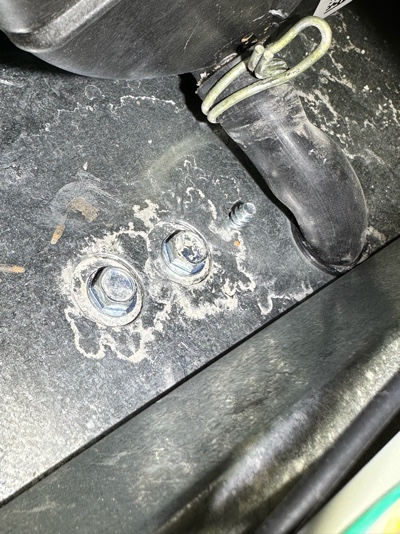

Furnace :
🔎
Issue: Staining/Build-up
Action: Tune-up/ Service Advised
Notes: Service Recommended – Issue(s) should be addressed by a certified professional. If left as is, this could impact performance, safety, and/or reliability.
Action: Tune-up/ Service Advised
Notes: Service Recommended – Issue(s) should be addressed by a certified professional. If left as is, this could impact performance, safety, and/or reliability.

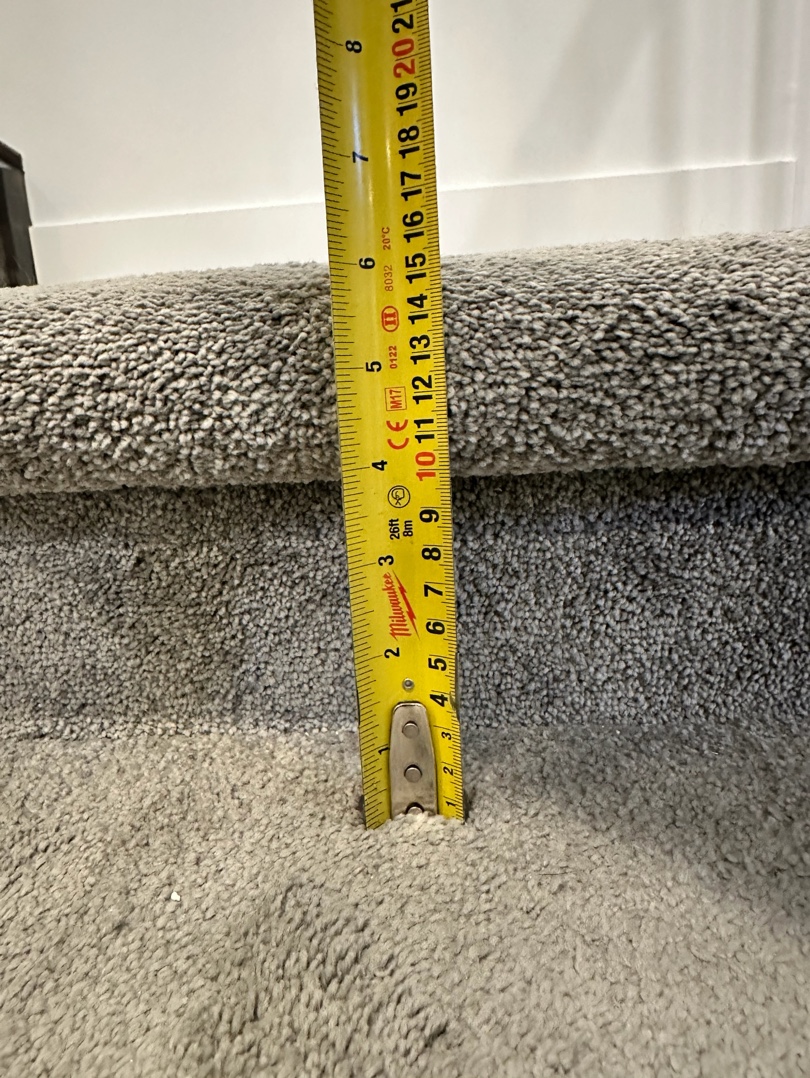

Basement Stairs :
🔎
Issue: Tripping Hazard
Action: Further Evaluate / Repair
Notes: Attention – Issue(s) should be addressed in a timely manner. Further consequences may occur if not rectified.
Action: Further Evaluate / Repair
Notes: Attention – Issue(s) should be addressed in a timely manner. Further consequences may occur if not rectified.
Roof
11
| R BACK TO SUMMARY |
|
Report Legend
Explains reports symbols.
|
|
|

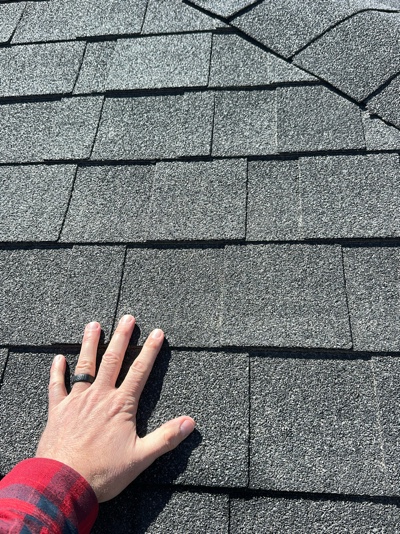

Roof Observations - (1)
Reviewing condition, flashings, drainage flow, debris, & intrusion points. See also Insurance Section.
Garage roof overall
⠀ ⠀
|
|
|

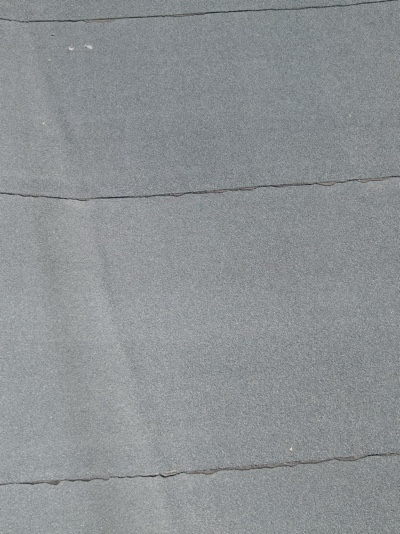

Torch Down Roof Condition
⠀ ⠀ ⠀
|
|
|
Gutter(s) -Trough(s)
Inspected for debris, drainage flow, interior condition and visible standing water.

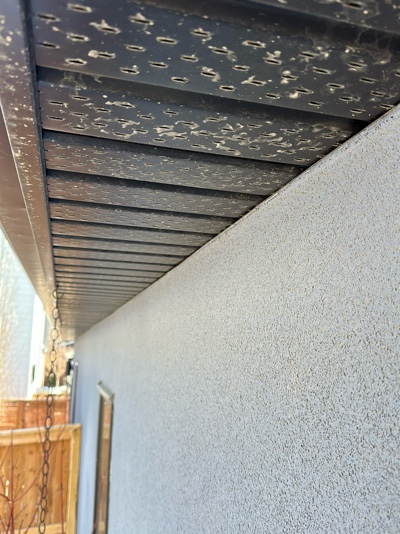

Soffit(s) & Fascia(s)
Attn. given to ventilation openings, attachment, clearance & visible staining or obstructions.
|
Roof
+
12
|

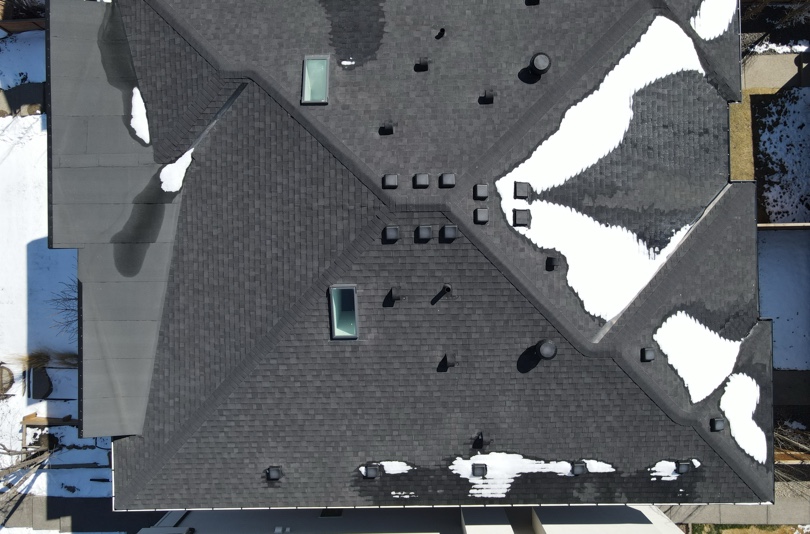

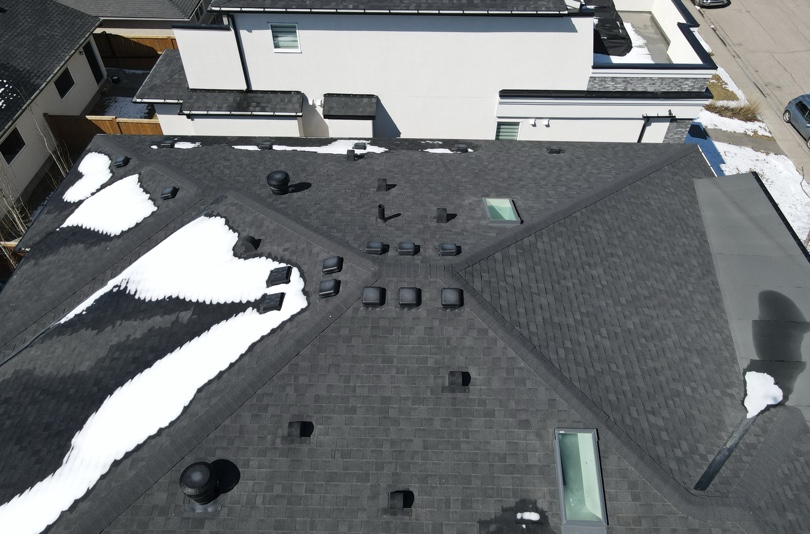

Overview Roof / Property
Survey performed to visually document roof coverings & associated components.This includes material condition, install, flashing, penetrations, drainage paths, & anomalies. See also Insurance Section.
|
|
|
Overview Roof (2)
⠀
|
|
|
Overview Roof (3)
⠀
|
|
|

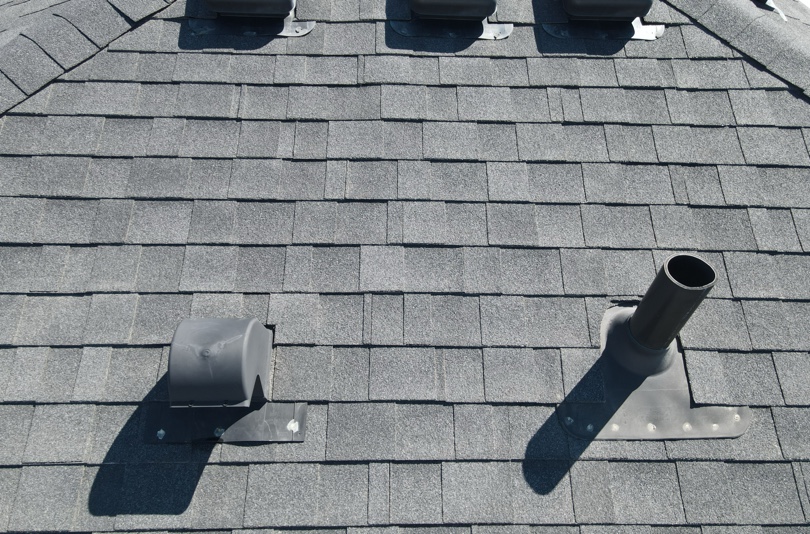

Overview Roof Utilitie(s)
Visually inspected for secure mounting, proper sealing, venting, clearances, and signs of damage, leakage, or improper installation.
|
|
Roof
+
13
|

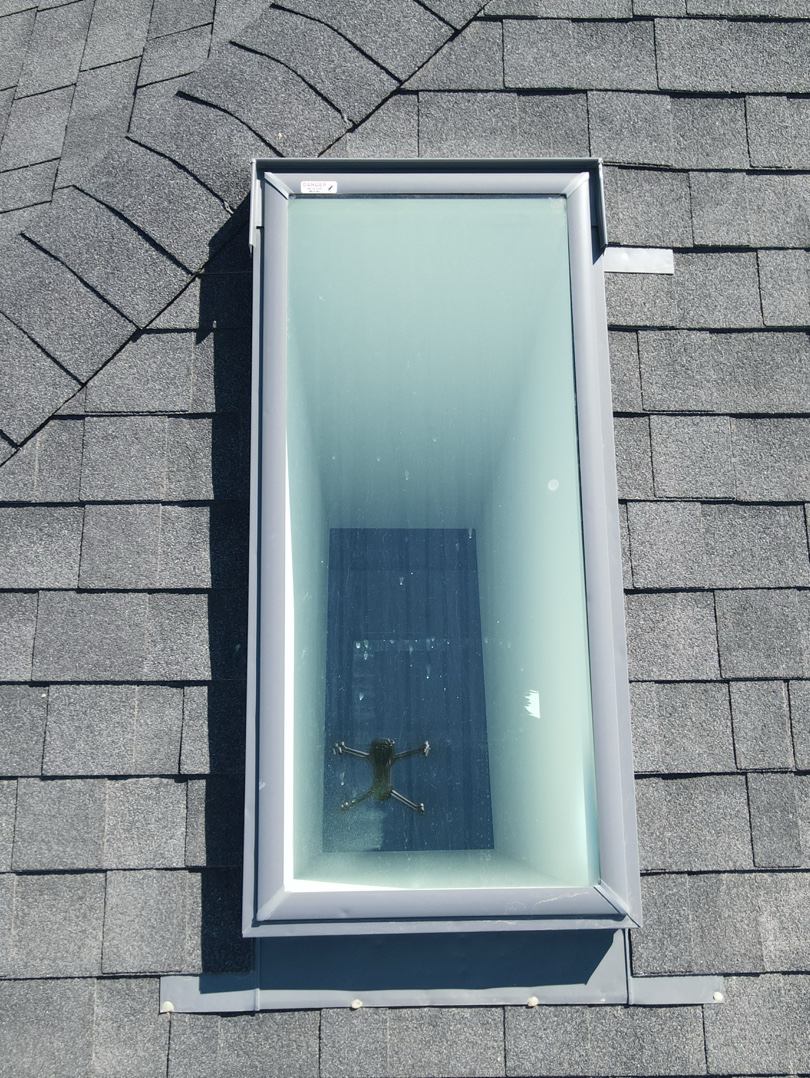

Skylight(s)
Inspected for glass condition, frame integrity, seals, flashing, and signs of leaks or water intrusion.
|
|
|
The Skylight Baseline
Skylight – Areas Inspected Skylight components are reviewed for presence, overall condition, and any visible signs of damage or deterioration where accessible. This includes the glazing, frame, flashing, seals, and any operable mechanisms or screens. Accessible areas are checked for leaks, cracks, condensation, or signs of water intrusion or structural concerns. The inspection is limited to observable conditions without removing finishes, disassembling components, or conducting internal structural assessments. |
|
Roof
+
14
|

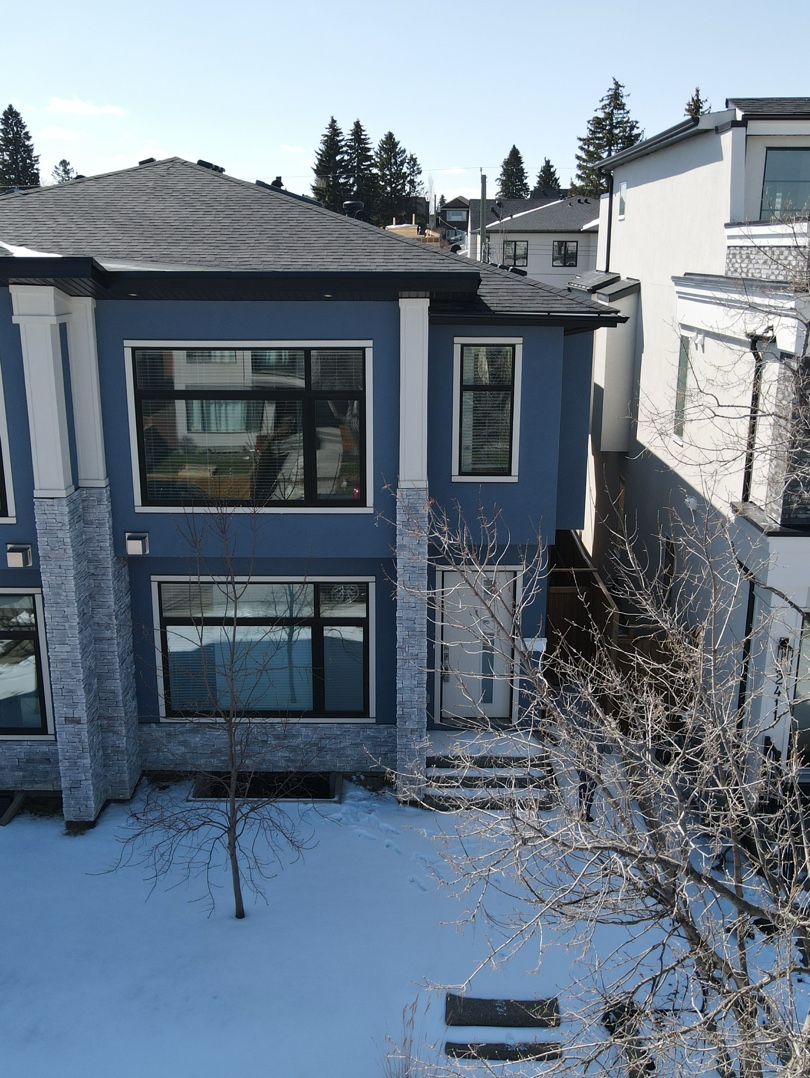

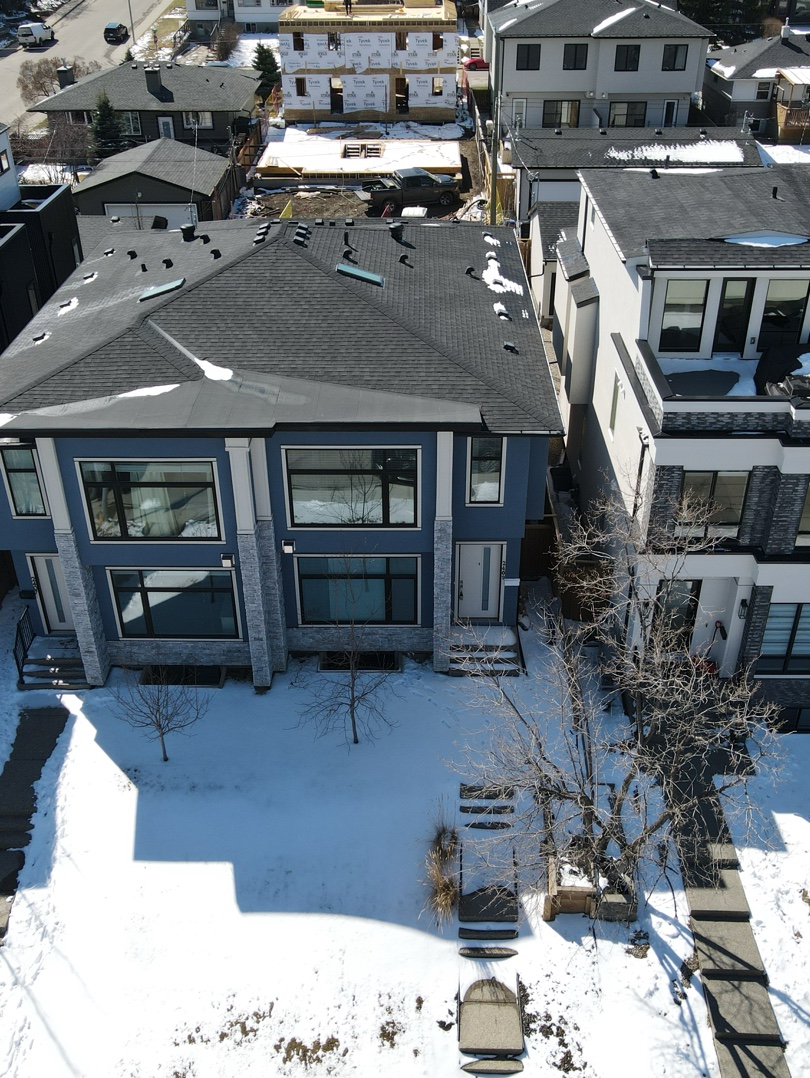

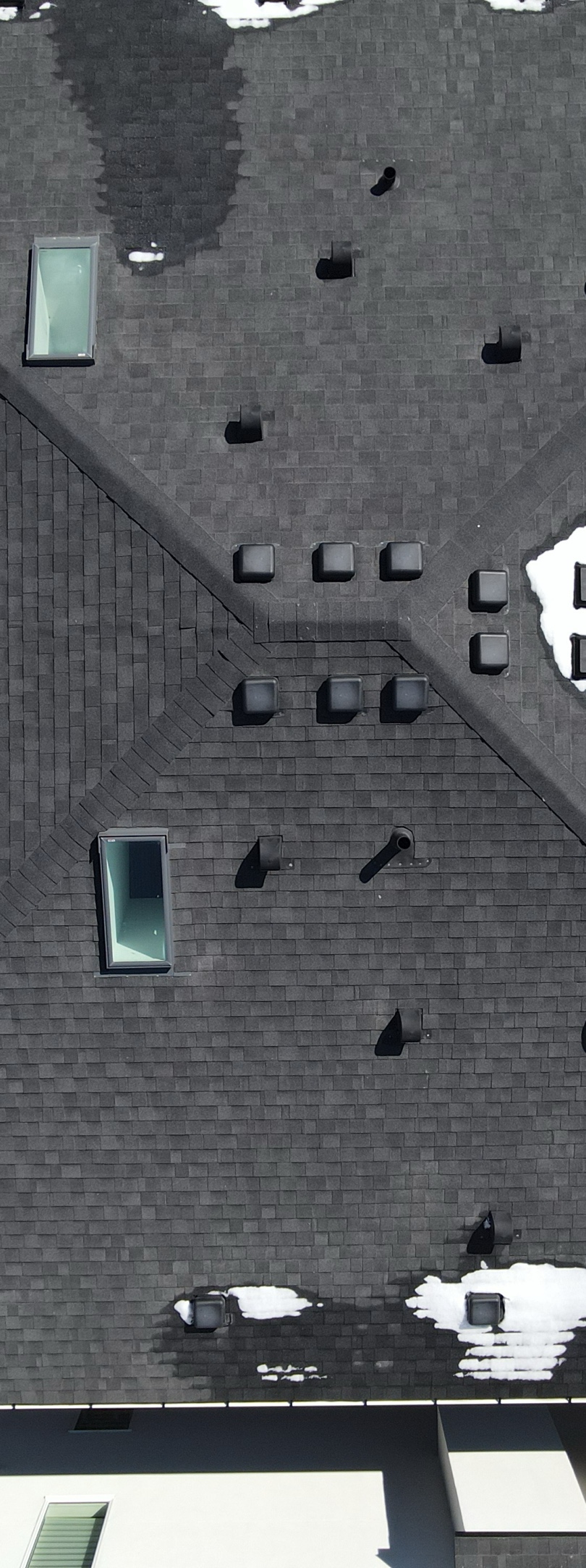

Gram-Shot
We’ve included a couple additional drone shots to provide a broader perspective of the property and its surroundings. These images offer a unique vantage point, showcasing the property’s placement within the neighborhood, nearby features, and the overall landscape.
|
|
|
Gram-Shot ⭐️
❤️
|
|
Roof
+
15
|
|
|
Roof
+
16
|
The Roof Baseline O.W.L
𝗥𝗼𝗼𝗳 – 𝗔𝗿𝗲𝗮𝘀 𝗜𝗻𝘀𝗽𝗲𝗰𝘁𝗲𝗱Roof components are reviewed for presence, general condition, visible damage, and basic performance characteristics where applicable. This includes commonly accessible roofing materials, flashings, roof penetrations, drainage features, and visible edges and transitions. The review focuses on observable conditions from accessible vantage points and does not include destructive testing or prediction of remaining service life. |
|
Exterior
17
| E BACK TO SUMMARY |
|
Report Legend
Explains reports symbols.
|
|
|

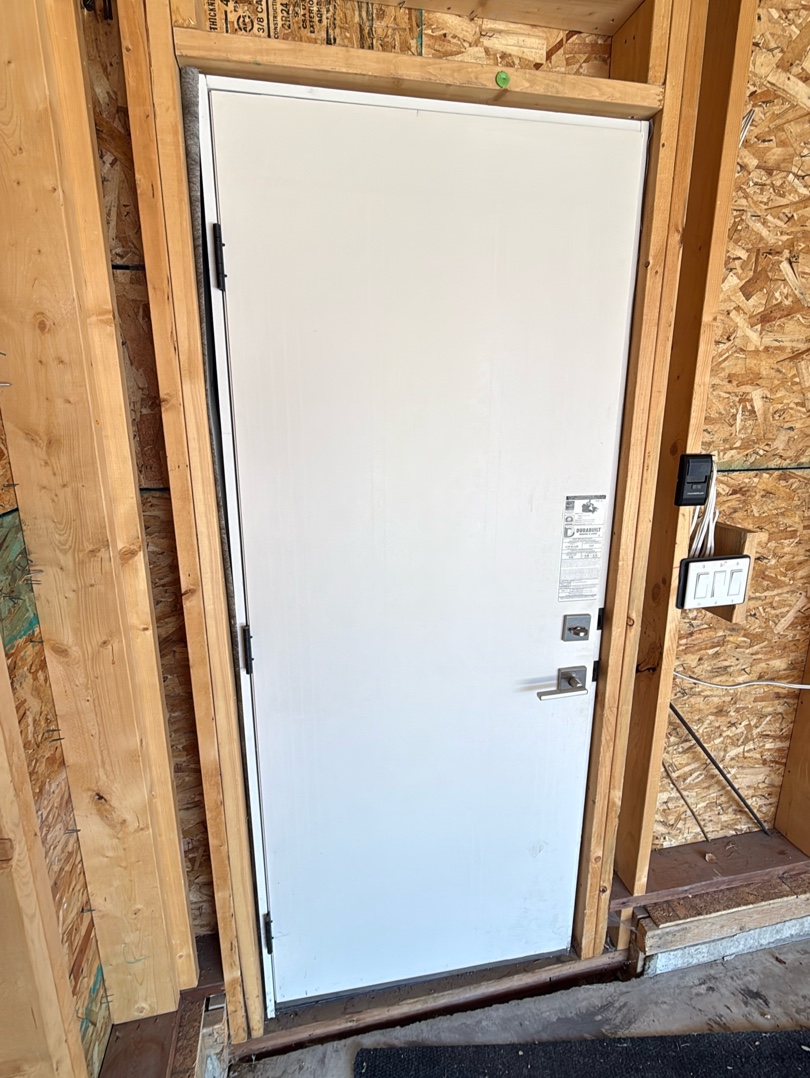

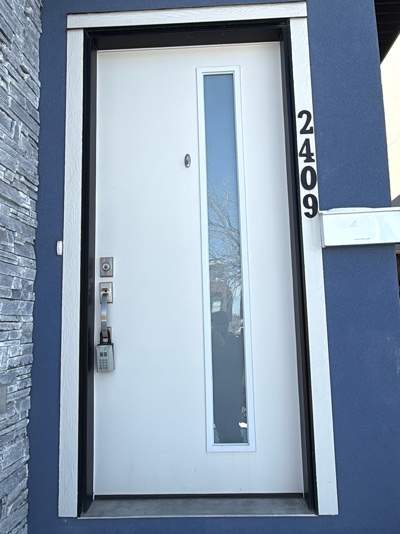

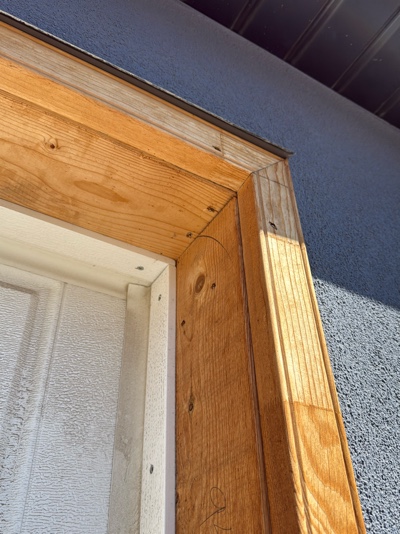

Exterior Entry Door(s)
Inspected for condition, glazing, sealing, flashing, alignment & operation.
Window(s) & Trim-Casing
Reviewed for glazing, condition, cracking, flashing, gaps & sealant deterioration.
|
|
|

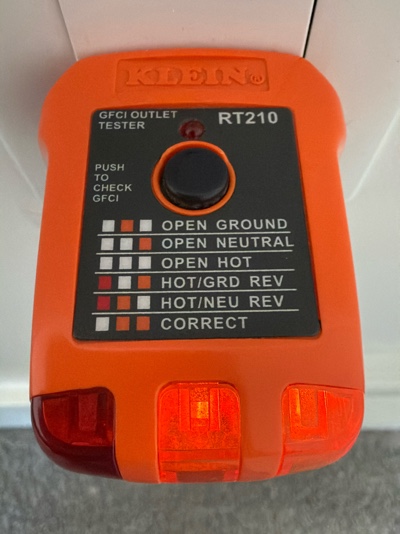

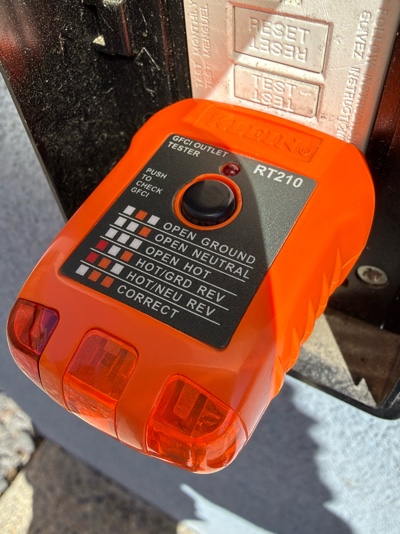

Exterior Outlet(s).
Inspected for safety, GFCI presence (using a standard plug tester.)

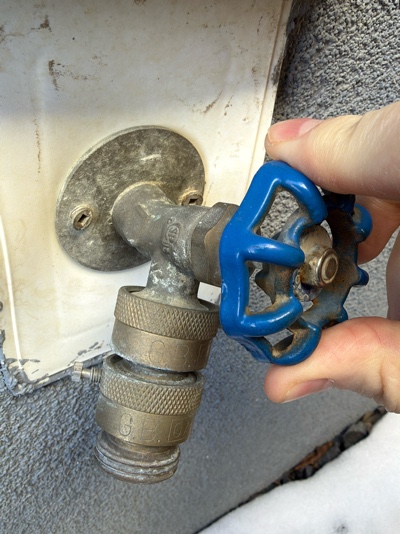

Exterior Faucet(s)
Inspected for location, flashings, sealant, operability, anti-siphon & leakage.
|
|
|

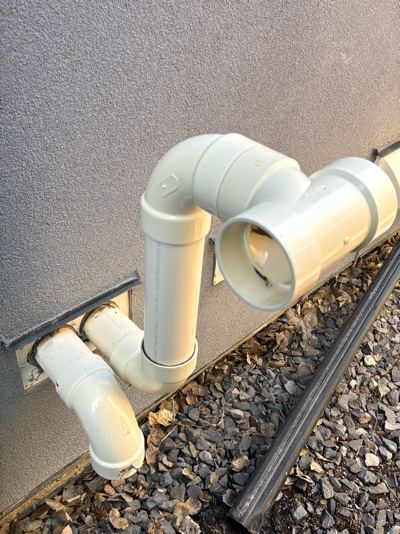

HVAC Utility Vent(s)
Inspected for installation, fittings, clearances, penetrations & sealant condition.

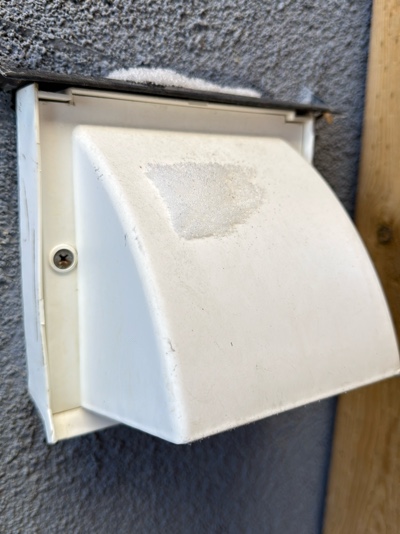

Additional Vent(s)
⠀⠀⠀⠀⠀⠀⠀⠀
|
Exterior
+
18
|

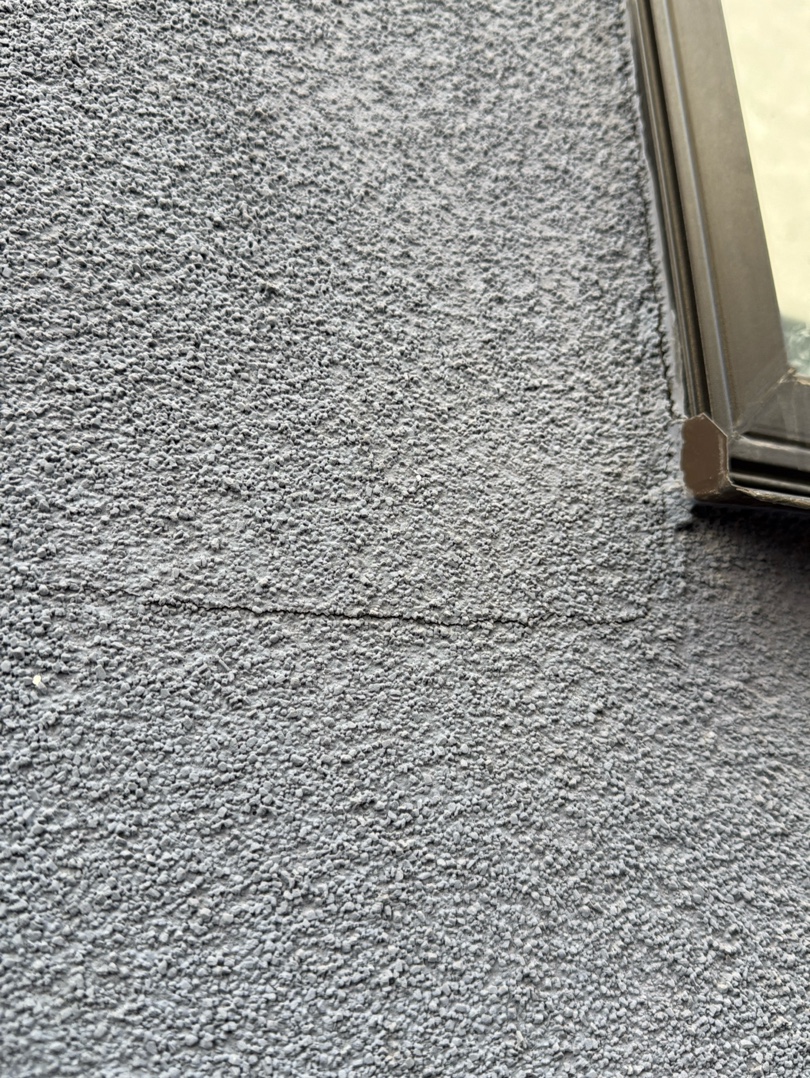

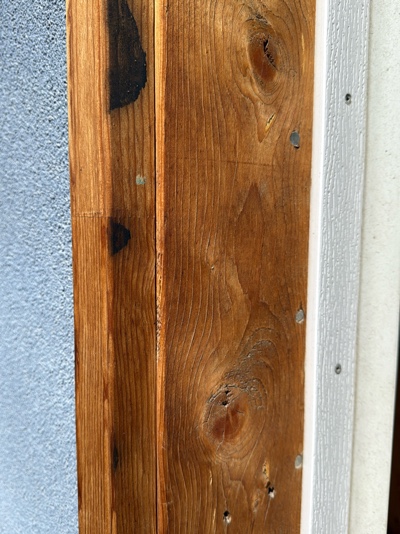

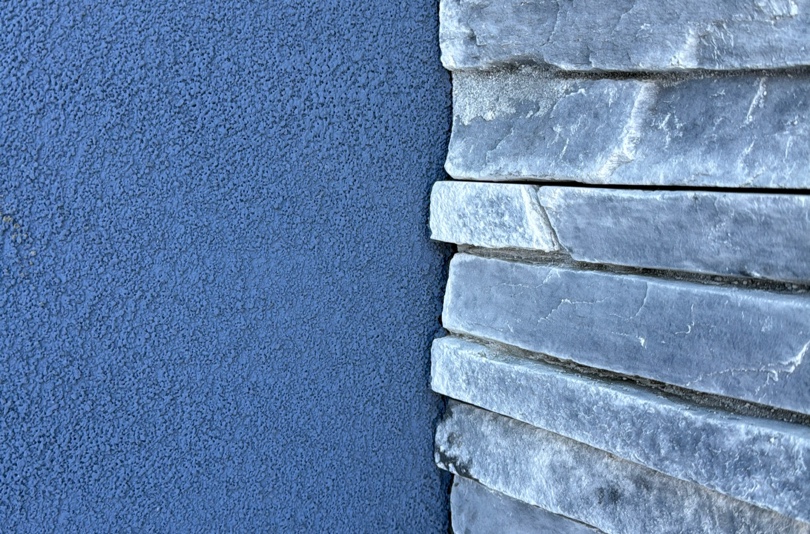

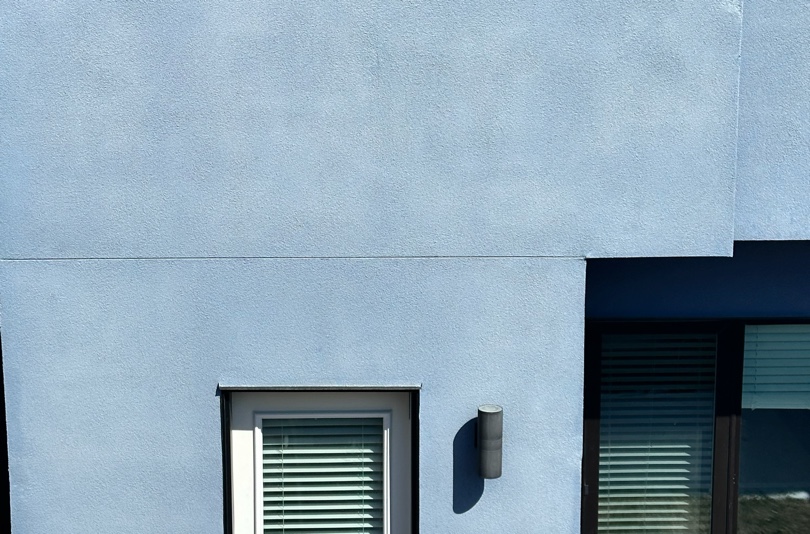

Cladding / Material(s)
Inspected for cracks, gaps, clearance from grade, installation & surface deterioration. See also Insurance Section.
|
|
|
Foundation / Structure
Inspected for flaking, cracking, displacement, moisture indicators & visible movement.
|
|
|

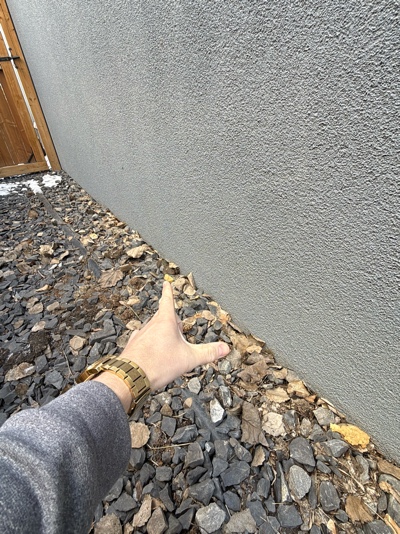

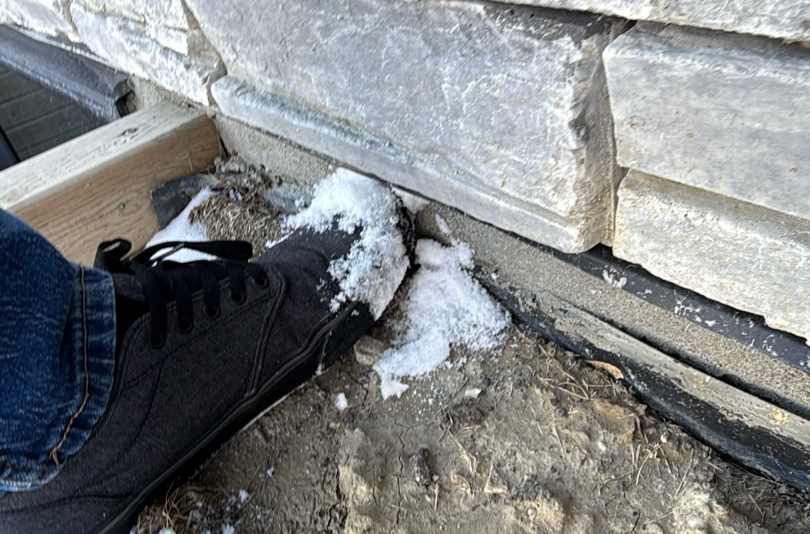

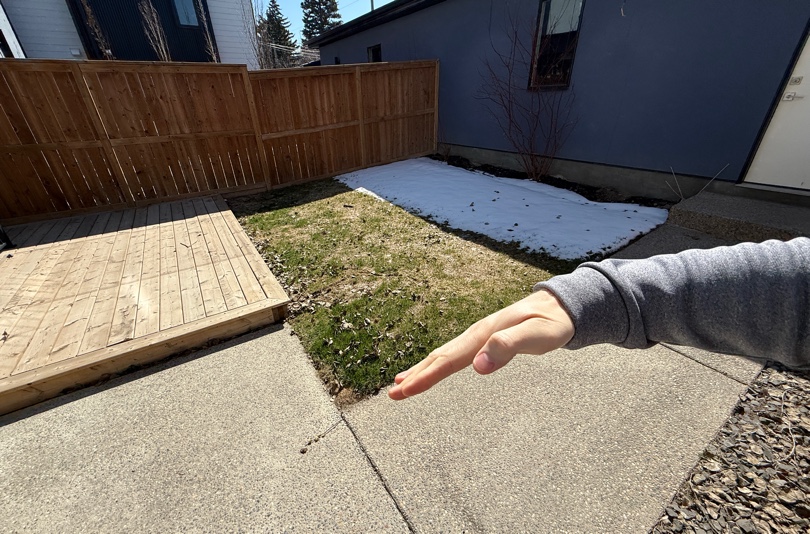

⚠️ SLOPE & Grade Management
Proper grading should slope away from the foundation, not remain flat or create negative slope that directs water toward the property. Watch for heaving, settling, and high or low spots that can trap moisture near walls. Ensure downspouts discharge well away from the structure and that gutters are level and draining correctly. Poor alignment or overflow can erode soil over time, increasing the risk of moisture intrusion and foundation movement.
|
|
Exterior
+
19
|
Drainage System(s)
Inspected for discharge location, flow, secure connections, blockage, slope & conditions directing water away from the structure.
|
|
|

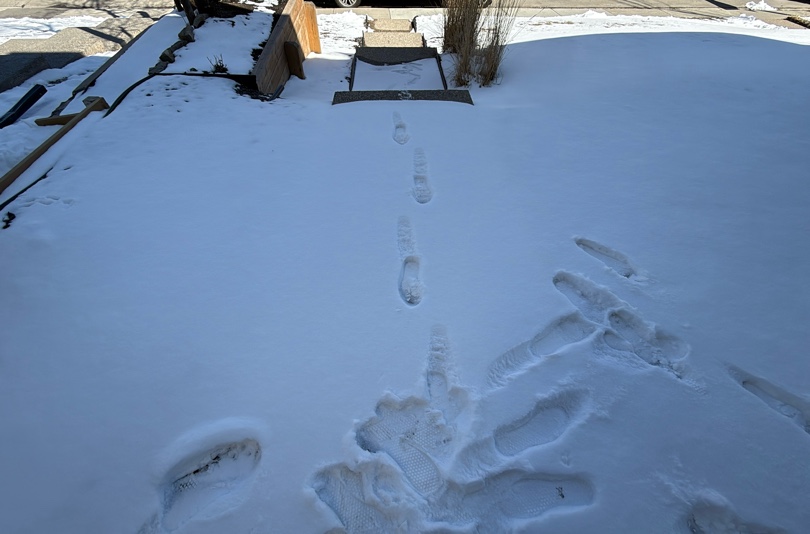

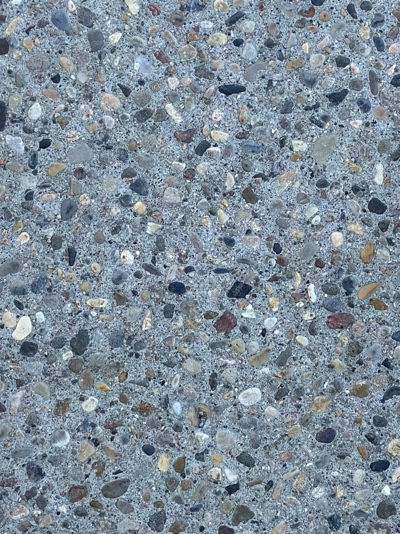

Exterior Pathway(s)
Weather Related: Inspection was limited due to weather conditions that prevented full access or accurate evaluation.. Not Inspected
|
|
|
|
|
|
Grading & Drainage Baseline
Inspection of grading, pathways, flatwork, and drainage focused on visible slope, surface condition, and water flow around the structure. Limited to observable conditions at time of inspection.
|
|
Exterior
+
20
|
|
Focus Feature Page
These are photos related to the same component or system.

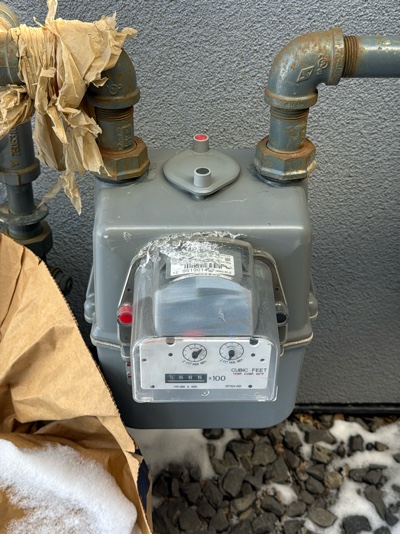

Gas Meter(s) ⠀⠀
Observed for secure mounting, clearance, corrosion, regulator condition & visible gas line connections.
|
|
|

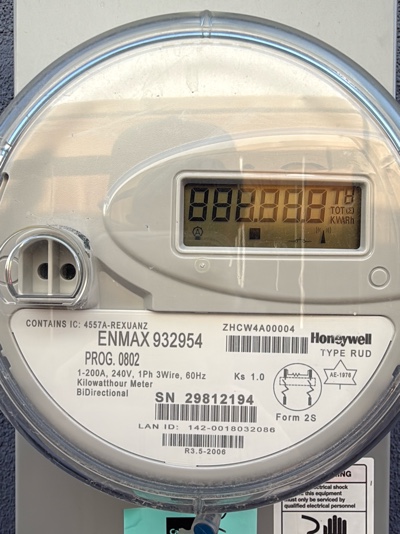

Electrical Service Meter(s)
Observed for presence, secure mounting, cover condition, clearances, conduit connections & visible service wiring concerns.

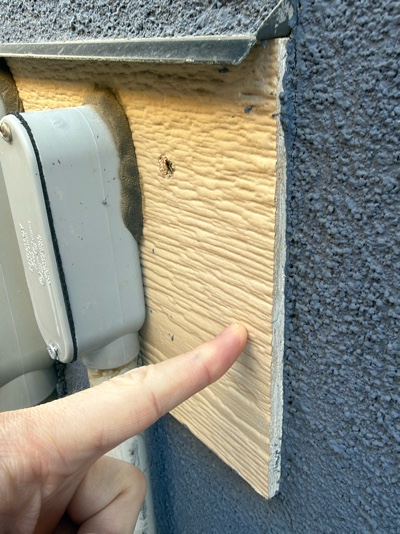

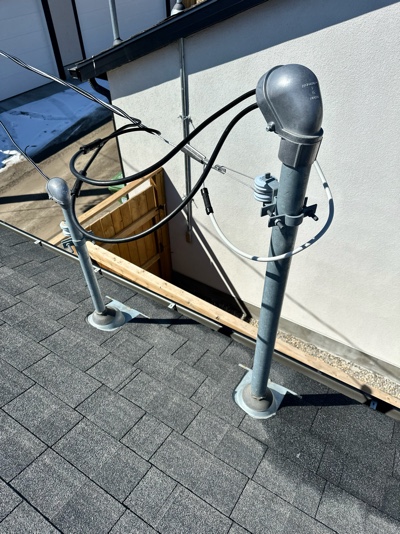

Electrical Entry.
Observations include service attachment, drip loop, clearance & visible damage or corrosion
|
|
Power Down, Save Up.
To boost energy efficiency, switch to LED lighting and turn off lights when not in use. Use ceiling fans and set thermostats a few degrees higher in summer and lower in winter. Unplug electronics when not in use and choose ENERGY STAR® appliances. Lower your water heater to 120°F and insulate hot water pipes. Keep filters clean and schedule regular maintenance on heating and cooling systems.
|
|
Exterior
+
21
|
|
Context / Supporting Photo
|
|
|
Context / Supporting Photo

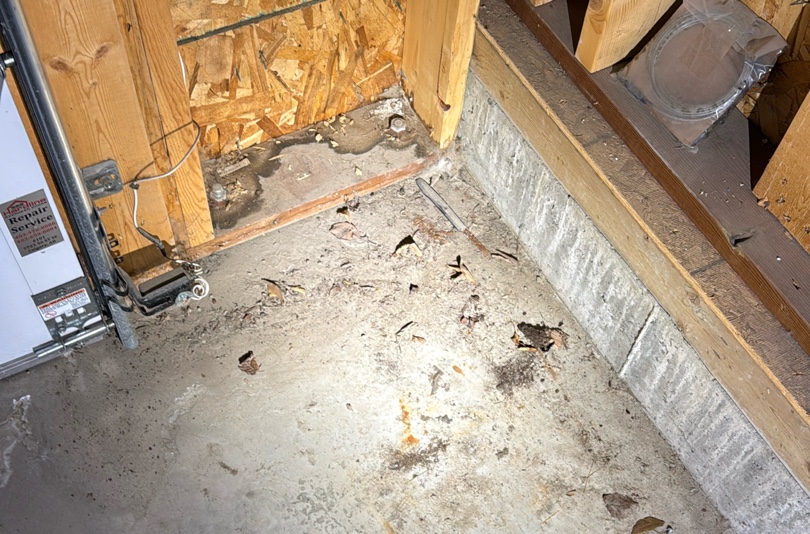

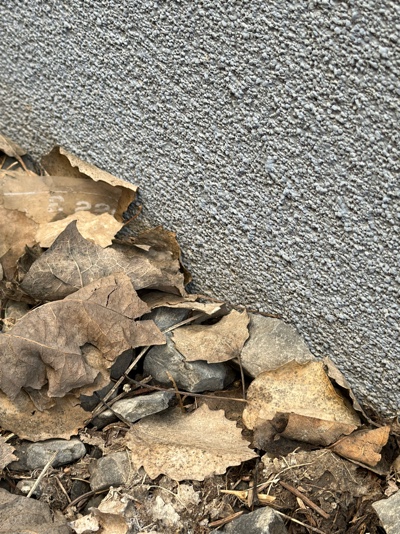

The organic debris (leaves) inside needs to be cleaned out to help with proper drainage.
|
|
|
Context / Supporting Photo
|
|
|
Context / Supporting Photo
|
Exterior
22
|
Extra Photos
|
|
|
|
|
|
|
|
|
|
|
Exterior
23
|
|
|
|
Context / Supporting Photo
|
|
Exterior
24
|
|
|
|
Context / Supporting Photo
|
|
Exterior
+
25
|
⚠️ Exterior General Notes
1. Cladding: Visible fading, discoloration, and general wear from exposure.
|
|
Exterior
+
26
|
The Exterior Baseline
𝗘𝘅𝘁𝗲𝗿𝗶𝗼𝗿 – 𝗔𝗿𝗲𝗮𝘀 𝗜𝗻𝘀𝗽𝗲𝗰𝘁𝗲𝗱Exterior components and finishes are reviewed for presence, general condition, visible damage, and basic operation where applicable. This includes commonly accessible elements such as exterior walls and cladding, doors and windows, trim and sealants, decks, steps, railings, porches, balconies, and visible foundation surfaces. Drainage features, surface grading, and other exterior elements that may affect moisture management and overall performance are also visually reviewed where present. |
|
Garage
27
| G BACK TO SUMMARY |
|
Report Legend
Explains reports symbols.
|
|
|
Garage Overhead Door Motor(s)
Review focused on the support mount, basic operation, safety & visible indicators affecting function.

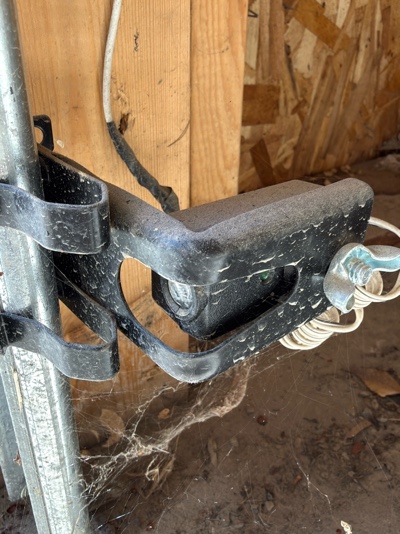

Garage Safety Track Sensor(s)
Observations included sensor presence, alignment, height & response during basic operational testing.
|
|

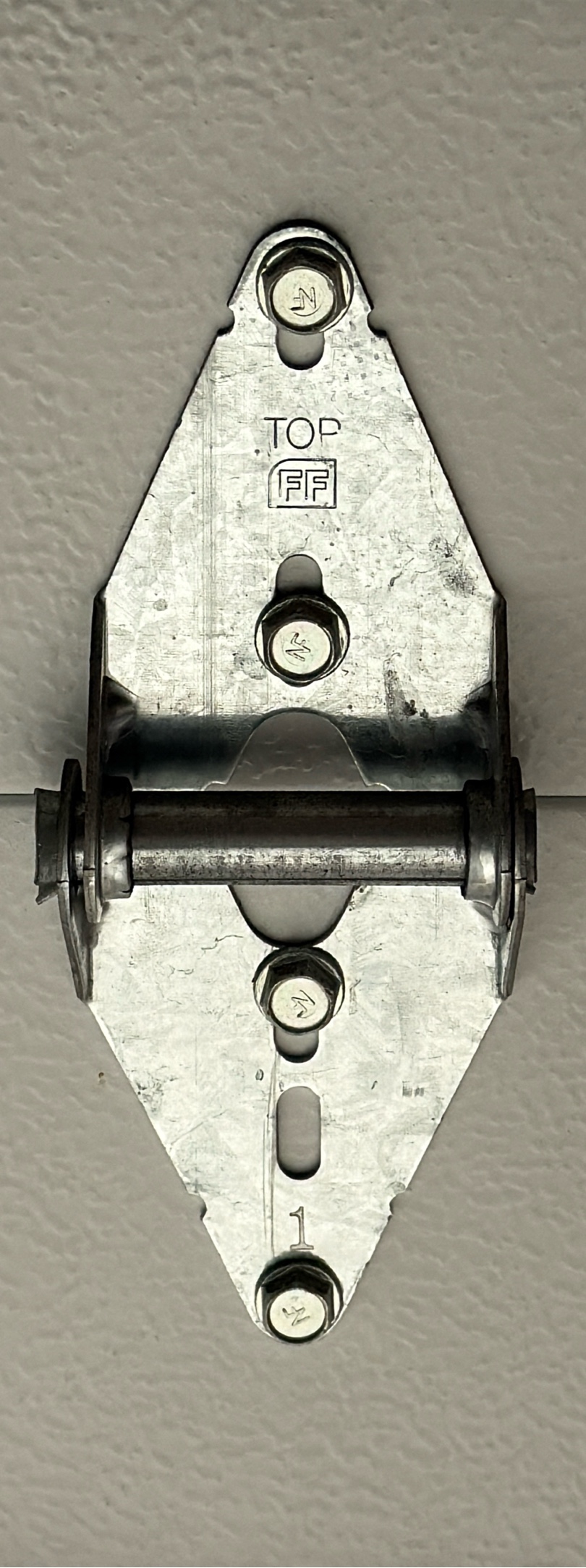

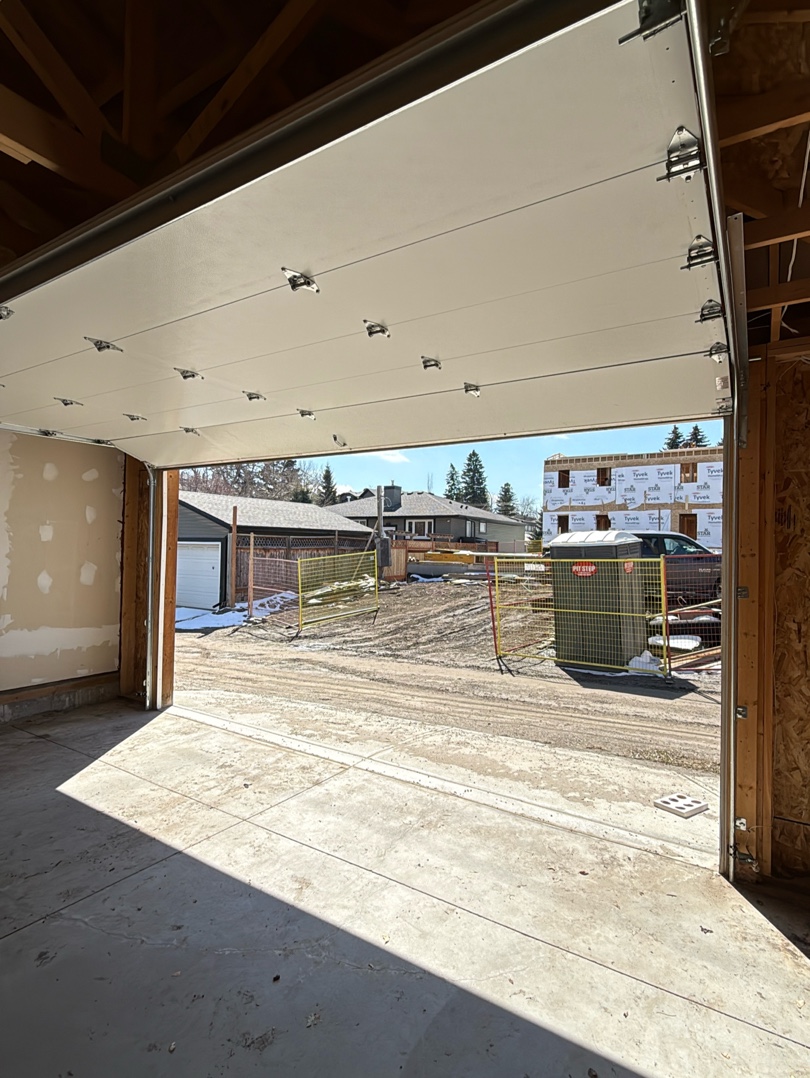

Garage Overhead Door(s)
Attention given to door panels, tracks, hardware, balance, & general operation. See also Insurance Section.
|
|
Garage
+
28
|
|
Context / Supporting Photo
|
|
|
Context / Supporting Photo
|
|
|

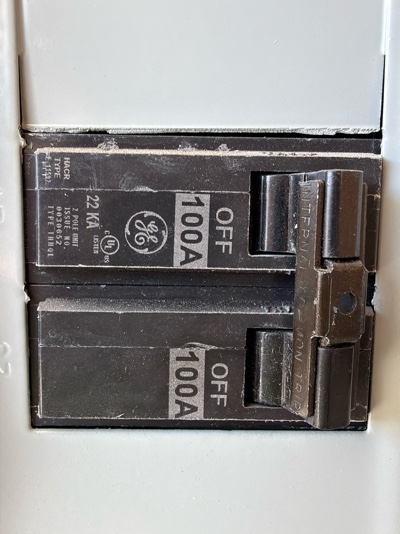

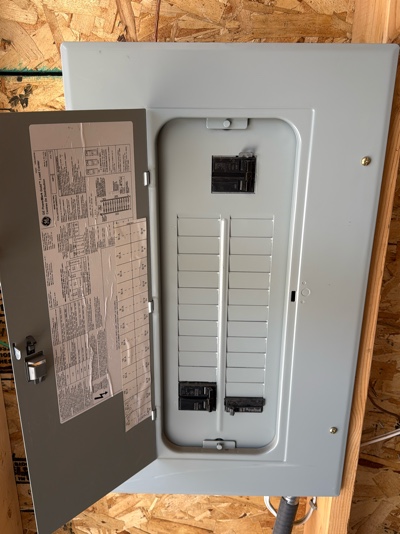

Garage Electrical Panel
100amp service noted in the garage.
Context / Supporting Photo
|
|
|
Context / Supporting Photo
|
Garage
29
|
|
|
|
Context / Supporting Photo
|
|
|
|
|
Garage
30
|
|
|
|
Context / Supporting Photo
|
|
Garage
+
31
|
⚠️ Garage General Notes

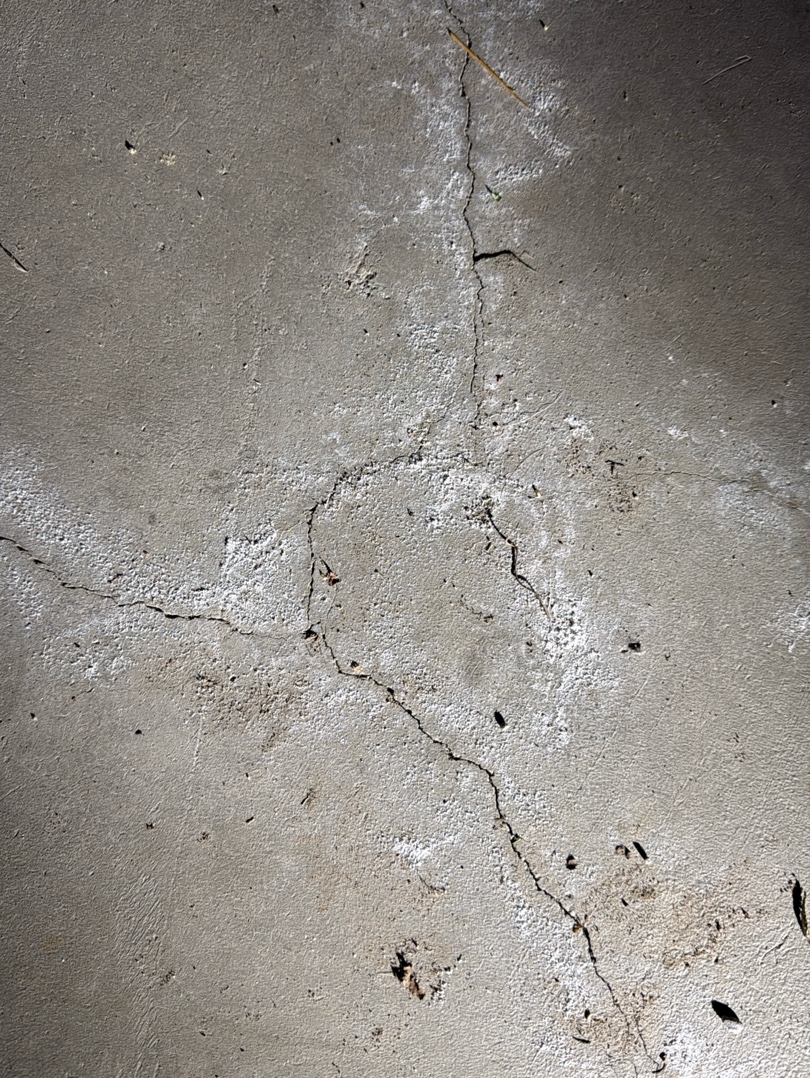

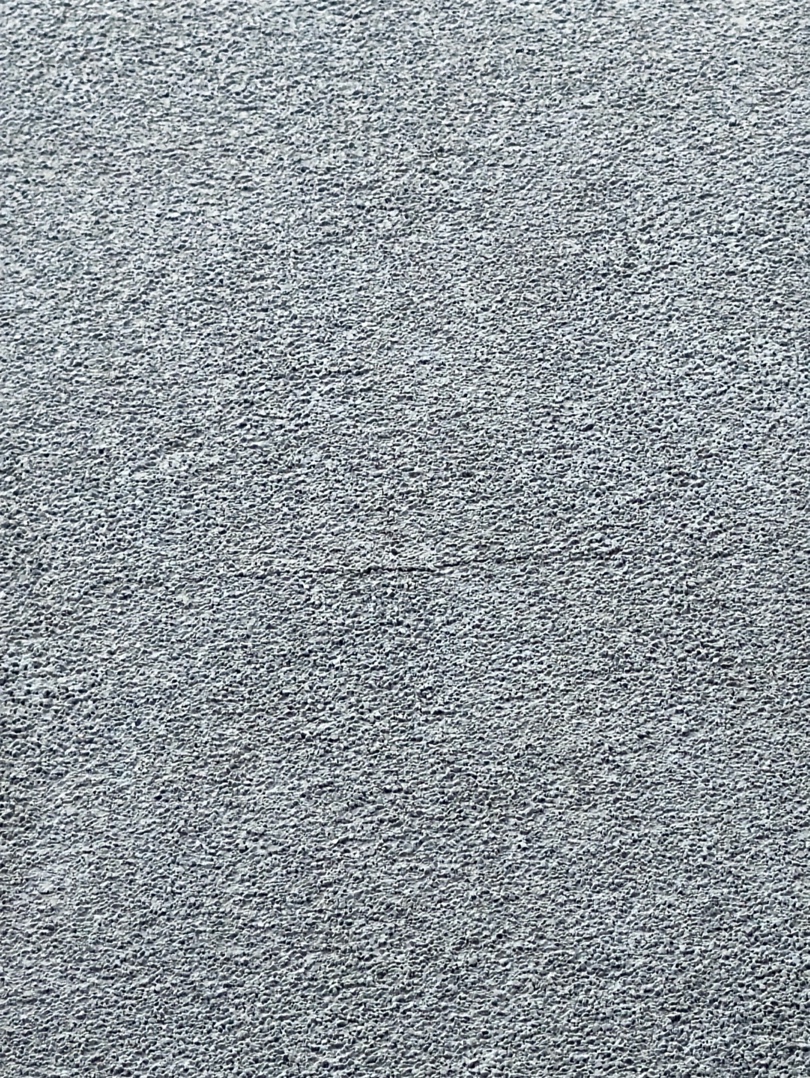

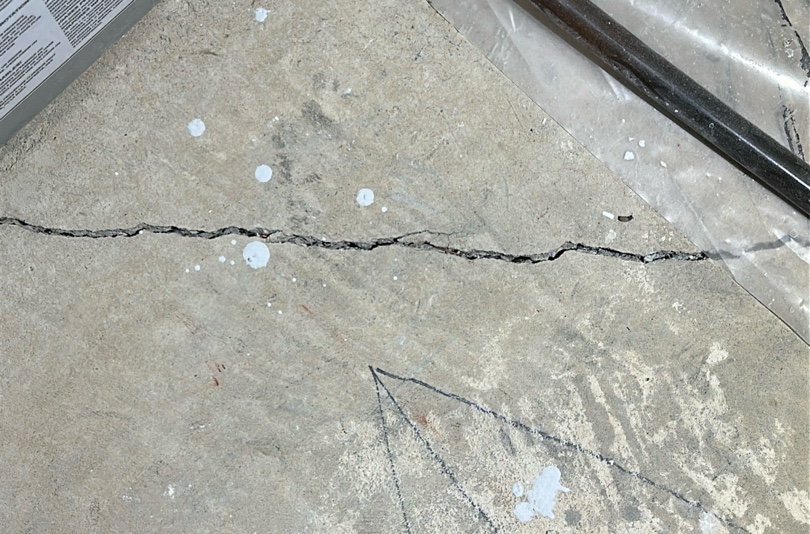

1. Slab: Surface discoloration and wear noted at garage floor consistent for age.
|
|
Garage
+
32
|
Garage Maintenance.
Learning how to maintain a residential garage door is key to operating it efficiently. A malfunction can prevent you from taking your car out of the garage when you want to. Regular maintenance twice a year can make such mishaps less likely. INFO: Visually inspect the door, perform safety tests, examine hardware for defects, service the chain or belt, service seals & springs, clean the garage door surface, replace batteries & bulbs, & Reduce friction between the door & the stop. Adjust the opening & closing speed.
|
|
|
The Garage Baseline
Components are reviewed for presence, general condition, and visible signs of damage or deterioration where accessible. This includes wall and ceiling finishes, visible framing, overhead door assemblies, fire separation elements, service doors, and accessible electrical components. Accessible areas are checked for moisture damage, staining, cracks, corrosion, pest activity, and improper storage or clearance to combustibles. The review is limited to observable conditions without operating door openers, moving stored items, or evaluating concealed structural, electrical, or fire-resistance assemblies.
|
|
Attic
33
| A BACK TO SUMMARY |
|
Report Legend
Explains reports symbols.
|
|
|

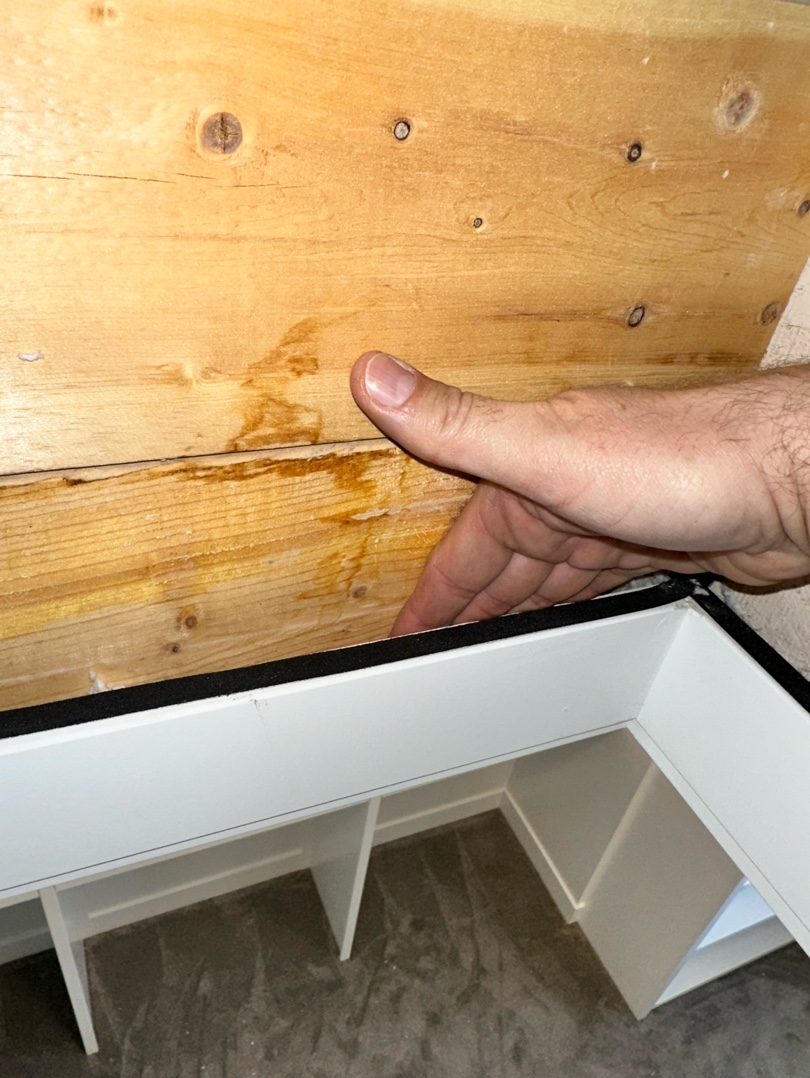

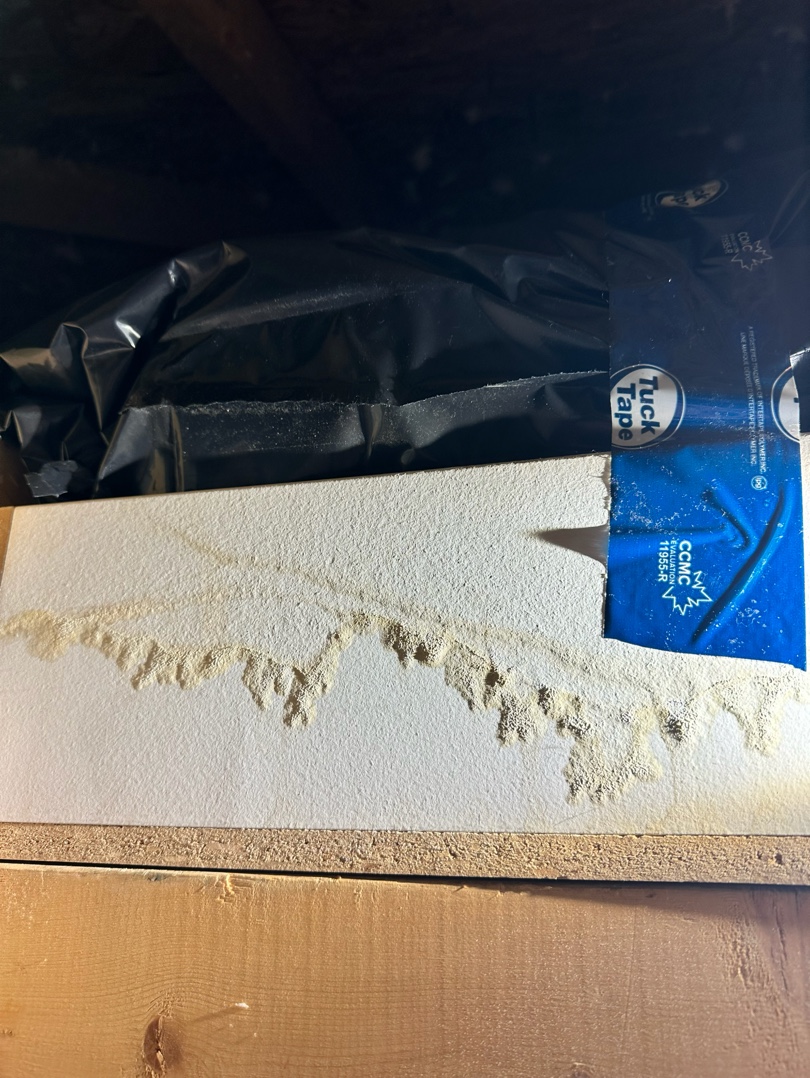

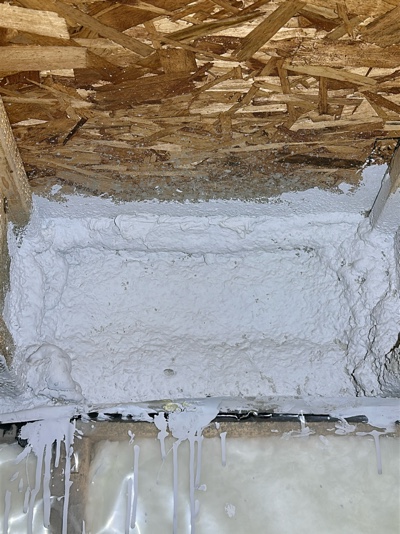

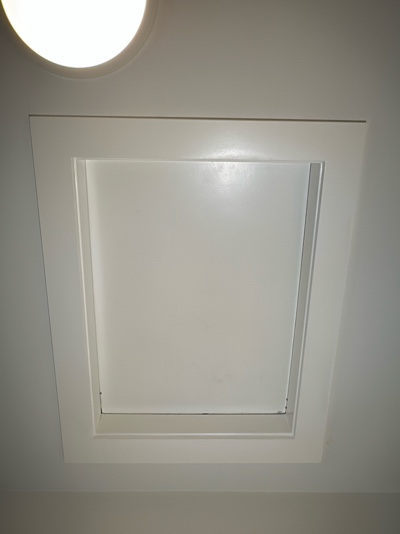

The Hatch (Scuttle) Entry
Visually inspected for insulation & signs of damage, gaps, or air leakage at the opening.

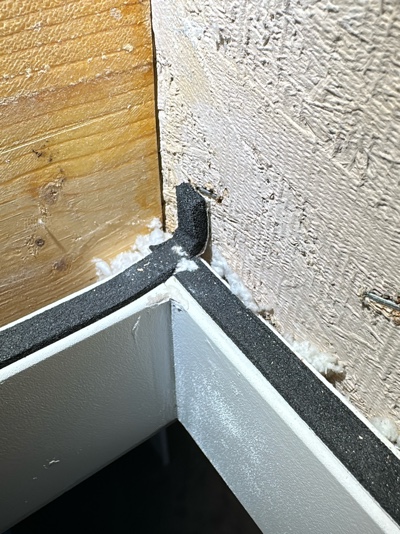

Attic Hatch Weatherstrip
|
|

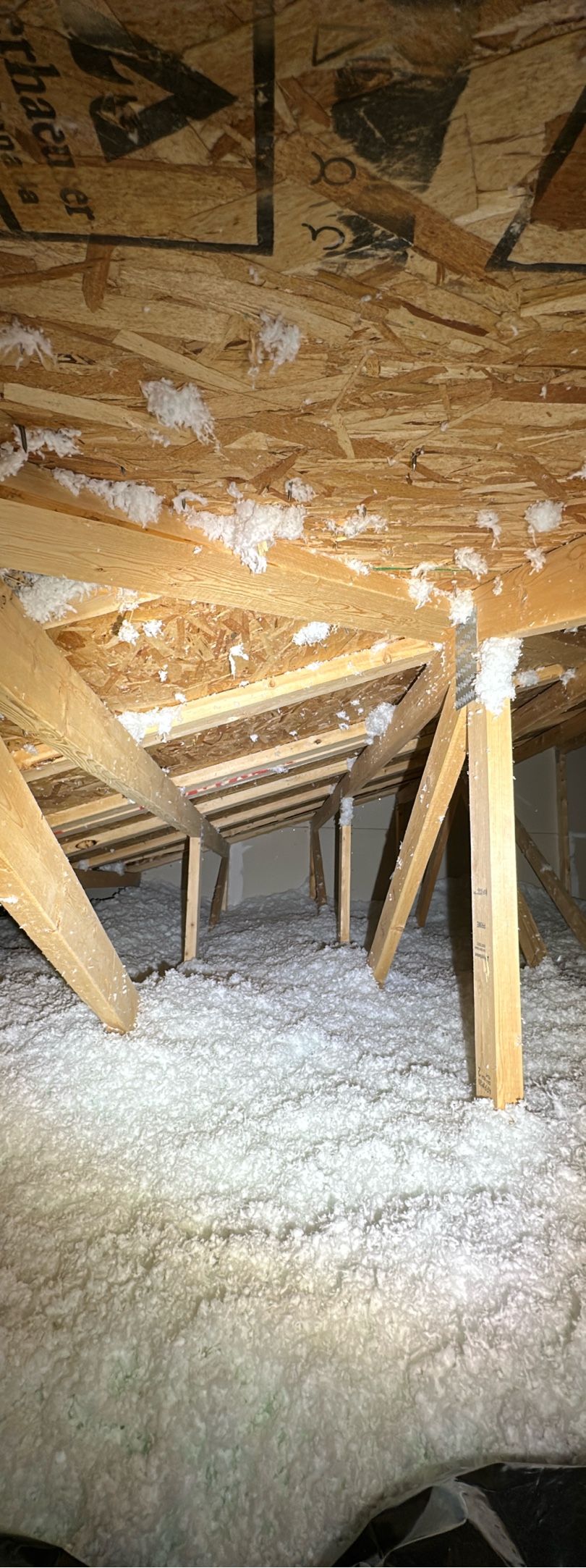

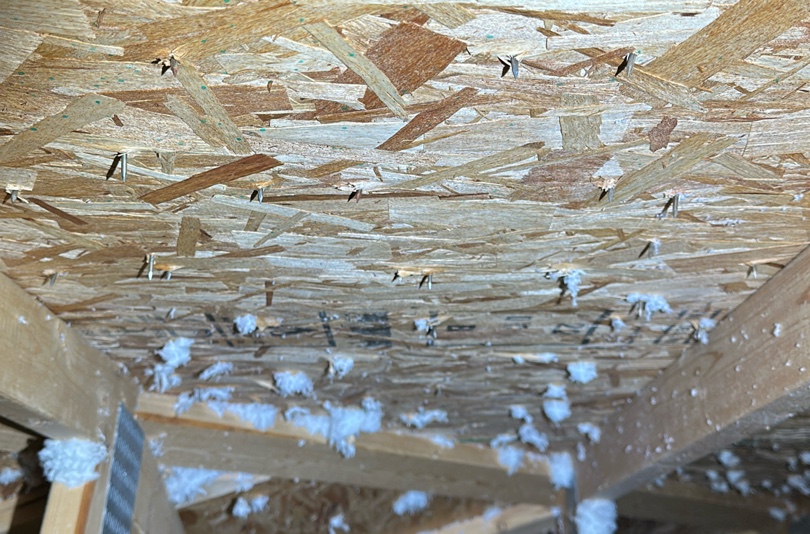

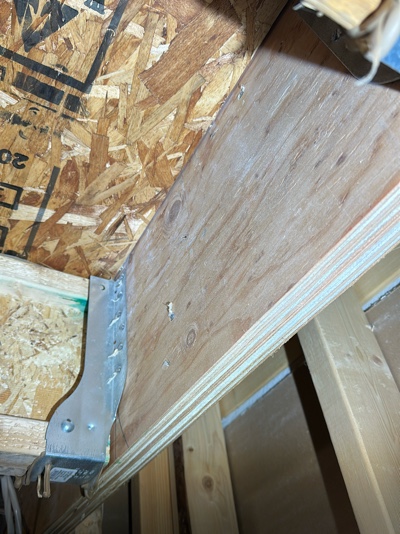

Sheathing / Roof Decking
Observations include material type, fastening pattern, visible sagging or deflection, moisture staining, delam & signs of past or active deterioration.
|
|
|

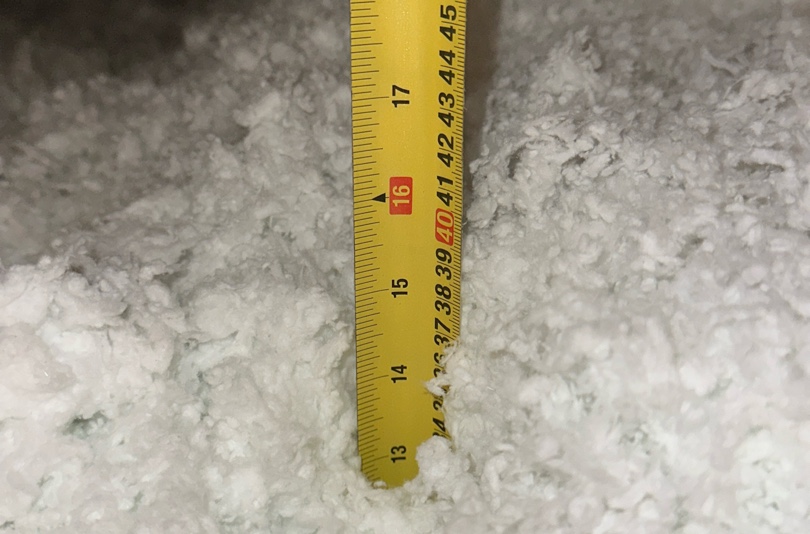

Insulation - Depth
Observations included insulation depth, vapour barrier presence, coverage consistency, & visible gaps. See also Insurance Section.
|
|
Attic
34
|
|
|
|
Support Photo
|
|
Attic
+
35
|
|
|
|
Support Photo
|
|
Attic
+
36
|
⚠️ Attic General Notes.
1. Structure: Surface variation as seen from hatch entry. Typical for age of property.
|
|
Attic
+
37
|
The Crown’
The roof structure of a home is composed of several critical elements. Rafters and trusses, made from wood or metal, form the skeleton of the roof, supporting the outer layers and shaping the roof’s slope and style. Sheathing, typically plywood or OSB, is attached to the rafters/trusses, providing a base for roofing materials. Underlayment, a water-resistant layer, is placed over the sheathing for added protection against moisture. The roof covering, which can be shingles, tiles, metal, or other materials, serves as the outermost barrier against weather elements. Flashing is used around vents, chimneys, and valleys to prevent leaks, and gutters are installed to channel water away from the structure.
|
|
|
The Attic Baseline
Components are reviewed for presence, general condition, and visible signs of damage or deterioration where accessible. This includes visible roof framing, sheathing, insulation, ventilation components, attic access, and observable wiring or mechanical penetrations. Accessible areas are checked for moisture staining, microbial growth, pest activity, displaced or compressed insulation, and improper ventilation. The review is limited to observable conditions without moving insulation, dismantling components, or evaluating concealed framing, wiring, or roof coverings.
|
|
Interior
38
| I BACK TO SUMMARY |
|
Report Legend
Explains reports symbols.
|
|
|

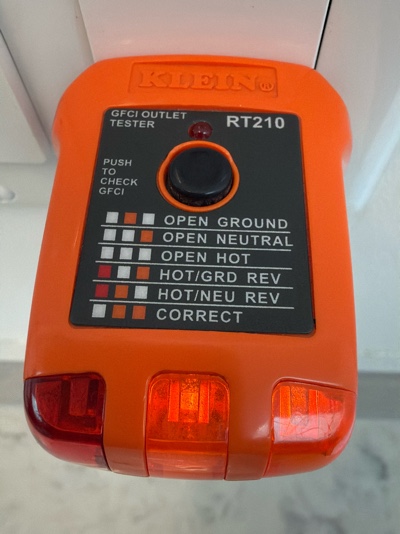

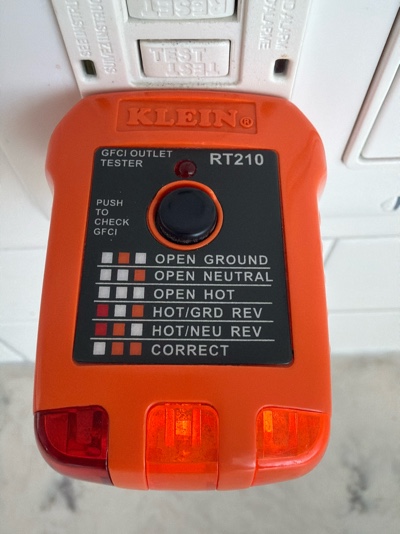

Outlet(s)
Inspected for operation, secure mounting, polarity, grounding, cover condition & visible wiring concerns.

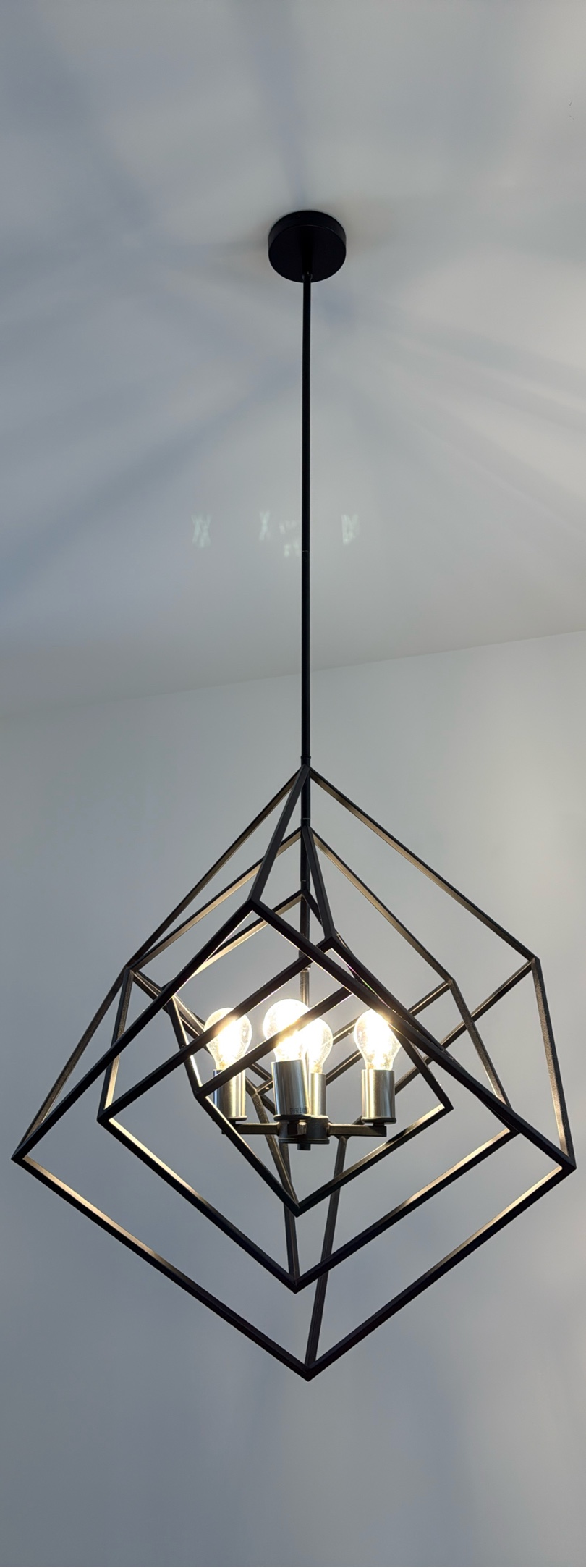

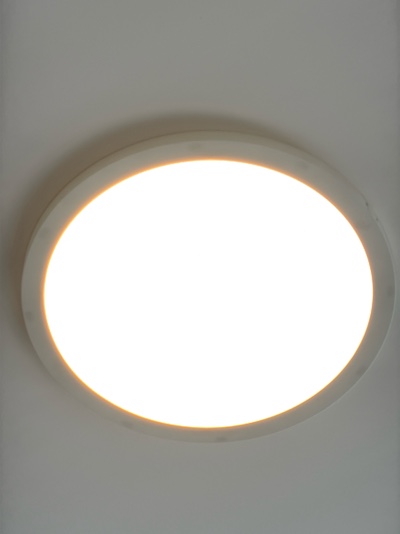

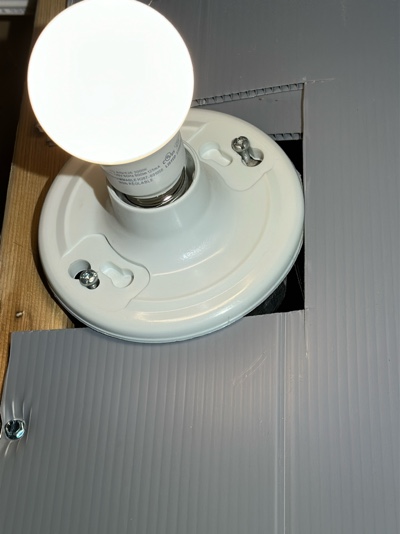

Interior Light(s)
Inspected for operation using normal switching procedures & visible deficiencies.
|
|
|

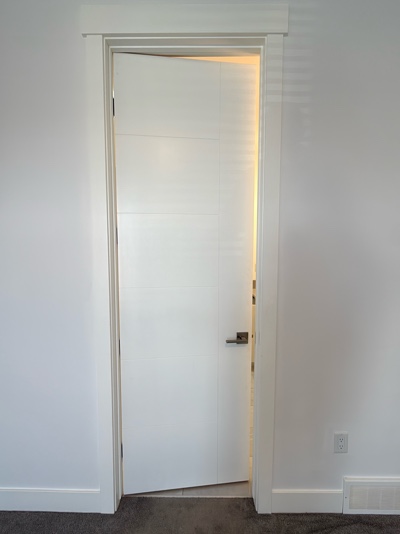

Interior Door(s) ⠀
Attention given to alignment, operation, hardware, hinges, latching, & indicators affecting use.

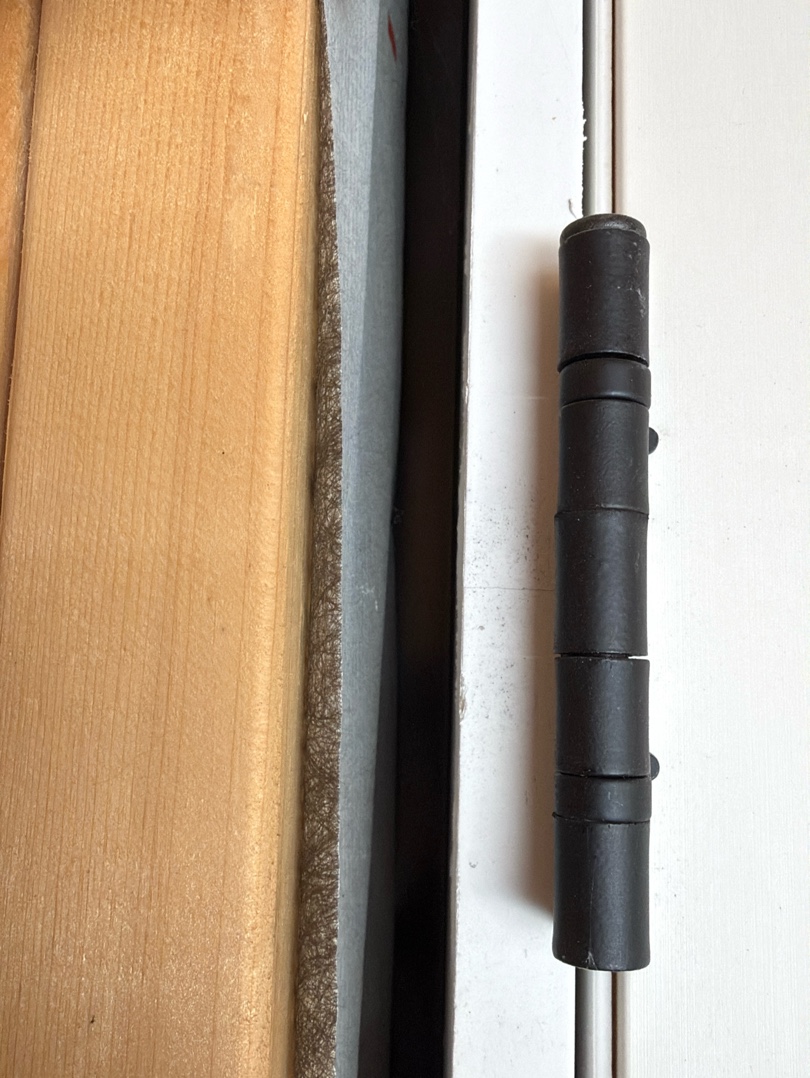

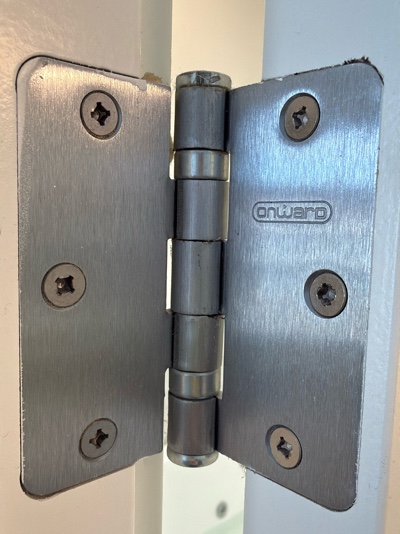

Door Hinge.
|
|
|

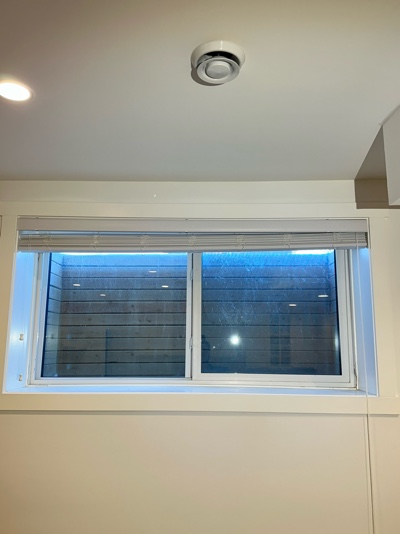

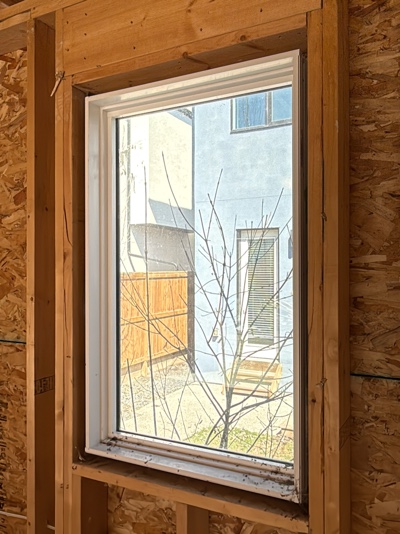

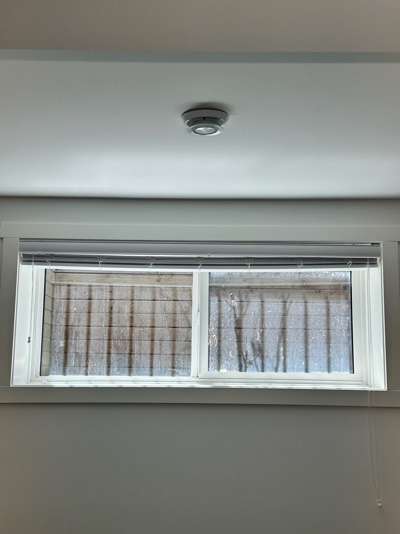

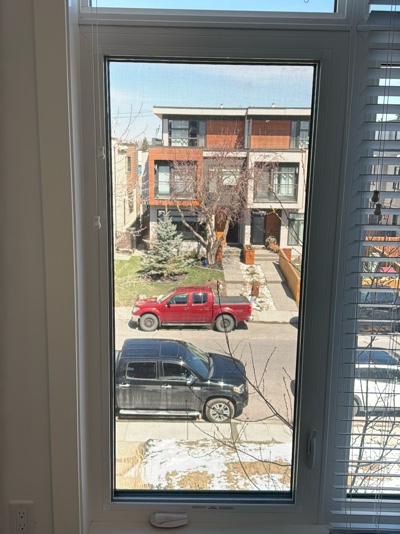

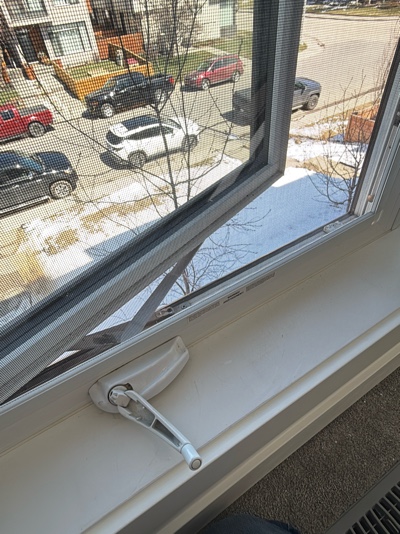

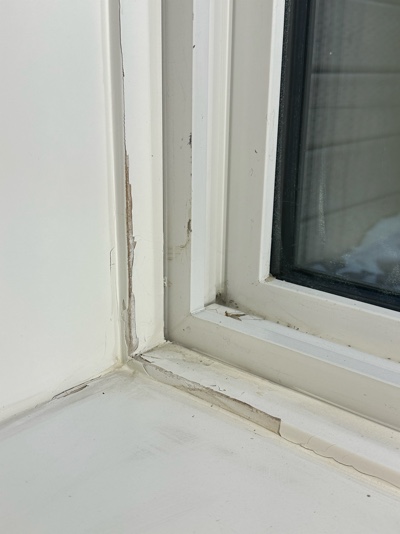

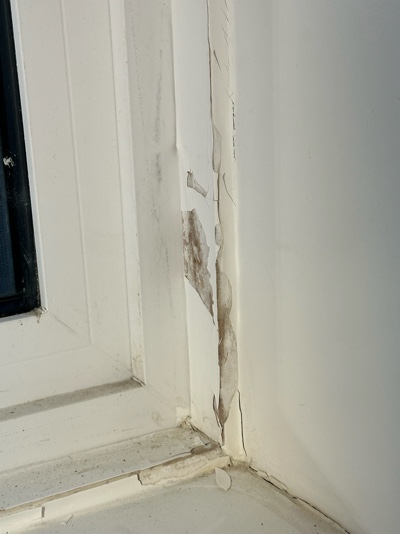

Interior Window(s) ⠀
Observations included glazing, operation, seals, & conditions affecting performance.
Window(s) & Operation
Review for opening, closing, latching, seals, weep holes & screens. See also Insurance Section.
|
Interior
+
39
|

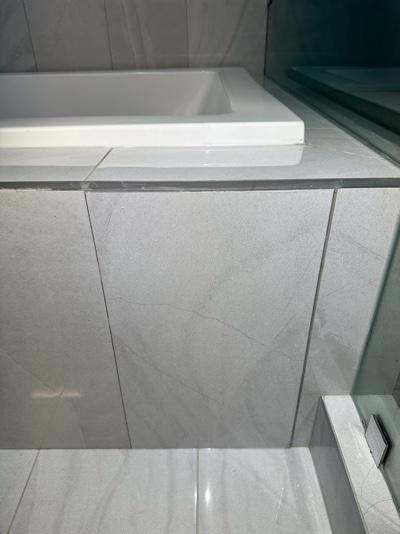

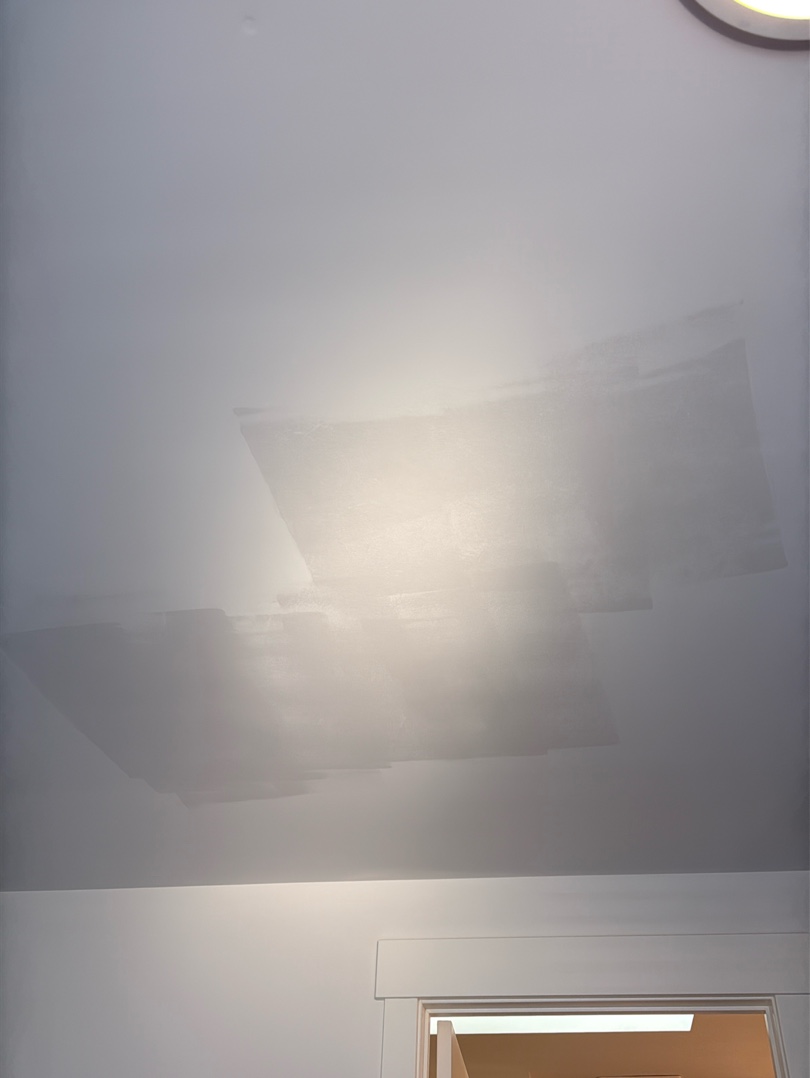

General Ceilings / Walls
Visually examined for common defects.
|
|
|

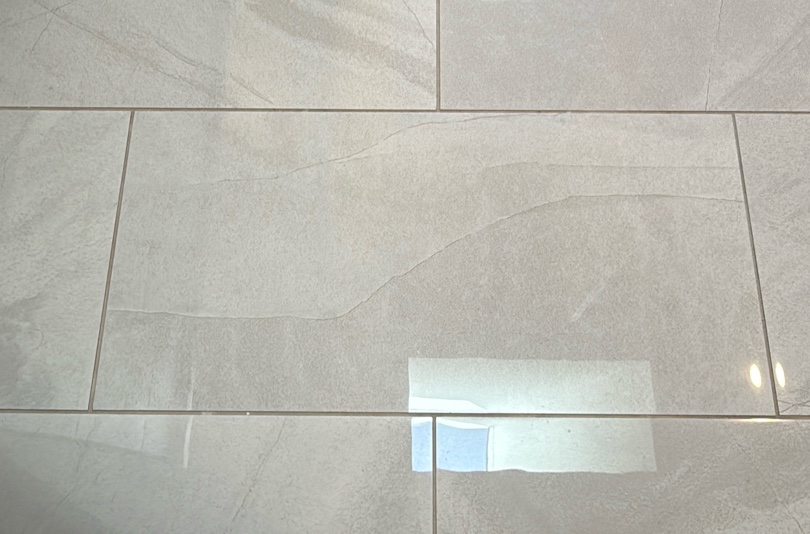

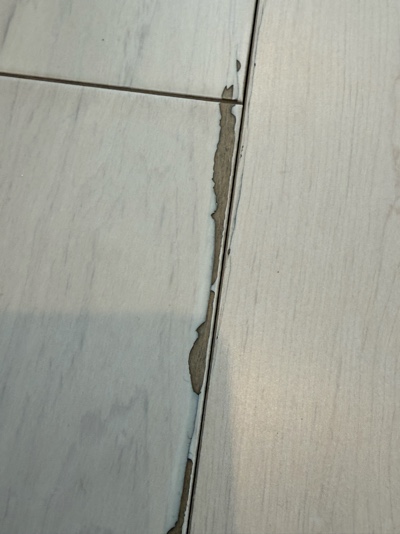

General Flooring
Visually examined for common defects.
|
|
|
About Humidity’
Maintaining proper indoor relative humidity in winter is crucial to health and comfort. Cold air holds less moisture, leading to dry indoor air when heated. Optimal indoor humidity (30-50%) prevents respiratory issues, dry skin, and damage to wood furnishings. Balancing it with outdoor temperature prevents condensation on windows and mold growth, ensuring a healthy and comfortable living environment.
|
|
Interior
40
|

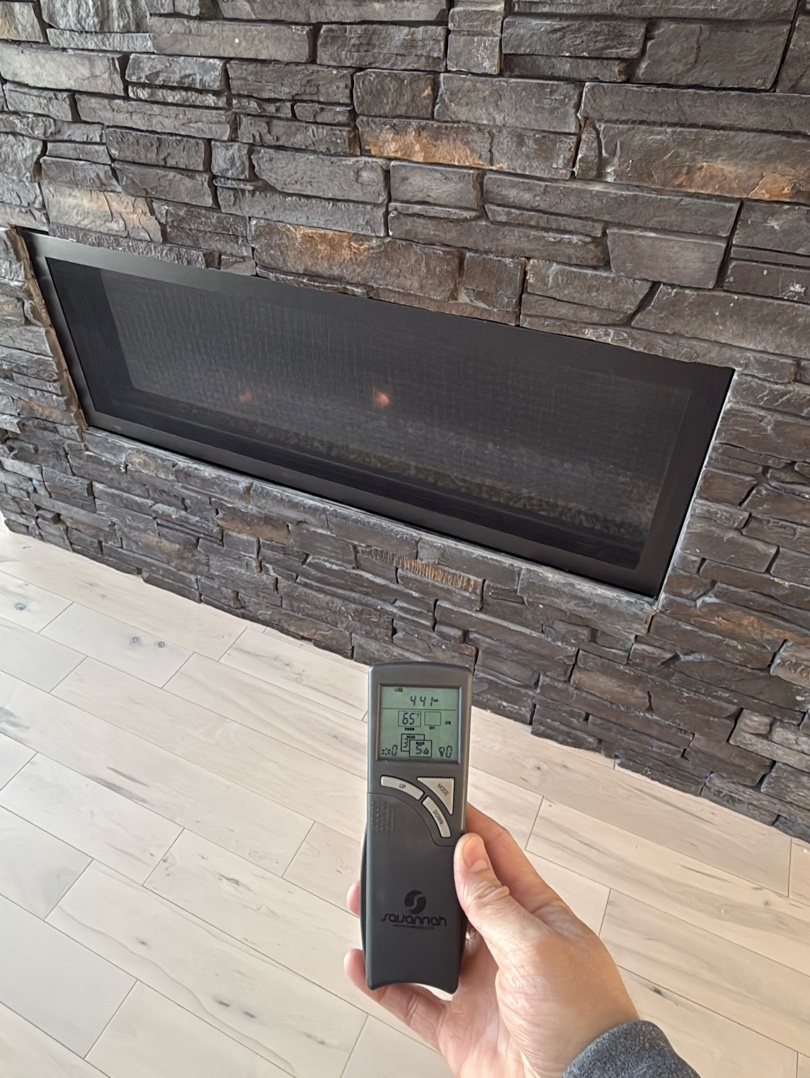

Fireplace(s)
Review focused on fuel type, structure, visible chimney/venting, flue, firebox, damper operation, and potential safety hazards. Ensure remote is left behind for the unit.
|
|
|
The Fireplace Baseline
Components are reviewed for presence, general condition, and visible signs of damage or deterioration where accessible. This includes the fuel type, firebox, hearth, mantel, damper, and visible portions of the chimney and flue. Accessible areas are checked for soot accumulation, creosote buildup, cracks, or moisture intrusion. The review is limited to observable conditions without dismantling components or conducting internal chimney inspections.
|
|
Interior
+
41
|
|
Focus Feature Page
These are photos related to the same component or system.

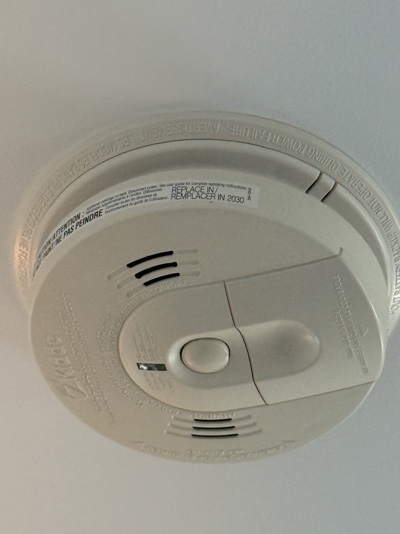

Smoke - CO Detector(s).
Visually inspected for presence, placement, condition & power source. See also Insurance Section.
|
|
|

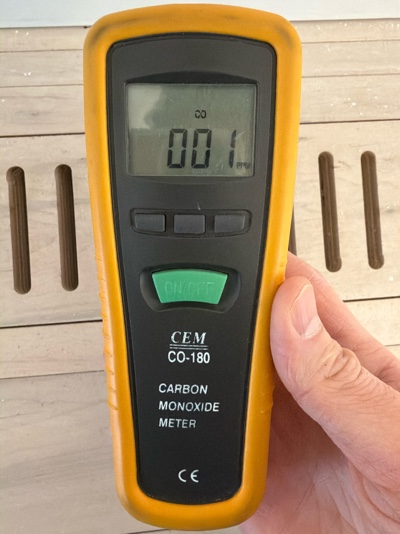

Carbon Monoxide Test(s)
Used to detect colorless, Odourless, & tasteless flammable gas. Spot checks performed in high-risk areas.

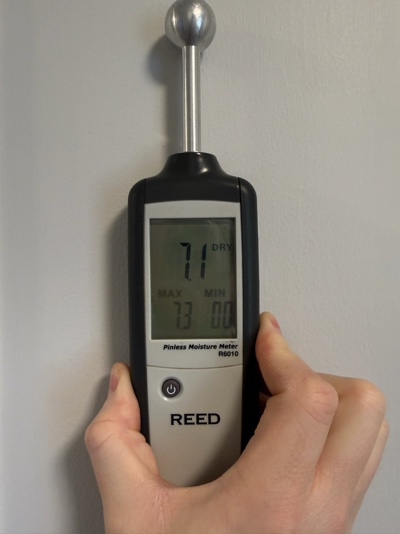

Moisture Meter Instrument
Used to measure the % of water in a given product. X10 Spot checks performed.
|
|
Safety First
Smoke and carbon monoxide alarms are essential life safety devices. Install smoke alarms in bedrooms, outside sleeping areas, and on every level. Install CO monitors outside sleeping areas and on each level near fuel burning appliances and attached garages.Test monthly. Replace batteries yearly. Replace units every 7 to 10 years.Keep fire extinguishers accessible in the kitchen, garage, and near mechanical equipment.
|
|
Interior
+
42
|
On the way out
All items tested & operated during this inspection were returned to their prior settings & positions. Windows, doors, locks, switches, and appliances are restored to their original condition, and reasonable efforts are made to tidy and leave the home as it was found at the time of inspection.
|
|
|

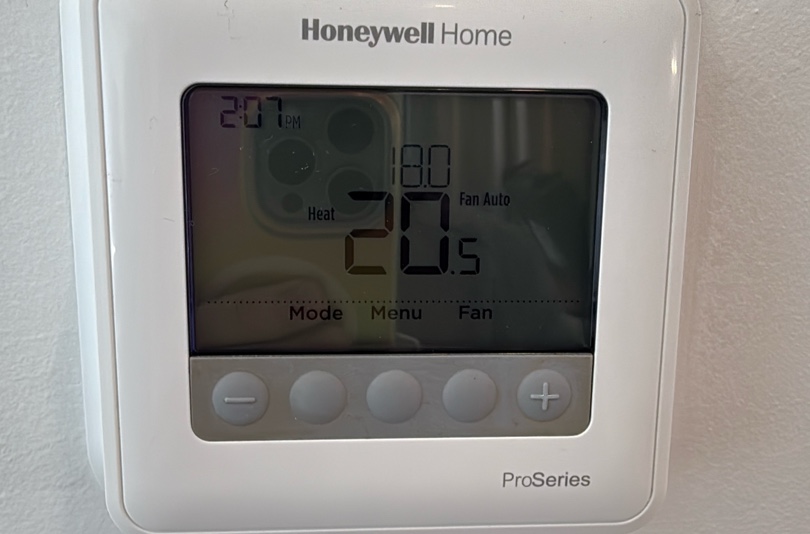

Stats set back
|
|
|

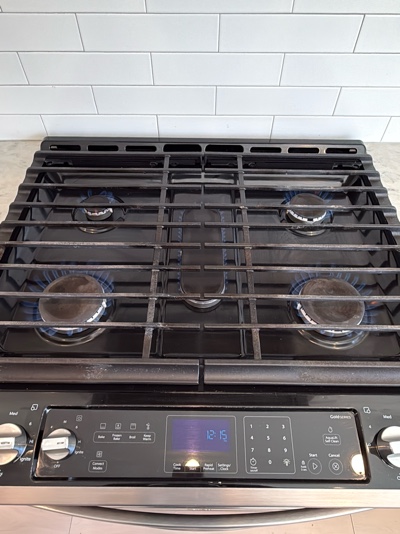

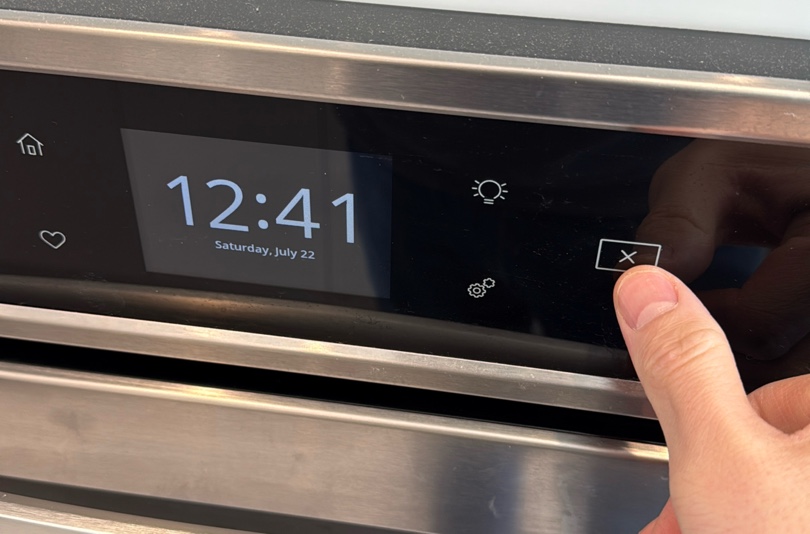

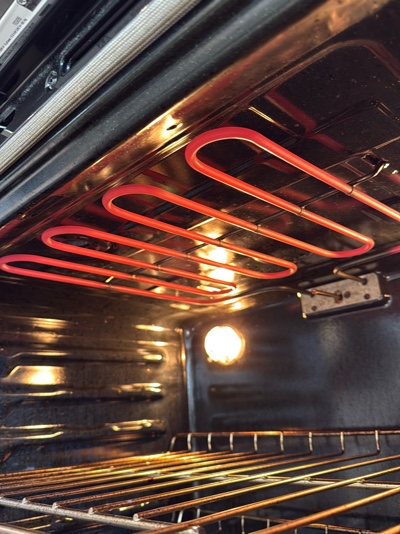

Stove / Oven Off
|
|
|

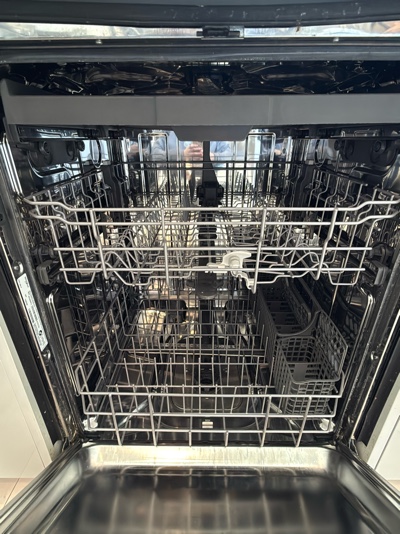

Dishwasher Off / Open
|
|
Interior
+
43
|
|
Context / Supporting Photo
|
|
|

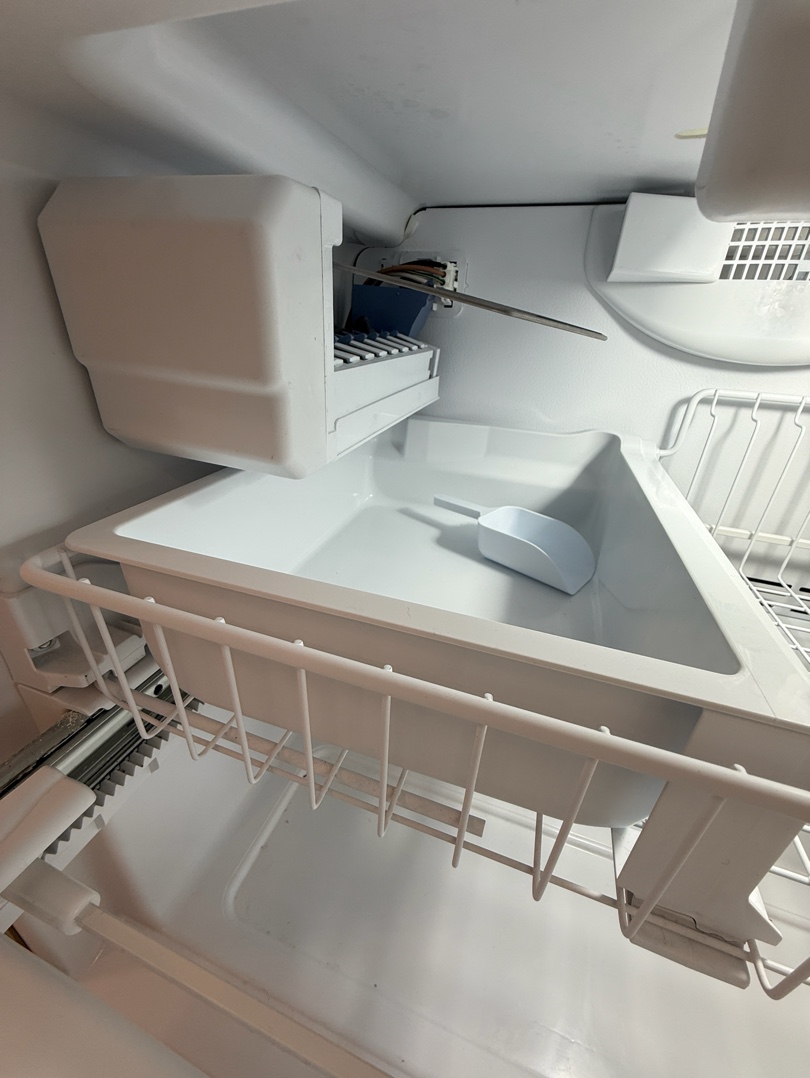

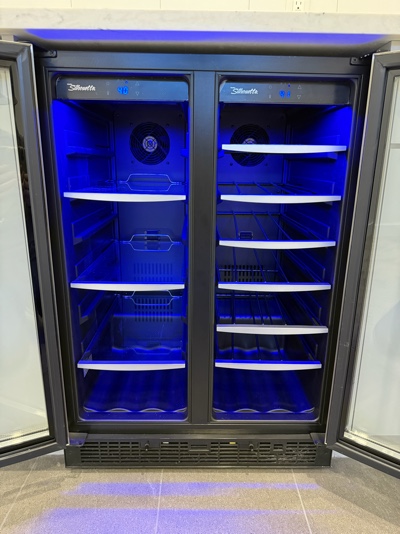

Basement Bar Fridge
Bar fridge was tested & functional at the time of inspection.
Context / Supporting Photo
|
|
|
Context / Supporting Photo
|
|
|
Context / Supporting Photo
|
Interior
44
|
|
|
|
Context / Supporting Photo
|
|
Interior
+
45
|
⚠️ Interior General Notes
1. Walls/Ceilings: Visible wear ( knicks & dings ), discoloration, and minor surface imperfections consistent for age.
|
|
Interior
+
46
|
The Interior Baseline
𝗜𝗻𝘁𝗲𝗿𝗶𝗼𝗿 – 𝗔𝗿𝗲𝗮𝘀 𝗜𝗻𝘀𝗽𝗲𝗰𝘁𝗲𝗱Interior components and finishes are reviewed for presence, general condition, visible damage, and basic operation where applicable. This includes commonly accessible areas and systems such as entry spaces, walls, ceilings, floors, trim, doors, windows, stairs, electrical components, lighting, life safety devices, heating and cooling distribution elements, and other visible interior features typically found within the living space of the home. |
|
Interior
+
47
|
|
Focus Feature Page
These are photos related to the same component or system.

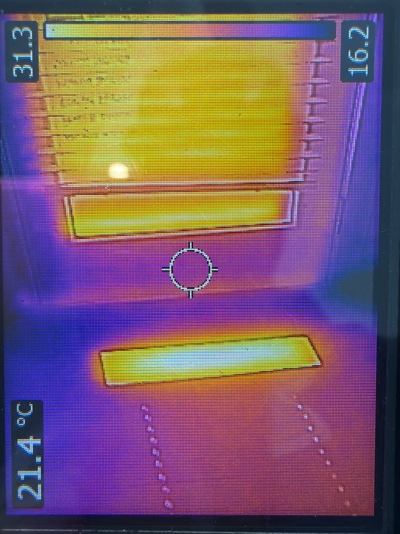

Thermal Heat Supply
|
|
|
Thermal Ceilings

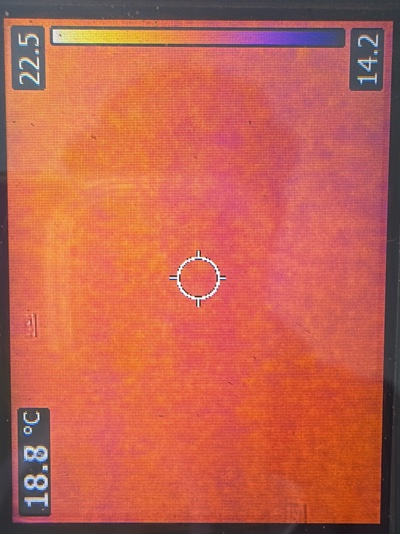

Thermal Wall(s)
|
|
|

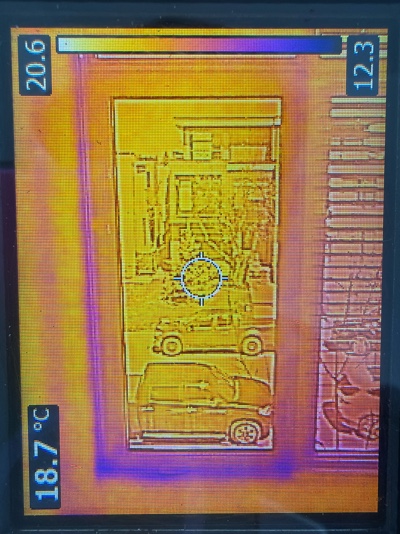

Thermal Window(s)
Thermal Door(s)
|
|
|
Hot Water Thermal

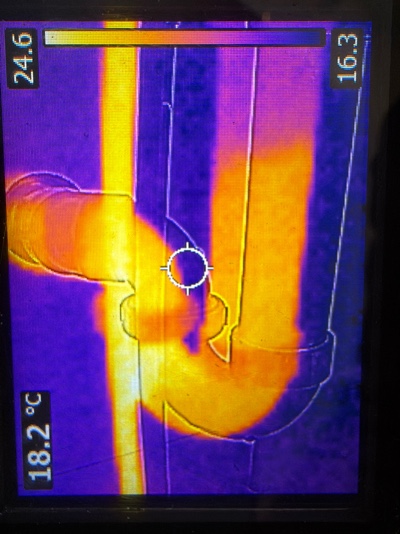

Thermal P-Trap(s)
|
Interior
+
48
|

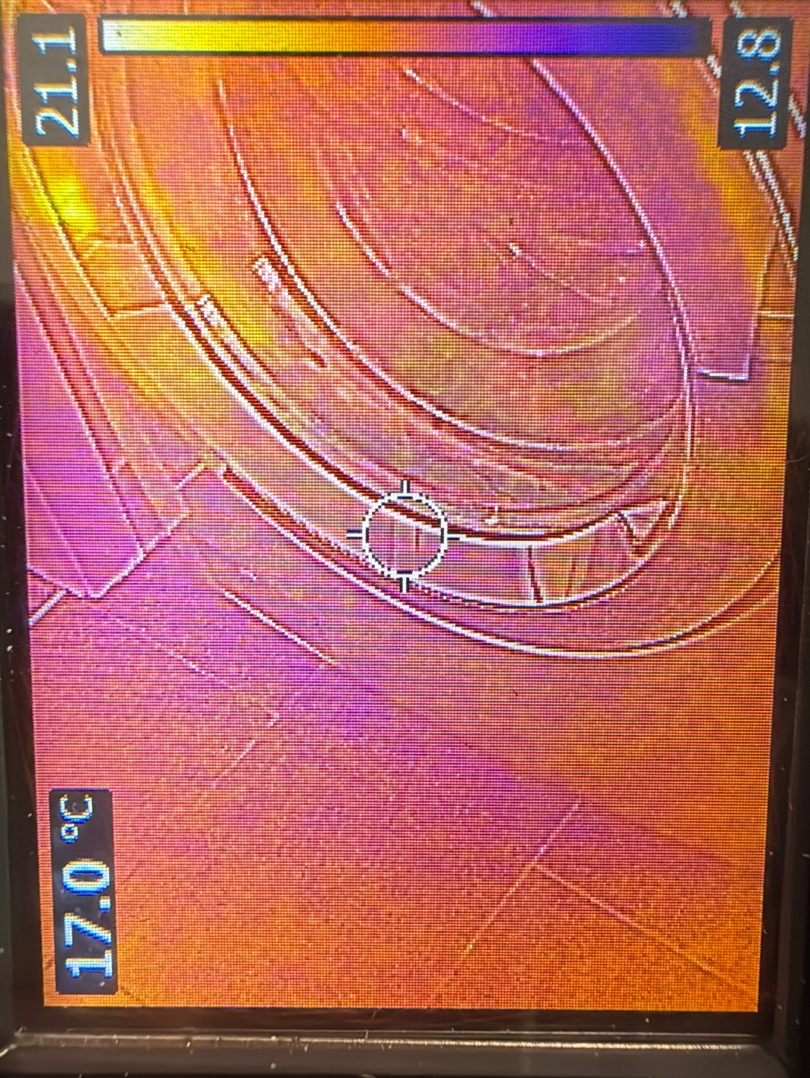

Thermal Dryer(s)
|
|
|

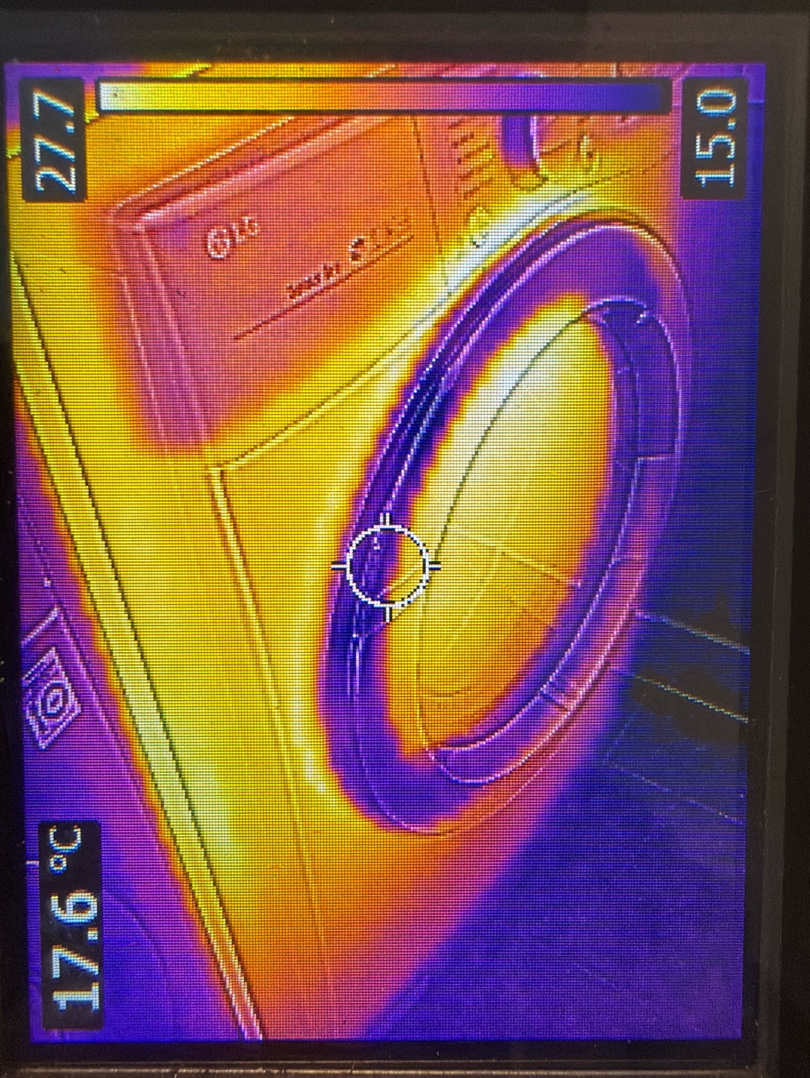

Thermal Washer
Scanned for proof of operation & the presence of moisture.
|
|
Interior
+
49
|
Routine Maintenance Pays
This video is provided as a helpful reference to support everyday home care & maintenance. It highlights simple steps that can reduce common problems & may help avoid unnecessary repairs or expenses over time. Watching this video may make it easier to understand the small actions that help keep a home running smoothly.See video |
|
Kitchen
50
| K BACK TO SUMMARY |
|
Report Legend
Explains reports symbols.
|
|
|
Kitchen Outlet(s)
Inspected for secure mounting, GFCI protection, polarity, grounding, cover condition & visible wiring concerns affecting safe use.
Microwave(s) ⠀
|
|
|

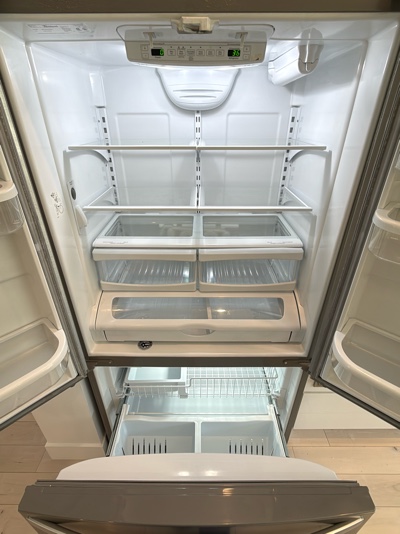

Refrigerator(s)
Inspected for operation, temperature control, door seal condition, water line connections, drainage, and general installation.
Dishwasher(s)
Inspected for operation, mounting, drainage & leakage indicators during short cycle.
|
|
|
Stovetop(s) / Cooktop(s)
Inspected for basic operation, burner function, surface condition & safety concerns.
Oven(s)
Inspected for operation, interior condition, door sealing & visible safety concerns.
|
Kitchen
51
|
Hood Fan(s) / OTR
Attention was given to general operation, connections, & ventilation path where visible.
|
|
|
Kitchen Faucet(s), Sink(s) & Drain(s)
Reviewed, focused on operation, temperature, mounting, drainage, odors & leakage indicators.
|
|
|
Kitchen P-Trap(s)
Checked for drainage, trap configuration, connection security, leakage indicators & visible corrosion.
|
|
Kitchen
+
52
|
|
|
|
The Garb.
A Garbage Disposal, AKA the Garburator, is an electric device installed under a kitchen sink. It shreds food waste into small pieces to pass through plumbing. Maintenance includes running cold water during use, avoiding fibrous or hard waste, and cleaning with ice cubes or vinegar for freshness. Safety tips: Never insert hands or objects when it's on; use tongs for removals. Proper use and regular cleaning prevent clogs and extend its lifespan, ensuring efficient waste management in your kitchen.
|
|
Kitchen
53
|

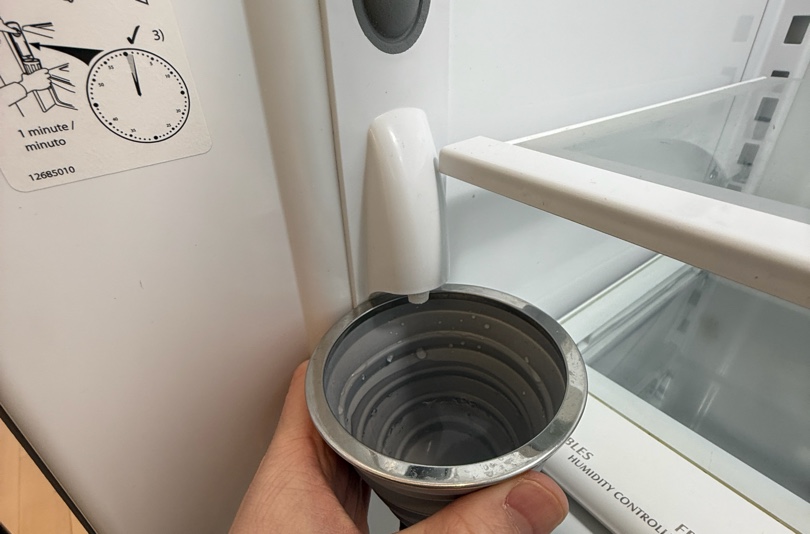

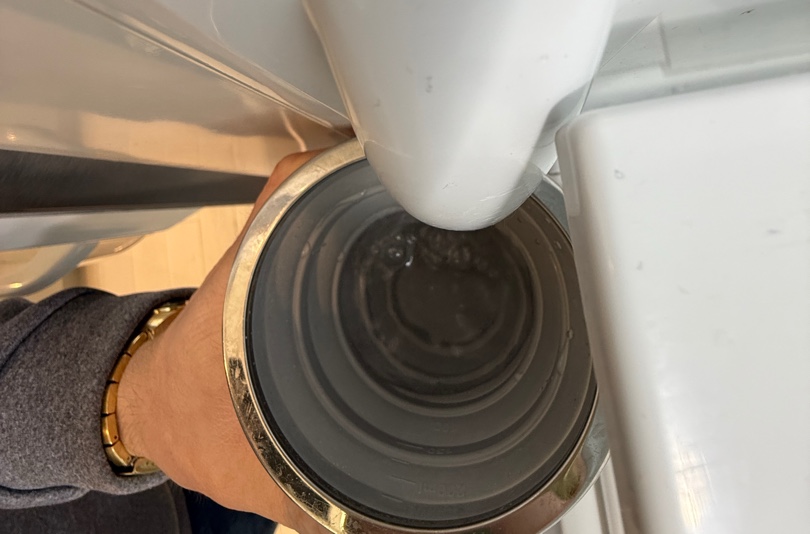

Water Dispenser
Fridge water dispenser was tested & functional at the time of inspection.
|
|
|
Context / Supporting Photo
|
|
|
|
|
Kitchen
54
|
|
|
|
Context / Supporting Photo
|
|
Kitchen
+
55
|

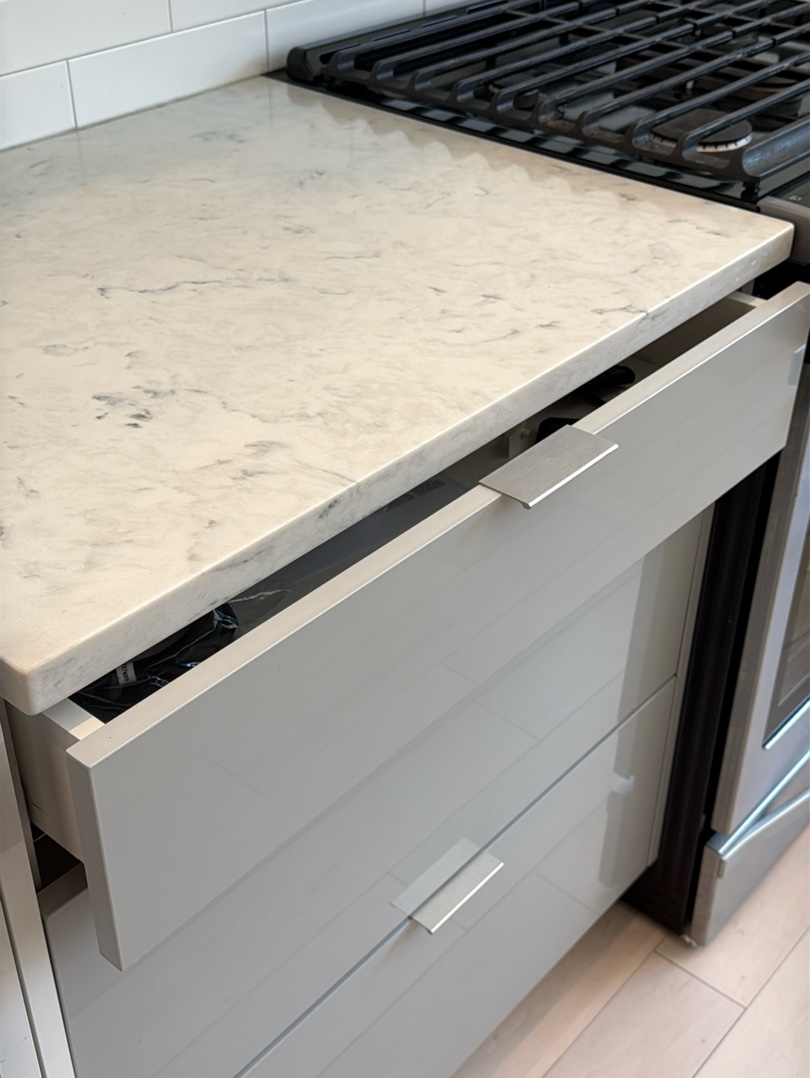

⚠️ Kitchen General Notes
1. Counter/B-splash: Visible wear at transitions and staining from use or cleaning.
|
|
Kitchen
+
56
|
The Kitchen Baseline
Components are reviewed for presence, general condition, and visible signs of damage or deterioration where accessible. This includes cabinetry, countertops, sinks, faucets, visible plumbing connections, built-in appliances, wall and ceiling finishes, and accessible electrical outlets. Accessible areas are checked for leaks, staining, loose or damaged finishes, improper clearances, and signs of moisture intrusion. The review is limited to observable conditions without moving appliances, dismantling components, or evaluating concealed plumbing, electrical, or ventilation systems.
|
|
|
The Laundry Baseline
Components are reviewed for presence, general condition, and visible signs of damage or deterioration where accessible. This includes cabinetry, countertops, sinks, faucets, built-in appliances, visible plumbing connections, wall and ceiling finishes, and accessible electrical receptacles. Accessible areas are checked for leaks, staining, loose or damaged finishes, improper clearances, and signs of moisture intrusion. The review is limited to observable conditions without moving appliances, dismantling components, or evaluating concealed plumbing, electrical, or ventilation systems.
|
|
Laundromat
57
| L BACK TO SUMMARY |
|
Report Legend
Explains reports symbols.
|
|
|

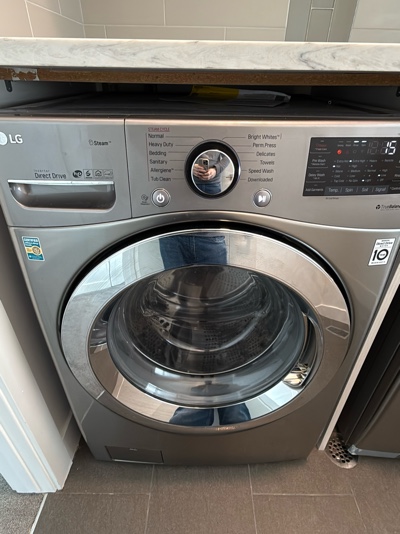

Laundry Washer Machine
Reviewed, focused on plumbing connections, hoses, drains, seals & visible leakage.

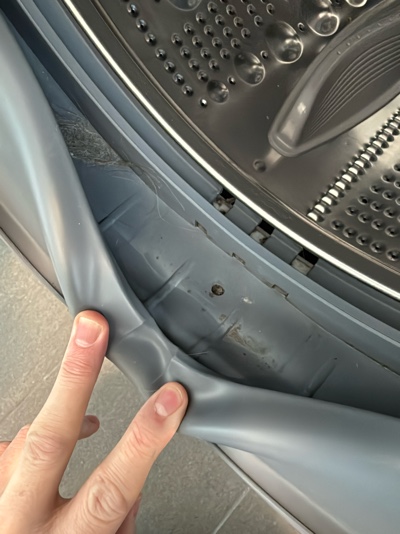

Inside The Washer
|
|
|
Laundry Dryer(s).
Attention given to operation, temperature variance, vent connections & lint accumulation.

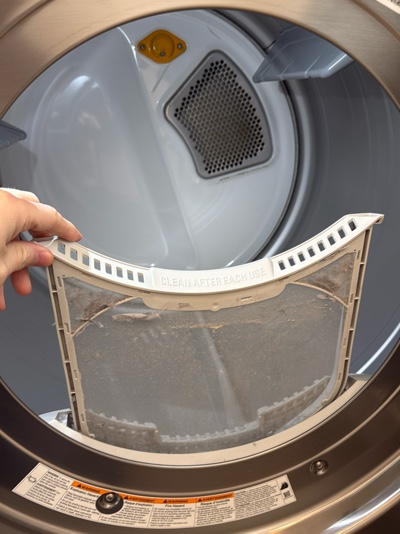

Inside The Dryer
|
|
|
VENT - VENT - VENT
Door & drawer OPEN to let moisture escape & prevent organic growth.
RISK Reduction
Check behind the washer for leaks regularly, and shut off the water when away on vacation.
|
Laundromat
+
58
|
⚠️ Laundry General Notes
1. Surfaces: Walls, ceilings, and flooring show lint, scuffs, and minor moisture effects from routine use.
|
|
Bathroom
59
| B BACK TO SUMMARY |
|
Report Legend
Explains reports symbols.
|
|
|
Bathroom Outlet(s)
Tested for anomalies.

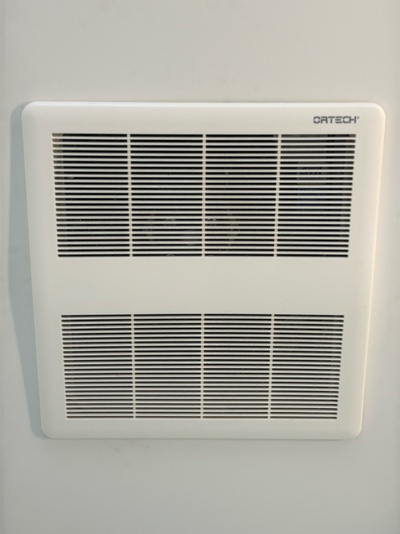

Bathroom Extraction Fan(s)
Observations included basic operation & airflow response using simple draw testing.
|
|
|
Overview Shower / Bathtub
Focused on fixtures, connections, operation, overflows & surrounds.
Plumbing Floor Drain(s)
Observations included drainage flow, blockage signs, backups, odors & leakage indicators.
|
|
|

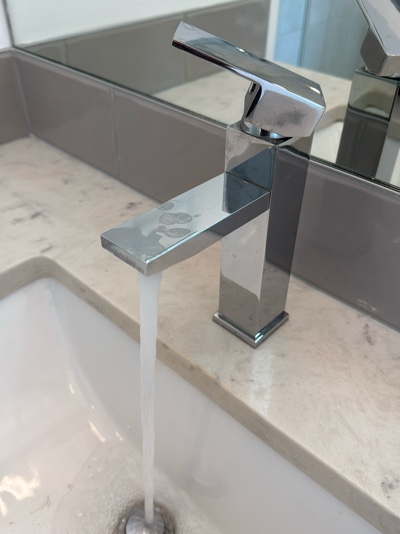

Bathroom Water Faucet(s)
Operated to assess function, flow, mounting, sealing & signs of leakage, corrosion, or wear.

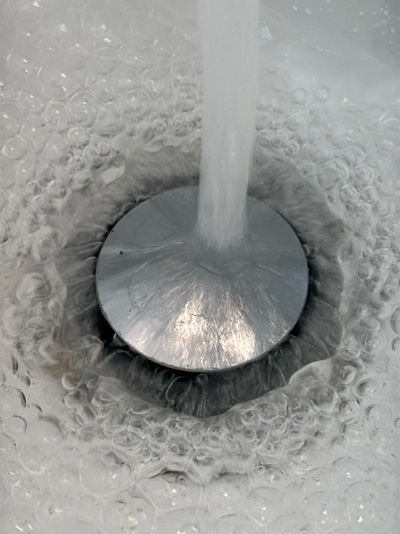

Bathroom Sink Drain(s)
|
Bathroom
+
60
|
Bathroom P-Trap(s)
Checked for drainage, trap configuration, connection security, leakage indicators & visible corrosion.
|
|
|
Toilet(s)
Reviewed for stability, operation & visible leakage. X3 flush test per unit.
|
|
Bathroom
+
61
|
General Ceilings / Walls
Visually examined for common defects.
|
|
|
General Flooring
Visually examined for common defects.
|
|
|

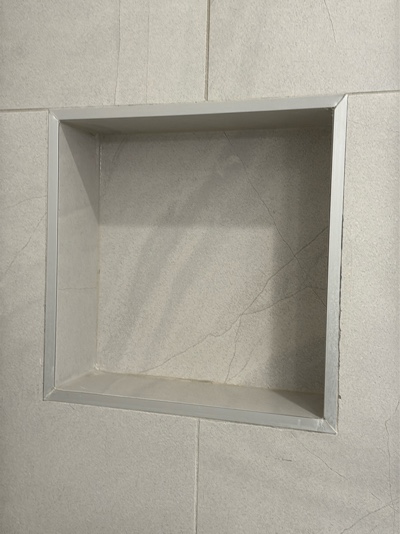

Bathtub & Surround(s)
Inspected for condition, secure installation, functional drainage, faucet operation, and visible signs of leaks, cracks, damage, or deteriorated sealant at accessible areas.
|
|
Bathroom
+
62
|
|
Focus Feature Page
These are photos related to the same component or system.

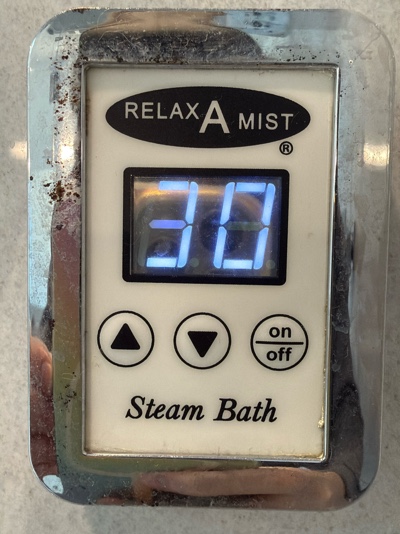

Steam Thermostat(s)
Set to test & restored to original settings.
|
|
|
Steam Generator(s)
Not Accessible: Area or item could not be accessed at the time of inspection and was therefore not evaluated. Not Inspected
Steam Nozzle(s)
Observed for mounting, discharge condition, blockage indicators & surrounding surface condition.
|
|
The Steam Baseline
Components are reviewed for presence, general condition, and visible signs of damage or deterioration where accessible. This includes wall and ceiling finishes, seating, door assembly, steam head location, and visible control components. Accessible areas are checked for moisture damage, staining, loose finishes, microbial growth, and improper sealing. The review is limited to observable conditions without operating the steam generator, removing finishes, or evaluating concealed waterproofing or ventilation systems.
|
|
Bathroom
+
63
|
|
Context / Supporting Photo
|
|
|

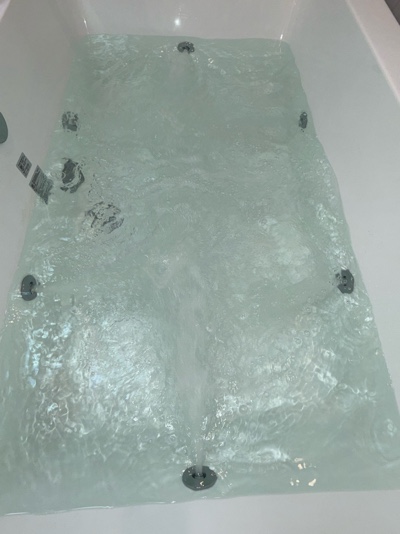

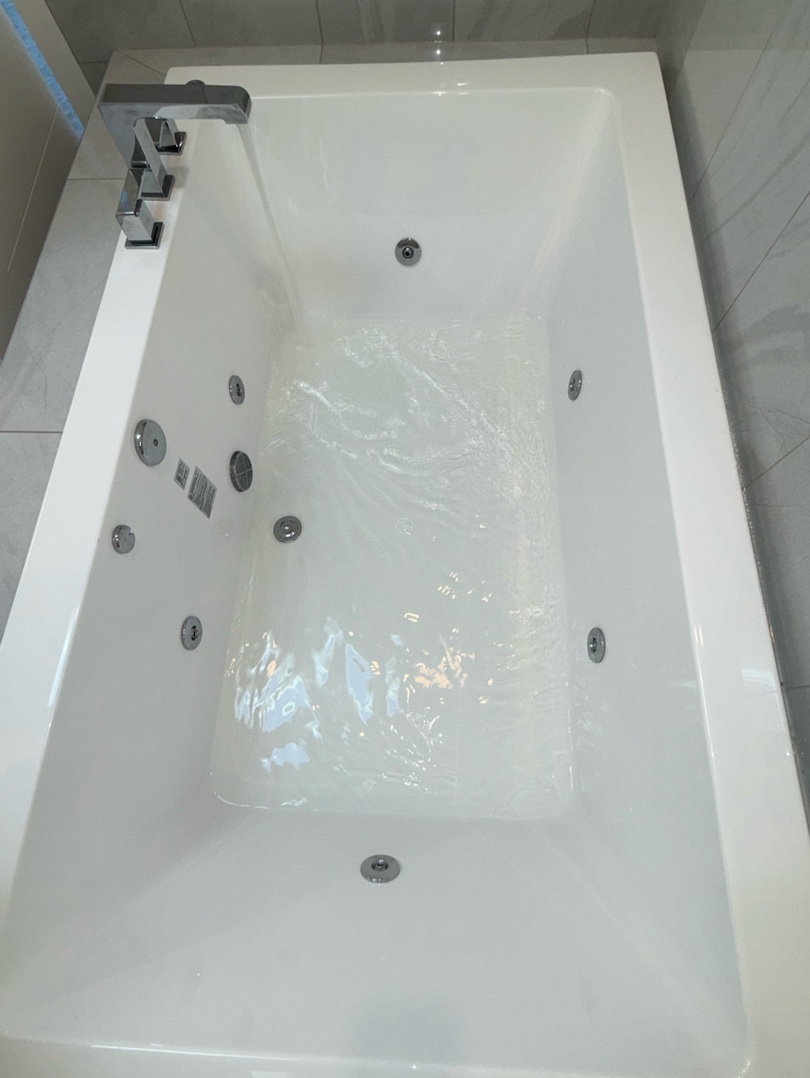

Ensuite Jetted Tub
Ensuite bathroom jetted tub was tested & functional at the time of inspection.
Context / Supporting Photo
|
|
|
Context / Supporting Photo
|
|
|
Context / Supporting Photo
|
Bathroom
+
64
|
⚠️ Bathroom General Notes
1. Surfaces: Walls, ceilings, and flooring wear, staining, and moisture-related effects from normal use.
|
|
Bathroom
+
65
|
Bathroom Ventilation
Bathroom exhaust fans help remove excess moisture created during bathing and showering. Running the fan during use and for at least 15–20 minutes afterward helps reduce humidity, which can prevent condensation, microbial growth, peeling finishes, and moisture damage to walls, ceilings, and nearby materials. Regular use and periodic cleaning of the fan grille improve performance and indoor air quality.
|
|
|
The Bathroom Baseline
Components are reviewed for presence, general condition, and visible signs of damage or deterioration where accessible. This includes cabinetry, countertops, sinks, faucets, visible plumbing, appliances, wall and ceiling finishes, and electrical receptacles. Accessible areas are checked for leaks, staining, loose or damaged finishes, improper clearances, and signs of moisture intrusion. The review is limited to observable conditions without moving appliances, dismantling components, or evaluating concealed plumbing, electrical, or ventilation systems.
|
|
Mechanical
66
| M BACK TO SUMMARY |
|
Report Legend
Explains reports symbols.
|
|
|
Electrical Panel(s) ⠀
Assessing breakers, wires, bond, 30" clearance, corrosion & damage. See also Insurance Section.
The Main AMP
Generally, this will shut down everything! Designed to interrupt a large amperage load.
|
|
|
Hot Water Unit(s) ⠀
Attention was given to unit mounting, venting, safety components, temperature controls & visbile operation.
Hot Water Data
Unit detail(s). See also Insurance Section.
|
|
|
Heating Unit Data Plate
Unit detail(s). See also Insurance Section.
|
Mechanical
+
67
|
|
Heating Unit Shutoff ⠀⠀⠀
Observed for accessibility, labeling, secure mounting & operation affecting emergency shutoff capability.
|
|
|
Plumbing Waterlines
Inspected for support, connections, leaks & visible corrosion or damage. See also Insurance Section.

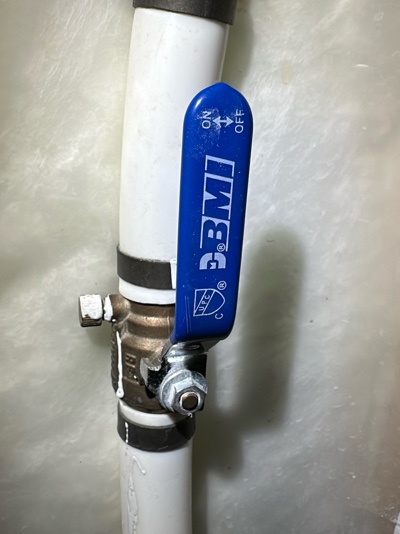

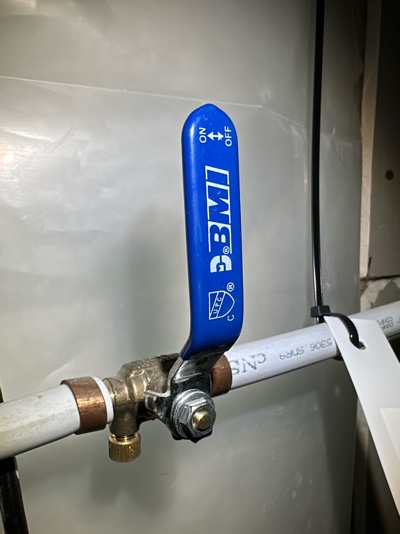

Ext. Water Shutoff(s)
Observed for accessibility, labels, valve operation, connection condition & leakage indicators.
|
|
Maintenance Advisory
Mechanical systems require routine homeowner maintenance and periodic observation for safe operation. This includes replacing heating system filters as recommended, keeping drains and condensate lines clear of debris, and periodically having sewer lines evaluated by a qualified contractor. Safety measures include maintaining domestic hot water at a safe temperature and installing locking or spring-loaded cover plates on critical controls to prevent accidental shutoff. Occupants should be familiar with all system shutoffs and label them clearly. Mechanical rooms should not be used for storage due to required clearance to combustibles. Homeowners should periodically check the mechanical room for calcification, minor leaks, corrosion, or unusual odors that may indicate developing issues.
|
|
Mechanical
+
68
|
|
Focus Feature Page
These are photos related to the same component or system.
More
|
|
|

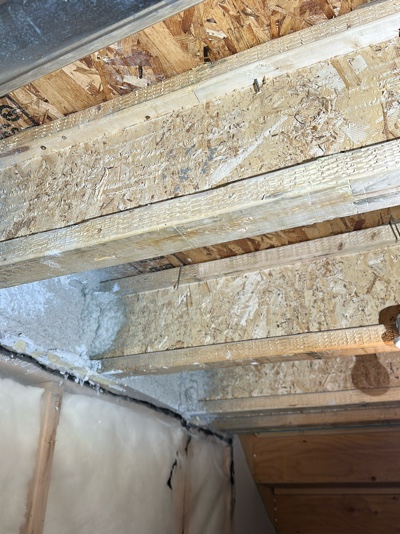

Rim Joist Insulation
Rim Joist Example
The outer board capping floor joists. Inspected for damage, moisture, air leaks, insulation presence, and pest activity.
|
|
|

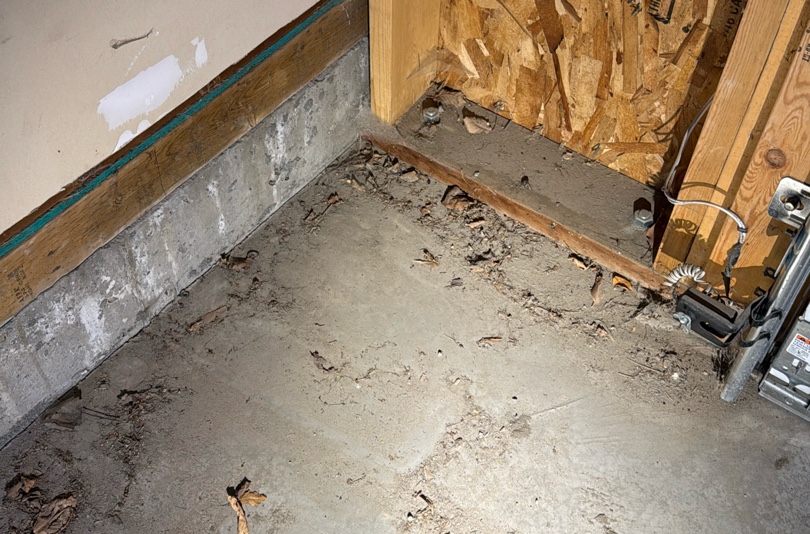

Frost Wall
Frost Wall Example
A foundation wall below grade. Inspected for cracks, moisture intrusion, movement, and insulation/air sealing issues.
|
|
|
Joist
These serve to provide stiffness to the subfloor sheathing & spread the load.
Beam
The structural element that primarily resists loads applied laterally.
|
Mechanical
+
69
|

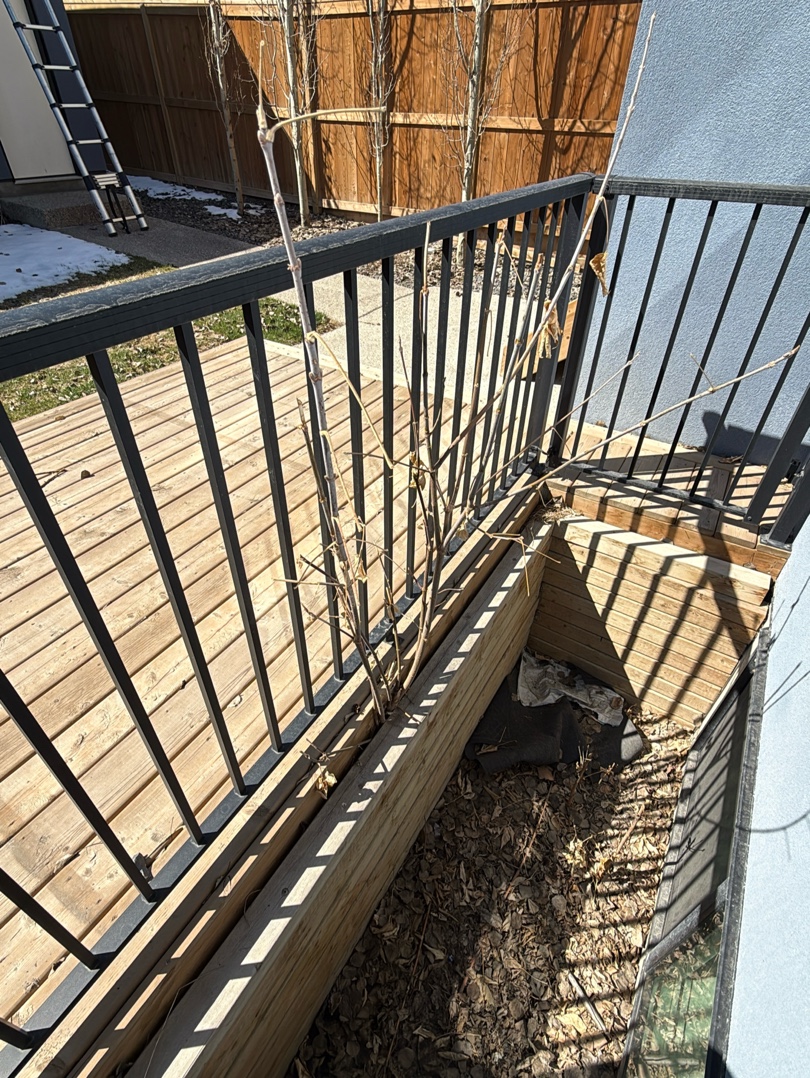

Stair(s) & Railing(s)
Attention was given to structure, rise/run consistency, landings, string if visible, handrails, & visible safety indicators.
|
|
|
Stairs & Railings Baseline
Stairs & Railings – Areas Inspected Inspection of the stairs focused on accessible structural and safety conditions. This included treads, risers, stringers, landings, handrails, and guards where present. Components were reviewed for secure attachment, uniformity, damage, wear, and trip or fall hazards. The evaluation was limited to visible and accessible areas without dismantling components or assessing concealed structural elements. |
|
Mechanical
+
70
|
General Ceilings / Walls
Visually examined for common defects.
|
|
|
|
|
|
Framing 101
Behind every wall is a framework — much like your own skeleton. Vertical studs form the bones, while cripples support around openings. King and jack studs work together to hold up headers over doors and windows, spreading the load. Top plates cap the walls and tie everything together, while bottom plates anchor it all to the floor. This unseen structure is critical to the strength, stability, and alignment of your home. Just like a healthy body depends on solid bones, your home depends on this framing to stand true. ⠀⠀⠀⠀⠀ ⠀ ⚠️ See also Insurance section for more details on your the structural specifications of this property.
|
|
Mechanical
+
71
|
The HRV
Heat Recovery Ventilators exchanges indoor and outdoor air, using heat from outgoing air to warm incoming fresh air, optimizing energy use and improving indoor air quality. Excellent at reducing heating costs and preventing moisture buildup.
|
|
|
HRV Unit(s)
Reviewed, focused on operation, airflow, filter condition & visible ventilation connections.
|
|
|
Inside HRV Unit(s)
|
|
Mechanical
72
|
|
|
|
- Support Photo

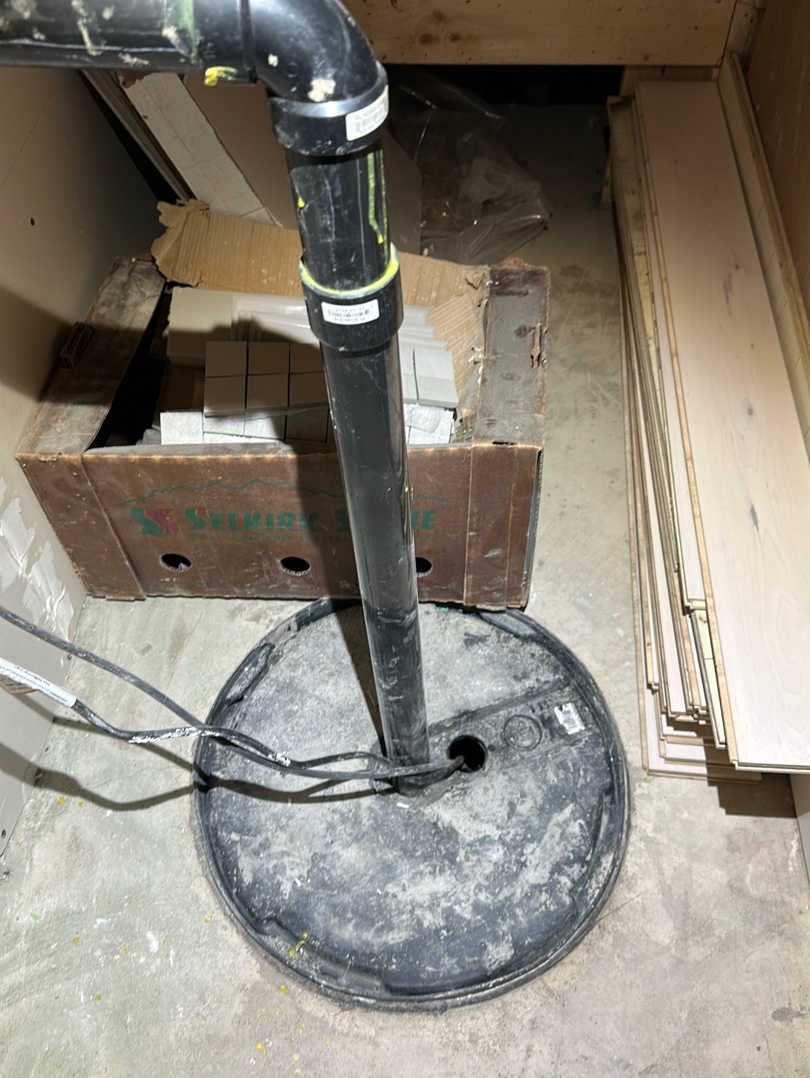

The sump pump lid is missing a rubber gasket.
|
|
Mechanical
+
73
|
|
Support Photo
|
|
|
Support Photo
|
|
|
|
|
|
Support Photo

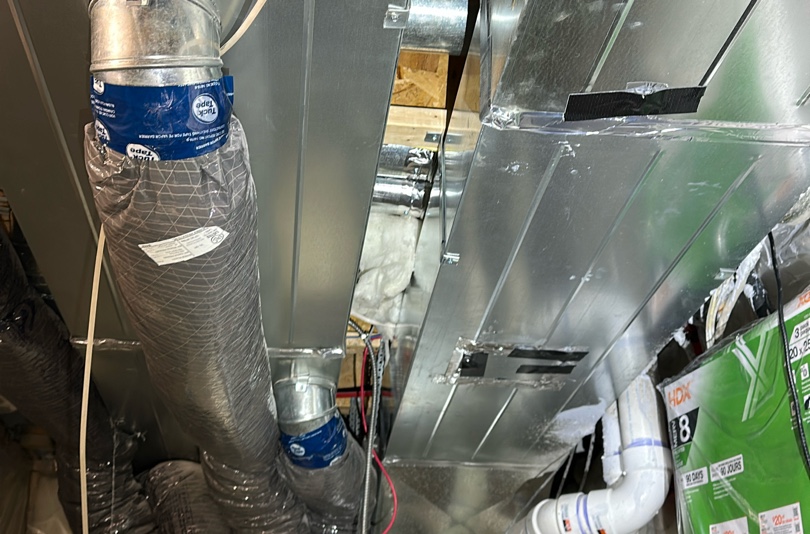

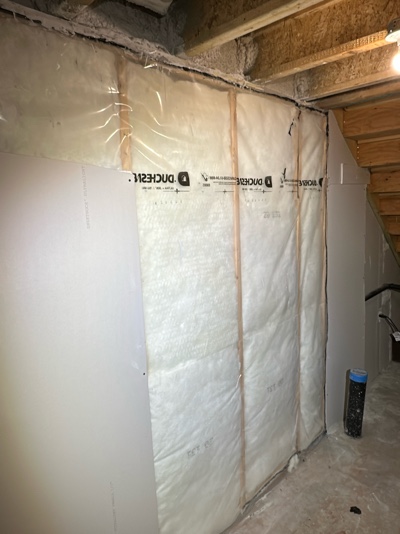

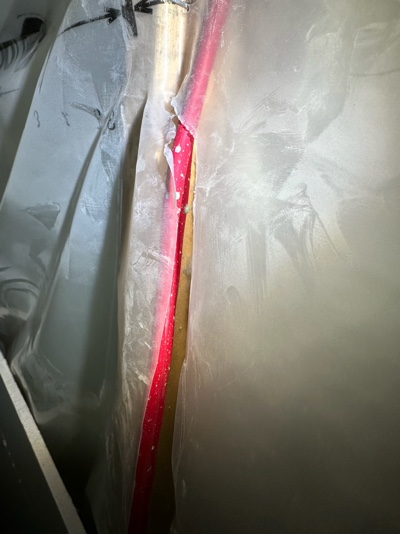

There is a lot of loose vapour barrier behind the furnace, which could cause condensation concerns
|
Mechanical
74
|
|
|
|
Support Photo
|
|
Mechanical
+
75
|
|
|
Mechanical
+
76
|
The Mechanical Baseline
𝗠𝗲𝗰𝗵𝗮𝗻𝗶𝗰𝗮𝗹 – 𝗔𝗿𝗲𝗮𝘀 𝗜𝗻𝘀𝗽𝗲𝗰𝘁𝗲𝗱Mechanical components and systems are reviewed for presence, general condition, visible damage, and basic operation where applicable. This includes commonly accessible heating, cooling, and ventilation equipment, water heating equipment, visible piping and ductwork, pumps, valves, and associated controls. Supporting components and other mechanical features typically found within the home are also visually reviewed where present. 𝗦𝘁𝗿𝘂𝗰𝘁𝘂𝗿𝗲 – 𝗔𝗿𝗲𝗮𝘀 𝗜𝗻𝘀𝗽𝗲𝗰𝘁𝗲𝗱 Structural components are reviewed for presence, general condition, and visible signs of damage or movement where applicable. This includes commonly accessible foundation surfaces, framing elements, beams, posts, columns, load-bearing walls, and other visible structural features. The review focuses on observable conditions within accessible areas and does not include engineering analysis or invasive evaluation. |
|
the
insurance
| Safety Overview | |
| Site Limitations | ⚠️ Weather - Visibility - Access - Height |
| Inspection Type | ◻️ Pre-Purchase Inspection (non-exhaustive) |
| Property Vacancy | ◻️ Not Occupied & No Furnishings |
| Smoke & CO | ◻️ Compliant: installed, placed & functional |
| Egress Windows | ◻️ Location: All Bedroom(s): Present |
| Stairs & Handholds | ◻️ Structure: Functioning as Intended |
| Roof System | |
| Method of Inspection | ◻️ Ladder at edge, walked & drone |
| Roofing Surface | ◻️ Material: Asphalt/torch down - Age; Unknown |
| Drainage Path | ◻️ System: Trough & Downspouts |
| Ventilation System | ◻️ Box Vent(s) - Soffit |
| Exterior Overview | |
| Cooling Type(s) | ◻️ Not Present - Not Applicable |
| Main Fuel Shutoff | ◻️ Location: Side Yard |
| Envelope Cladding | ◻️ Material: Stucco Stone Veneer |
| Steps & Guards | ◻️ Materials: Concrete Stairs & Metal Railing |
| Barriers & Walls | ◻️ Material: Wood (fence) |
| Grade & Ground Cover | ◻️ Terrain: Flat & Level - Snow (restrictive) |
| Hardscape Surfaces | ◻️ Material: Paths: Concrete - Drive: Concrete |
| Garage Systems | |
| Fire Seperation | ◻️ Not Applicable |

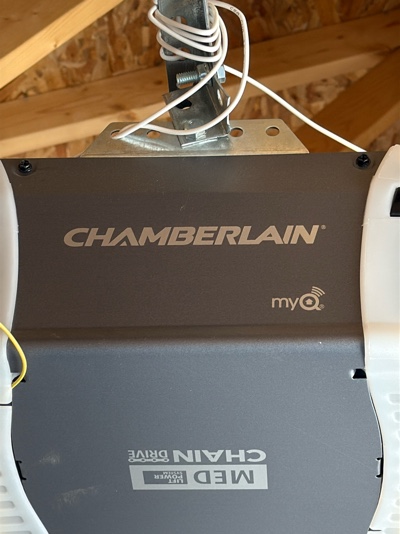

| Safety Auto Reverse | ◻️ Status: Functioning as intended |
| Heating Equipment | ◻️ Unit: Not Present |
| Attic System | |
| Hatch & Insulation | ◻️ Location: Prime Closet - Mat: Blown-In |
| Sheathing & Poly | ◻️ Material: OSB - Vap Barrier: Present (ltd vis) |
the
insurance
| Interior Overview | |
| Thermostat Location | ◻️ Location: Main Level - Restored to original |
| Walls & Ceilings | ◻️ Material: Drywall |
| Flooring Surfaces | ◻️ Material: Hardwood - Tile - Carpet |
| Other Features | ◻️ Type: NG Fireplace |
| Kitchen & Bathroom | |
| Safety - GFCI’s | ◻️ Location: Kitchen: Present - Bath: Present |
| Ventilation System | ◻️ Type: Range Hood: to EXT. - B-Fan: Present |
| Laundry Specs | ◻️ 220V - Vent: Flex - Water: Rubber |
| Mechanical System | |
| Heating Unit(s) | ◻️ Type: HE Furnace / Forced Air - Age: 2019 |
| Heating Fuel Source | ◻️ Type: Natural Gas - Primary |
| Water Heater Unit | ◻️ Type: Tank - Age: 2019 |
| Water Heating Fuel | ◻️ Type: Natural Gas - Primary |
| Plumbing System | ◻️ Public Water: PEX - City Sewer: ABS |
| Water Main Shutoff | ◻️ Location: Mechanical Room |
| Back Flow Valve | ⚠️ Installation: Unknown |
| Electrical Service | ◻️ Entry: Overhead - Material: Copper |
| Service Disconnect | ◻️ Location: Garage |
| Main Panel Interior | ◻️ Location: Garage - Ground: Unknown |
| Electrical System | ◻️ Service: 100 AMP - Branch: Copper |
| Structure System | |
| Roof Structure | ◻️ Type: Engineered Truss |
| Exterior Wall System | ◻️ Type: Wood Studs |
| Structure System | ◻️ Type: Engineered Joist & Beam |
| Foundation System | ◻️ Type: Poured Concrete |
| Structural Observ. | ◻️ Notes: Typical shrinkage cracking |
the
playbook
Twenty20 & Co Inc
You’ll find tips & tricks on maintenance, recalls, cleaning, preparing your property for sale, dealing with difficult neighbours & more.
🔻press the thumb print.🔻
72 seconds
Positive reviews from awesome customers like you help others to feel confident about choosing our firm & our “to the point” reporting methodology.
We’d so appreciate if you could take 72 seconds to click on our logo below and share your happy experience.
Much Appreciated
