2122 29 Avenue SW
Twenty20 & Co Inc
May 8, 2026
"Designed to tell the real story."
⚠️ Tap Here
⚠️ Property Specs
elements
|
|
May 8, 2026 |
|
|
2122 29 Avenue SW Calgary, Alberta |
|
|
Detached |
|
|
Partly Sunny |
|
|
Client |
|
|
Tyler Nichols |
|
|
Samdisha Homes N/A bobby@samdishahomes.com 4036302724 |
|
|
N/A |
|
9:00AM Start Time |
method
This inspection is a visual, non-invasive review using normal controls & accessible areas.
We follow a consistent path through all major systems. Findings are structured for clarity so you understand what’s there, what needs attention & what to do next.
Each item lists the component or system, issue defect, recommended action & summary note.
Built to eliminate doubt.
"Turning information into decisions you can trust."
thank you
Thank you for choosing us for your inspection. We truly appreciate your trust.
I will be your primary contact & will do everything I can to ensure you are completely clear on today’s findings.
Please feel free to reach out at any time if you have questions or need further clarification. We’re always happy to help.
Kind Regards,
Tyler Nichols
stuff.
A property inspection evaluates visible, non-exhaustive conditions & records findings in report form Inspectors examine readily accessible systems & components using a visual, non-invasive method & operate equipment using normal controls when possible. Components, issues, actions, location, trade & summary may be noted. Conditions reflect time of inspection only. Inaccessible or unsafe areas are not inspected (not accessible)
⚠️ We encourage you to read our Standards of Practice (SOP’s), scope, disclamers & limitations. The SOPs outline the scope of the inspection, the systems reviewed & the limitations that apply. They provide the framework inspectors follow to evaluate properties & communicate findings consistently. This structure helps ensure inspections are performed using a clear, proven, nationally recognized standard. Full details by clicking the logo. 🔻🔻🔻
The difference between something good and something great is attention to detail.
legends
![]() |
It’s a snap! Here are some key terms you’ll see throughout. |
| Iconography | Used for clarity. |
![]() |
Immediate Attention |
![]() |
Attention |
| Not Inspected | Limitations. |
| Hand Gestures | Universal. |
| Issue: | Identify the problem if there is one |
| Action: | Recommended path to address the issue |
| L: | Location where it is found |
| T: | Typical Tradesperson |
| R: | Reason why it wasn't inspected |
| $ / $$ / $$$ |
summary
Action: Improve / Re-Seal T: ⚫ Roofer L: Multiple Areas
Notes: Attention – Issue(s) should be addressed in a timely manner. Further consequences may occur if not rectified. This is not a common product for this & something like MS detail should be applied.
Action: Seal / Repair / Monitor T: ⚫ Roofer L: Upper Roof
Notes: Attention – Issue(s) should be addressed in a timely manner. Further consequences may occur if not rectified.
Action: Improve / Secure T: 🟠 Ext-Envelope L: Multiple Sides
Notes: Attention – Issue(s) should be addressed in a timely manner. Further consequences may occur if not rectified.
Action: Further Evaluate / Repair T: 🟢 HVAC L: Sideyard
Notes: Observation – Issue(s) should be monitored; plan for maintenance or correction as needed.
Action: Install &/or Replace L: Fron House
Notes: Attention – Issue(s) should be addressed in a timely manner. Poor drainage may contribute to moisture-related issues.
summary
Action: Improve / Re-Grade L: Sideyard
Notes: Attention – Issue(s) should be addressed in a timely manner. Poor grading may contribute to moisture or foundation concerns.
Action: Clean/Maintain L: Both Patios
Notes: Observation – Issue(s) should be monitored; plan for correction.
Action: Seal / Repair / Monitor T: 🟠 Ext-Envelope L: Patios
Notes: Observation – Issue(s) should be monitored; plan for correction.
Action: Install &/or Replace L: Multiple Areas
Notes: Observation – Issue(s) should be monitored; plan for maintenance or correction as needed.
Action: Install &/or Replace T: 🟢 HVAC L: Left Side
Notes: Observation – Issue(s) should be monitored; plan for maintenance or correction as needed.
Action: Install &/or Replace T: 🟠 Ext-Envelope L: Front/Back
Notes: Attention – Issue(s) should be addressed in a timely manner. Further consequences may occur if not rectified.
summary
Action: Clean/monitor/Seal Edges T: 🟠 Ext-Envelope L: Multiple Areas
Notes: Observation – Issue(s) should be monitored; plan for maintenance or correction as needed.
Action: Correct / Adjust / Verify T: 🔵 Plumbing L: Back Left
Notes: Observation – Issue(s) should be monitored; plan for maintenance or correction as needed.
Action: Repair &/or Replace T: 🟠 Ext-Envelope L: Back GFCI
Notes: Observation – Issue(s) should be monitored; plan for maintenance or correction as needed.
Action: Monitor/Adjust/Improve T: 🔴 Structural L: See Photo
Notes: Observation – Issue(s) should be monitored; plan for maintenance or correction as needed.
Action: Further Evaluate / Repair
Notes: Attention – Issue(s) should be addressed in a timely manner. Further consequences may occur if not rectified.
Action: Seal / Repair / Monitor L: Side Wall
Notes: Attention – Issue(s) should be addressed in a timely manner.
summary
Action: Further Evaluate/Monitor
Notes: Observation – Issue(s) should be monitored; plan for correction.
Action: Seal / Repair / Monitor T: ⚫ Roofer L: Multiple Areas
Notes: Attention – Issue(s) should be addressed in a timely manner.
Action: Improve / Re-Grade L: Side Walls
Notes: Attention – Issue(s) should be addressed in a timely manner. Poor grading may contribute to moisture or foundation concerns.
Action: Install &/or Replace L: Multiple Areas
Notes: Observation – Issue(s) should be monitored; plan for maintenance or correction as needed.
Action: Record date T: 🟡 Electrical L: All
Notes: Attention – Issue(s) should be addressed in a timely manner. Reduced function may limit early warning capability.
Action: Improve / Secure T: 🟤 Interior Fin L: Back Door
Notes: Observation – Issue(s) should be monitored; plan for maintenance or correction as needed.
summary

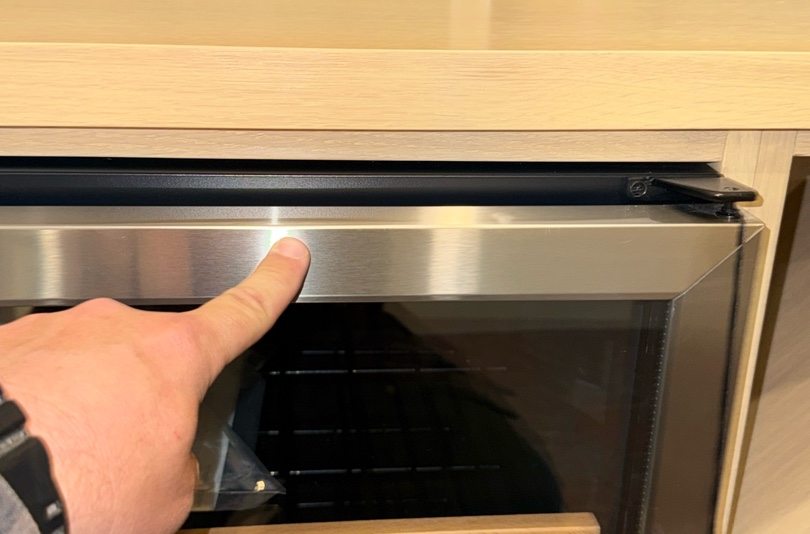

Action: Improve / Secure T: 🟤 Interior Fin L: Wine Room
Notes: Observation – Issue(s) should be monitored; plan for maintenance or correction as needed.
Action: Install &/or Replace T: 🟡 Electrical L: Island
Notes: Attention – Issue(s) should be addressed in a timely manner to prevent shock or equipment damage. This could lead to shock, overheating, or system failure.
Action: Further Evaluate/Improve
Notes: Attention – Issue(s) should be addressed in a timely manner. Further consequences may occur if not rectified.
Action: Improve / Adjust
Notes: Attention – Issue(s) should be addressed in a timely manner.
Action: Fix / Restore Function
Notes: Attention – Issue(s) should be addressed in a timely manner.
summary
Action: Further Evaluate/Monitor
Notes: Observation – Issue(s) should be monitored; plan for correction.

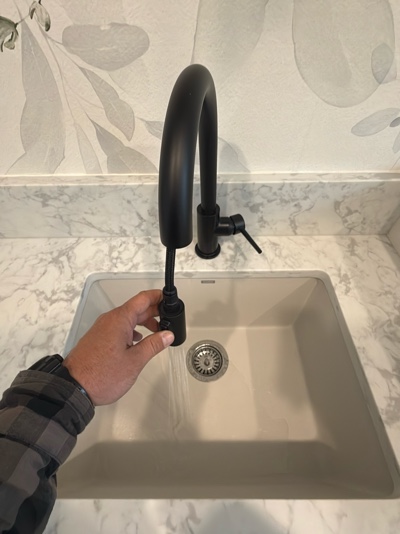

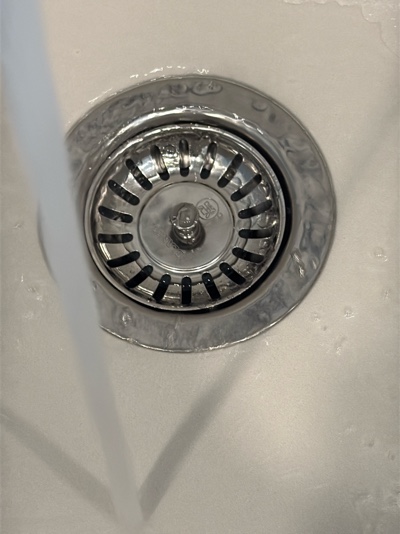

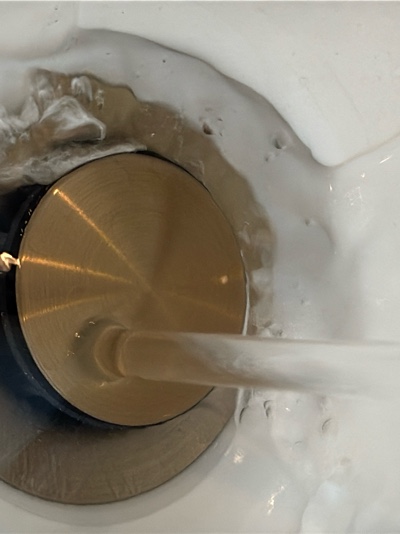

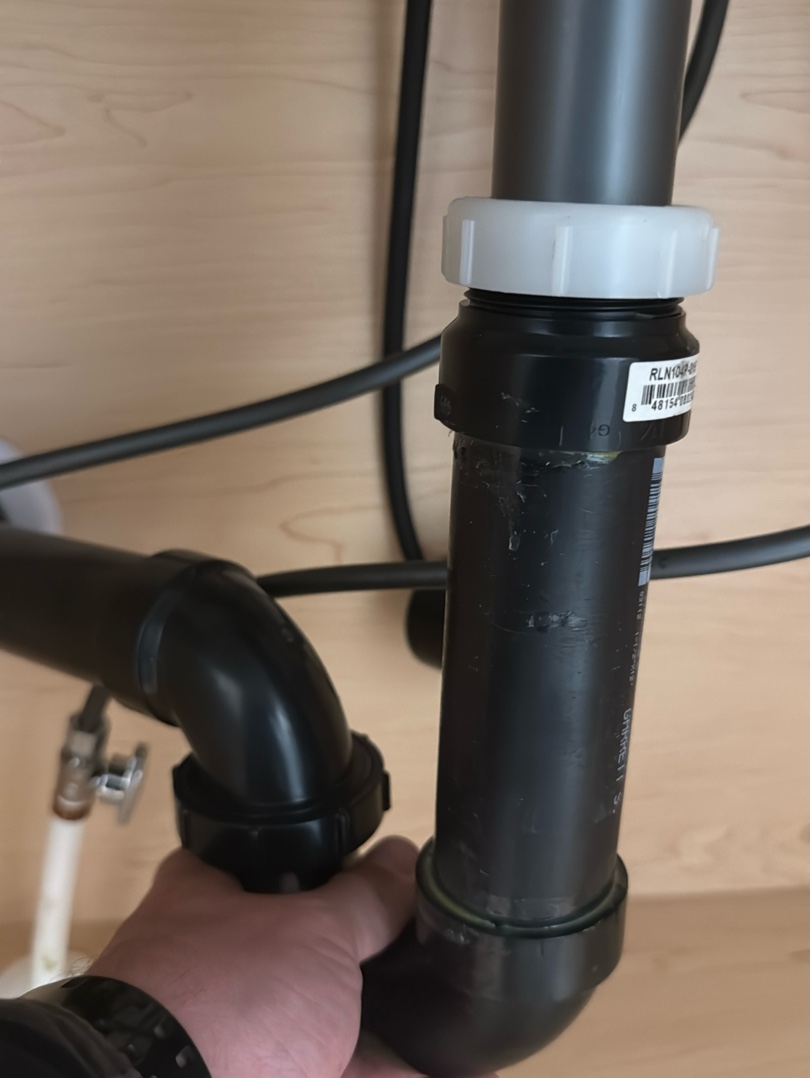

Action: Further Evaluate / Repair T: 🔵 Plumbing L: Laundry Sink
Notes: Observation – Issue(s) should be monitored; plan for maintenance or correction as needed.
Reason: Incomplete: Item was only partially installed, unfinished, or not fully functional at the time of inspection.
Action: Install &/or Replace T: 🔵 Plumbing L: Master Left
Notes: Attention – Issue(s) should be addressed in a timely manner. Further consequences may occur if not rectified.

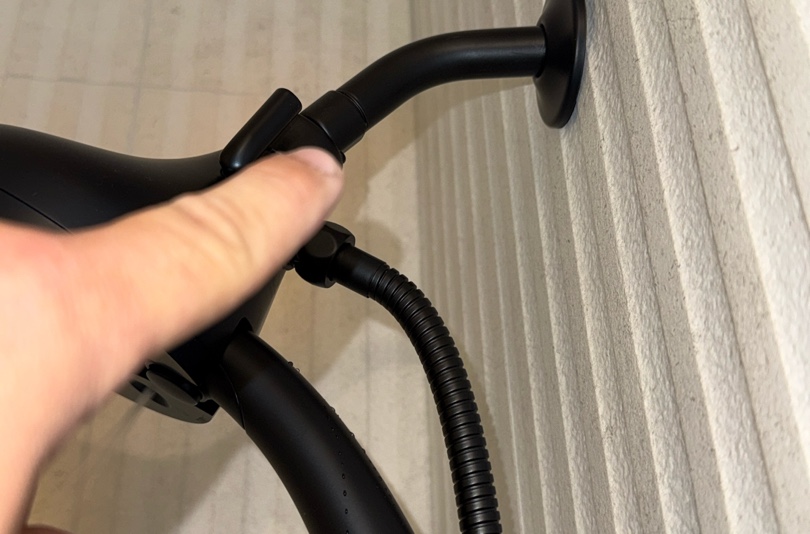

Action: Further Evaluate / Repair T: 🔵 Plumbing L: Master Right
Notes: Observation – Issue(s) should be monitored; plan for maintenance or correction as needed. Over time, this may affect performance.
summary
Action: Install &/or Replace T: 🟠 Ext-Envelope L: Master Window
Notes: Observation – Issue(s) should be monitored; plan for maintenance or correction as needed.
Action: Seal / Repair / Monitor T: 🔵 Plumbing L: Shared Bath
Notes: Observation – Issue(s) should be monitored; plan for maintenance or correction as needed.
Reason: Incomplete: Item was only partially installed, unfinished, or not fully functional at the time of inspection.
Action: Furthet Evaluate/Improve T: 🟡 Electrical L: Lower Left
Notes: Attention – Issue(s) should be addressed in a timely manner. This could lead to shock, overheating, or system failure.

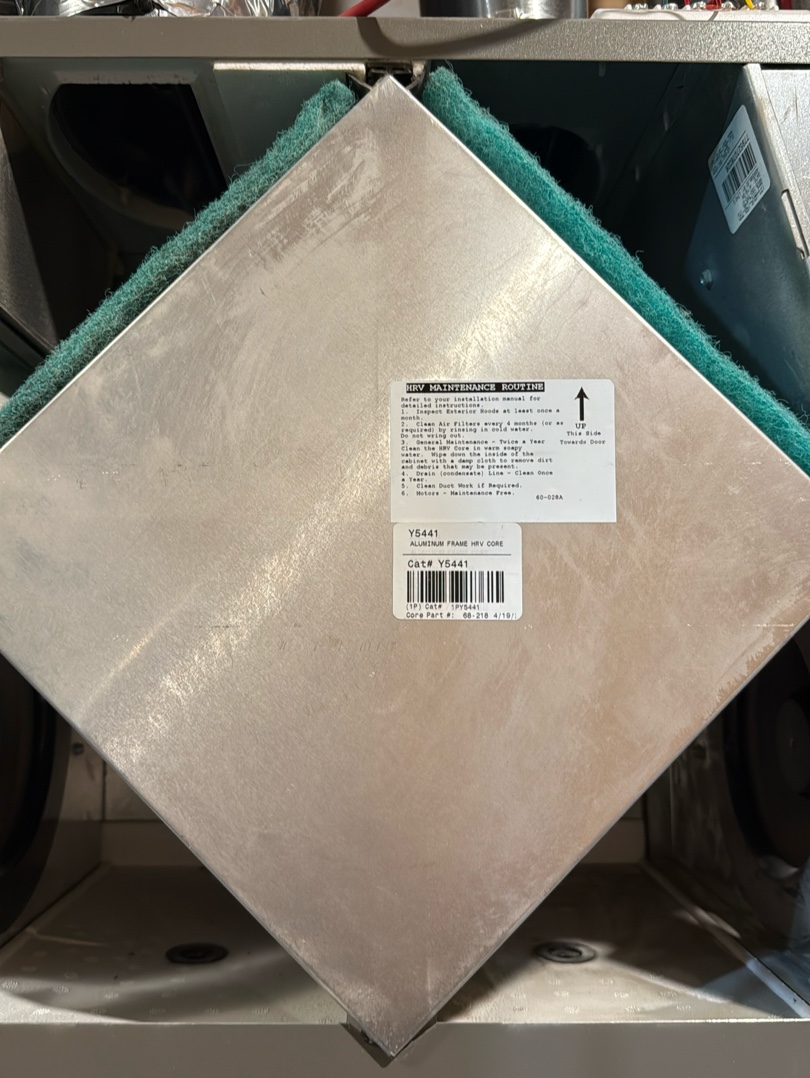

Action: Further Evaluate / Repair T: 🟢 HVAC L: Main/Basement
Notes: Attention – Issue(s) should be addressed in a timely manner. If left, performance may decline.
Action: Clean / Improve L: Mech Room
Notes: Attention – Issue(s) should be addressed in a timely manner. Further consequences may occur if not rectified.
summary
Action: Further Evaluate / Repair T: 🟢 HVAC L: Main/Basement
Notes: Attention – Issue(s) should be addressed in a timely manner.

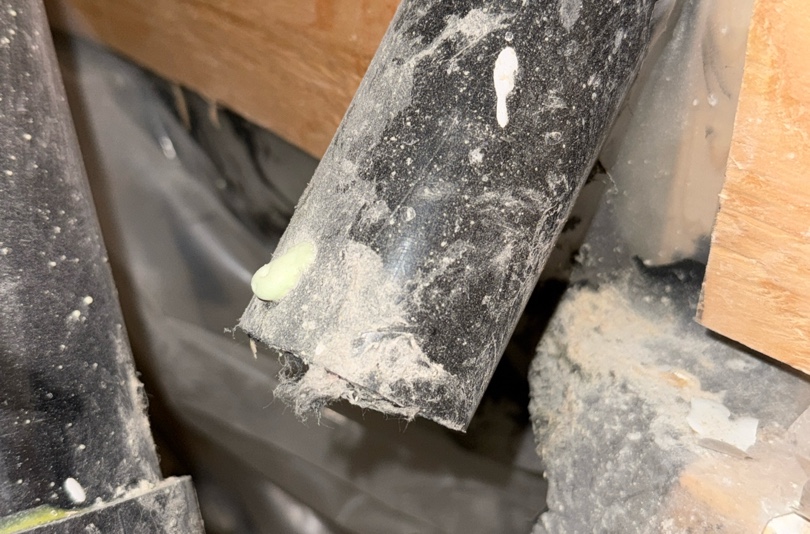

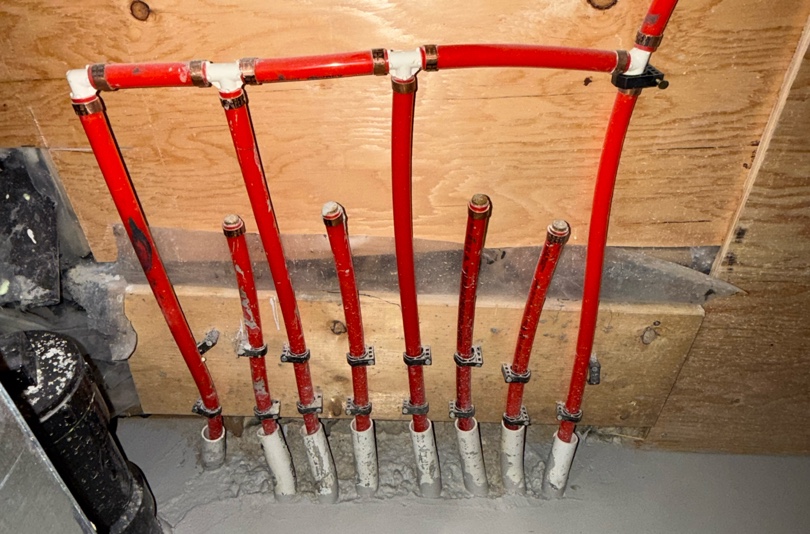

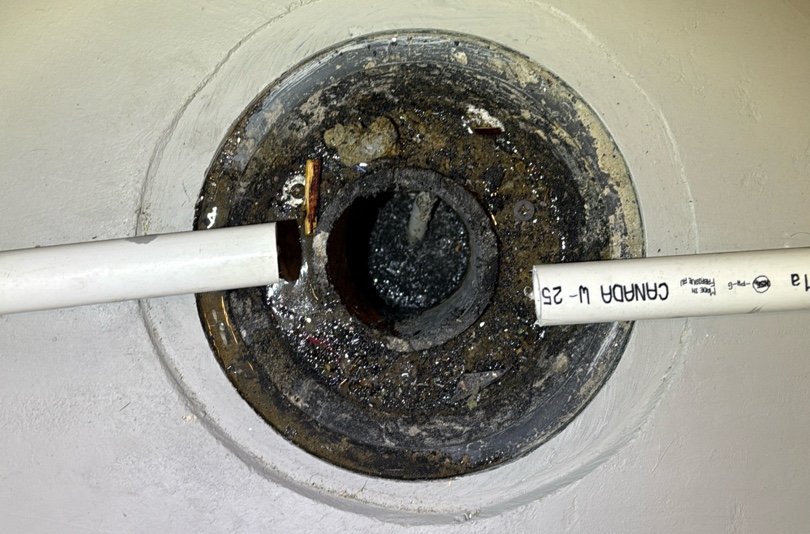

Action: Improve / Extend T: 🔵 Plumbing L: Mech Room
Notes: Attention – Issue(s) should be addressed in a timely manner.
| R BACK TO SUMMARY |
|
Report Legend
Explains reports symbols.
|
|
|
|

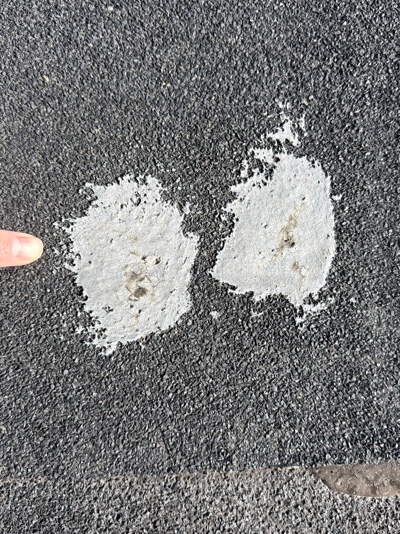

Roof Observation - (2)

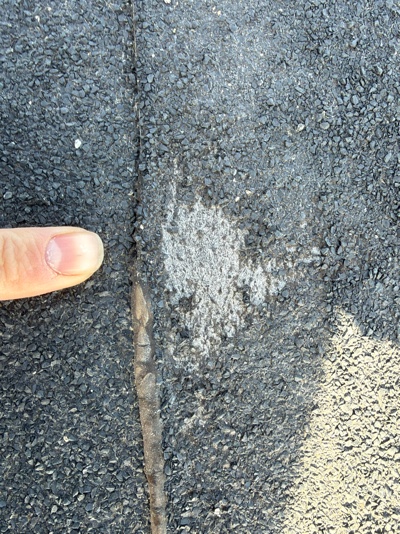

Torch down overlap!
|
|
|
|

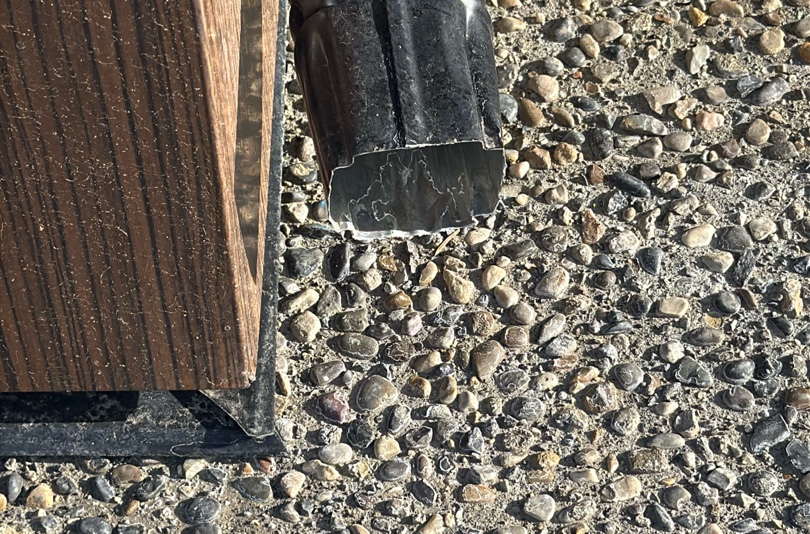

Splash Guard
Are thin, small pieces of vinyl that are installed on gutters to direct water back into the gutter.
|
|
|
|

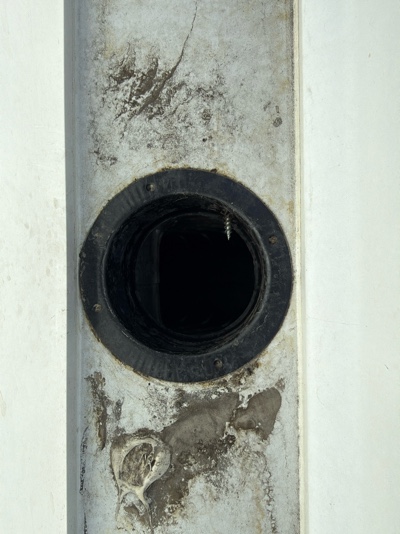

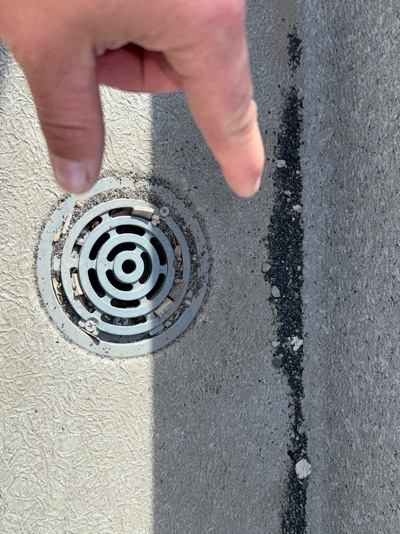

Gutter(s) -Trough(s)
Inspected for debris, drainage flow, interior condition and visible standing water.
|
|
|

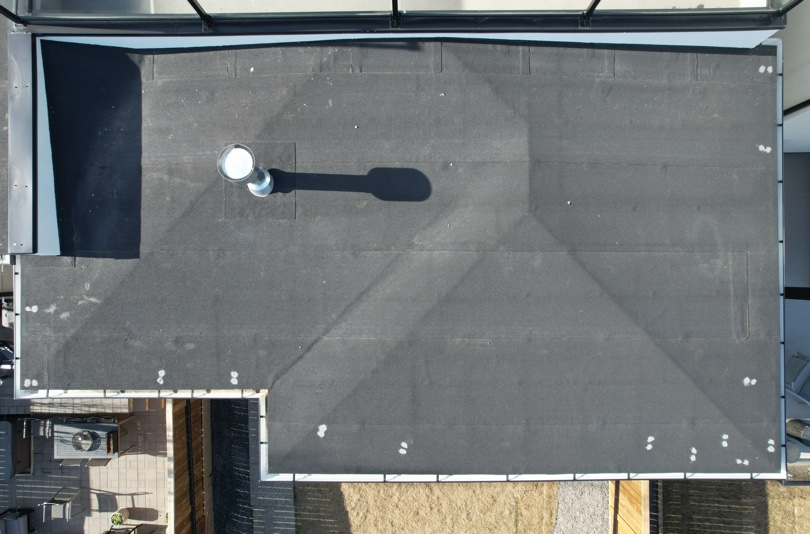

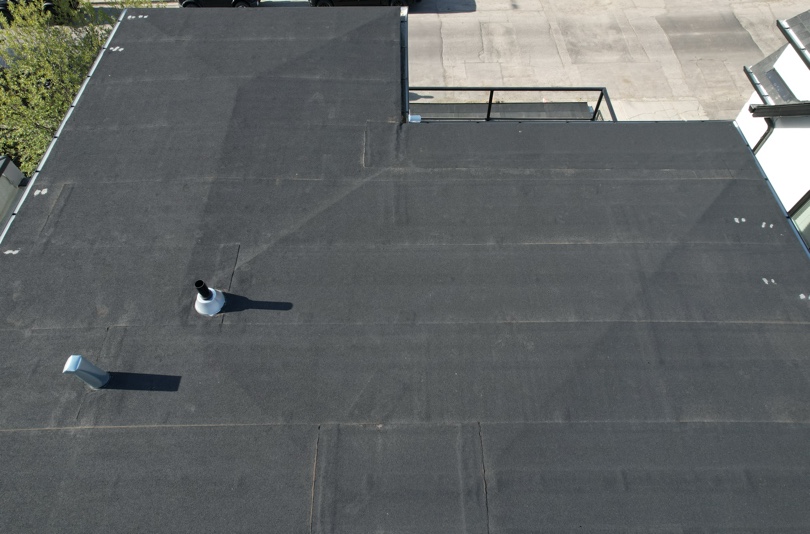

Overview Roof / Property
Survey performed to visually document roof coverings & associated components.This includes material condition, install, flashing, penetrations, drainage paths, & anomalies. See also Insurance Section.
|
|
|
|
Overview Roof (2)
Front aerial view!
|
|
|
|
Overview Roof (3)
Back aerial view!
|
|
|
|
Overview Roof Utilitie(s)
Visually inspected for secure mounting, proper sealing, venting, clearances, and signs of damage, leakage, or improper installation.
|
|
|
|
Gram-Shot
We’ve included a couple additional drone shots to provide a broader perspective of the property and its surroundings. These images offer a unique vantage point, showcasing the property’s placement within the neighborhood, nearby features, and the overall landscape.
|
|
|
|
Gram-Shot ⭐️
❤️
|
|
|
|
The Roof Baseline O.W.L
𝗥𝗼𝗼𝗳 – 𝗔𝗿𝗲𝗮𝘀 𝗜𝗻𝘀𝗽𝗲𝗰𝘁𝗲𝗱Roof components are reviewed for presence, general condition, visible damage, and basic performance characteristics where applicable. This includes commonly accessible roofing materials, flashings, roof penetrations, drainage features, and visible edges and transitions. The review focuses on observable conditions from accessible vantage points and does not include destructive testing or prediction of remaining service life. |
|
| E BACK TO SUMMARY |
|
Report Legend
Explains reports symbols.
|
|
|
|

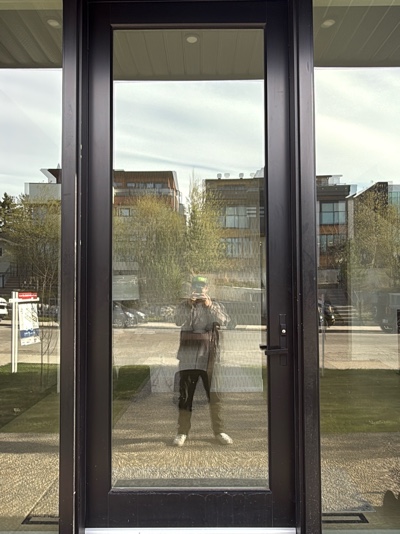

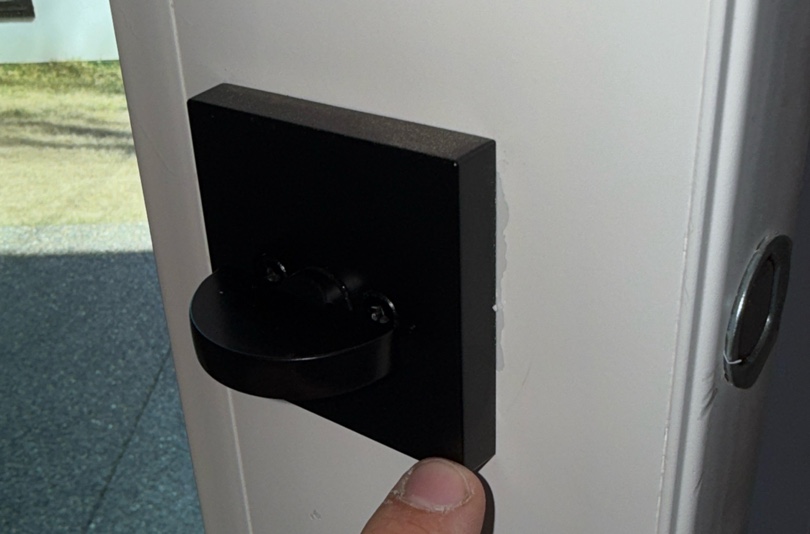

Exterior Entry Door(s)
Inspected for condition, glazing, sealing, flashing, alignment & operation.

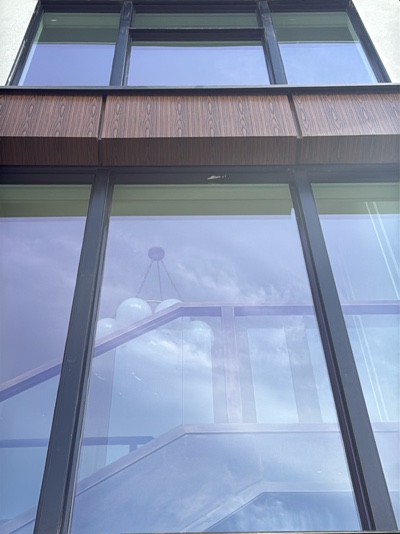

Window(s) & Trim-Casing
Reviewed for glazing, condition, cracking, flashing, gaps & sealant deterioration.
|
|
|
|

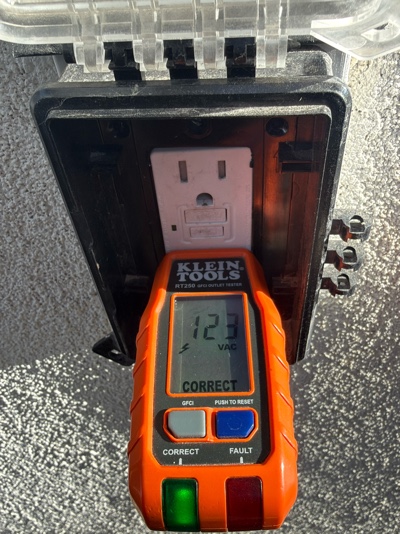

Exterior Outlet(s).
Inspected for safety, GFCI presence (using a standard plug tester.)

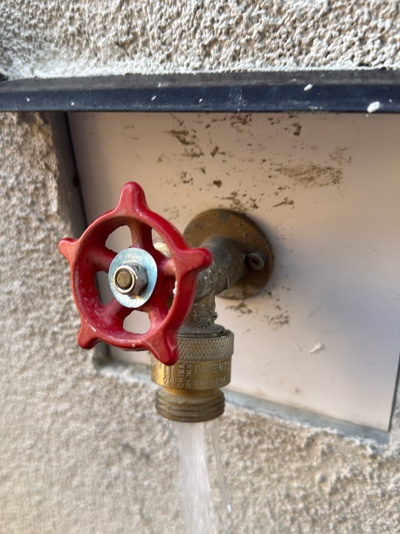

Exterior Faucet(s)
Inspected for location, flashings, sealant, operability, anti-siphon & leakage.
|
|
|
|

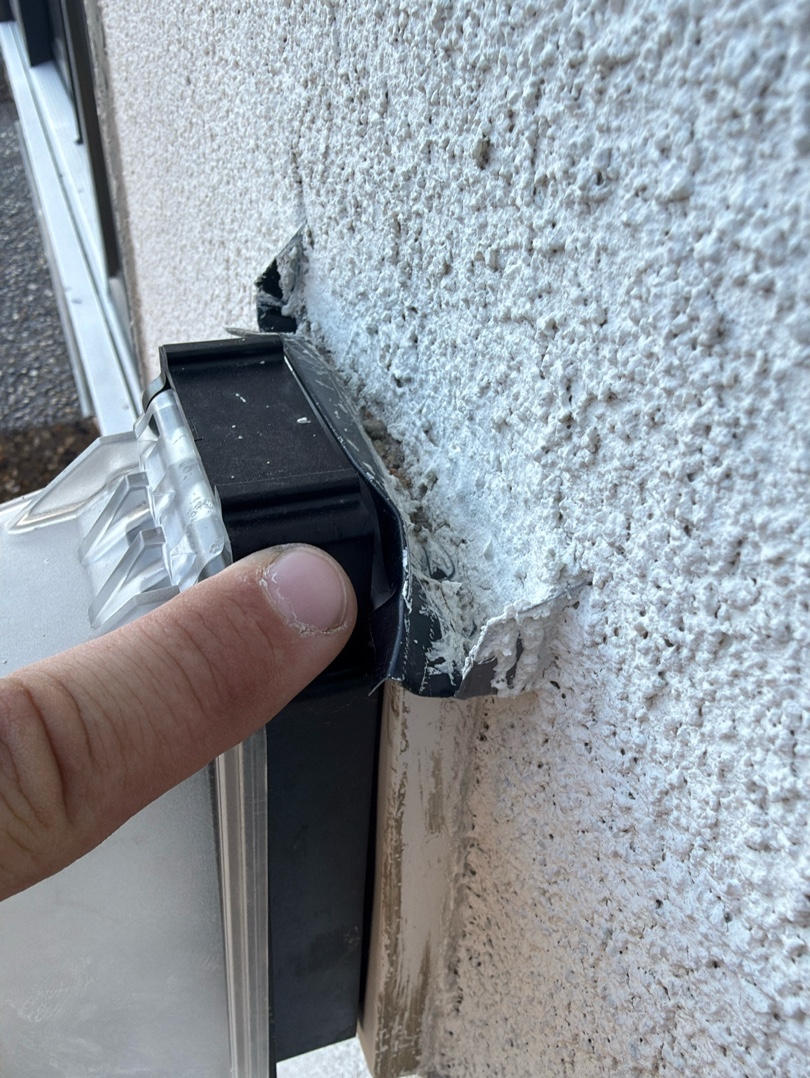

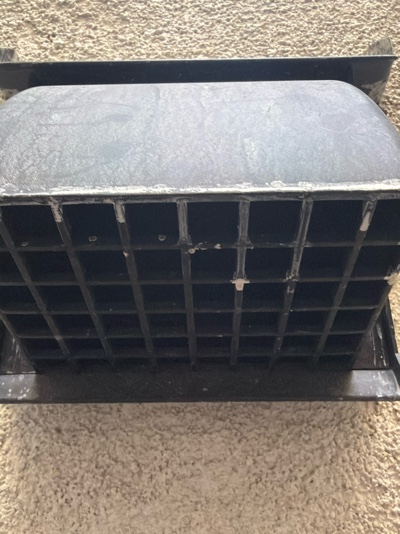

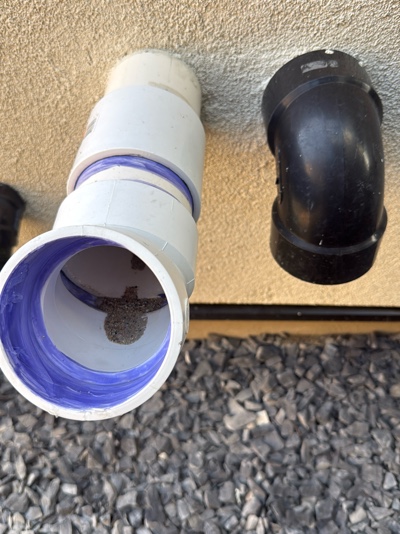

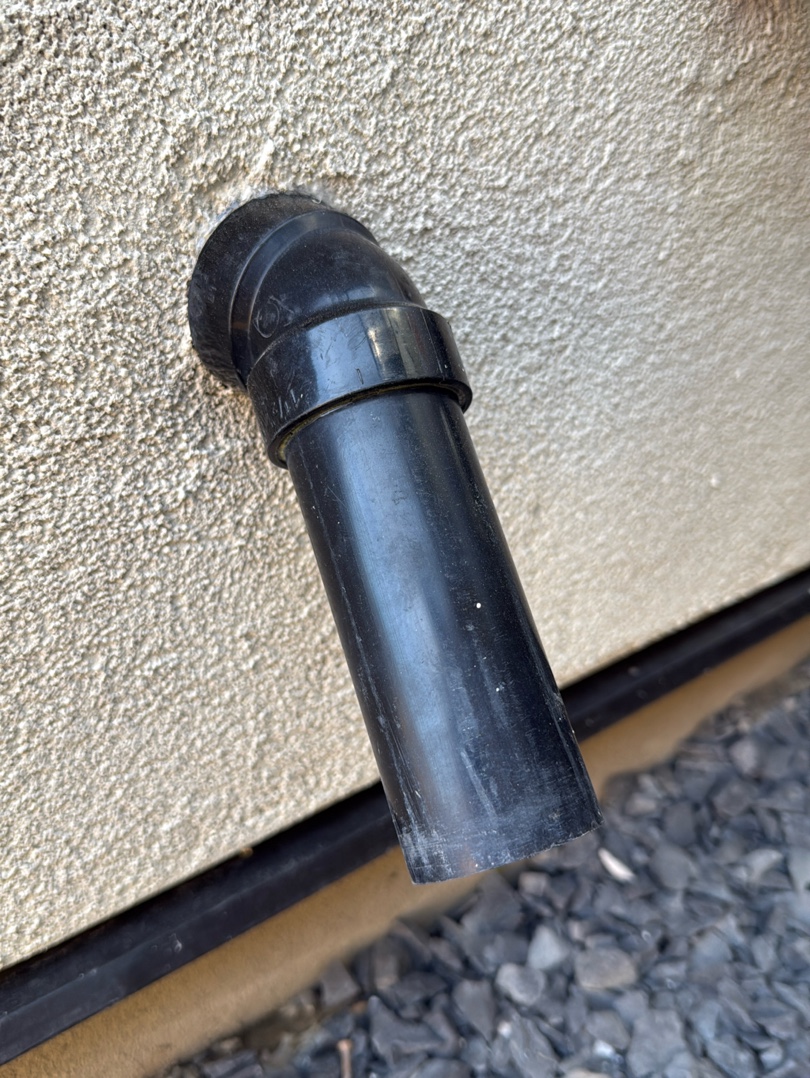

Additional Vent(s)
⠀⠀⠀⠀⠀⠀⠀⠀
|
|
|

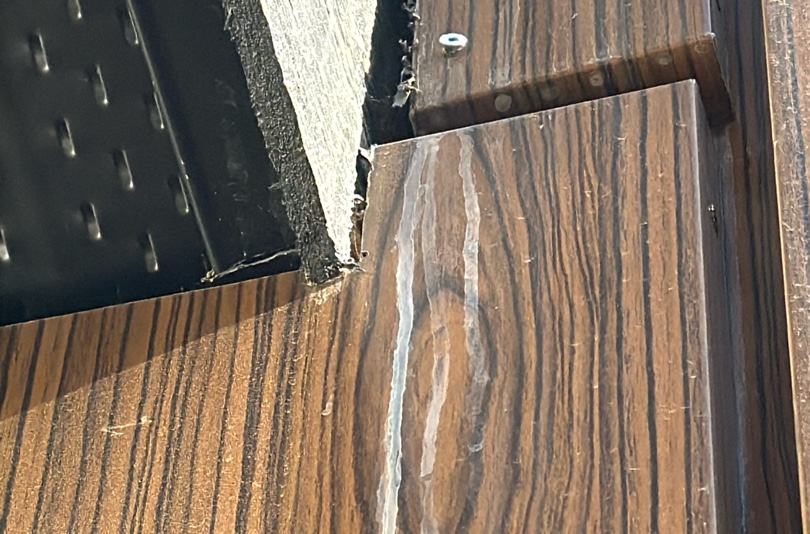

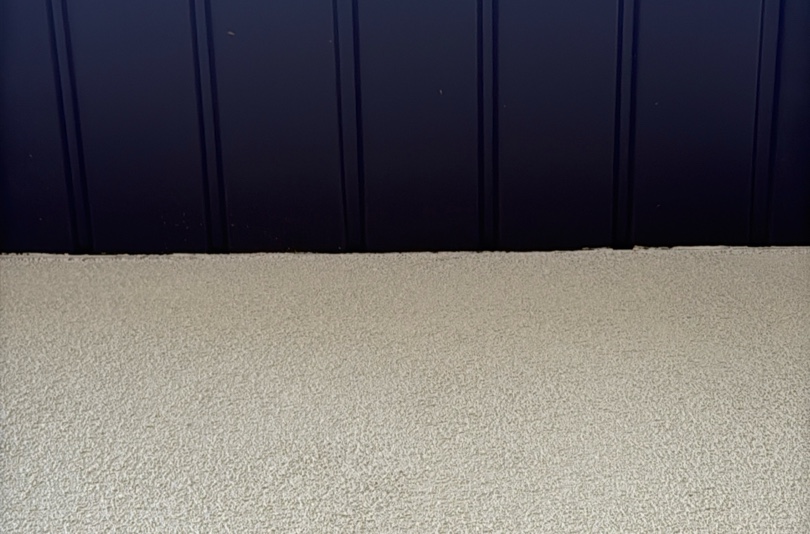

Cladding / Material(s)
Inspected for cracks, gaps, clearance from grade, installation & surface deterioration. See also Insurance Section.
|
|
|
|

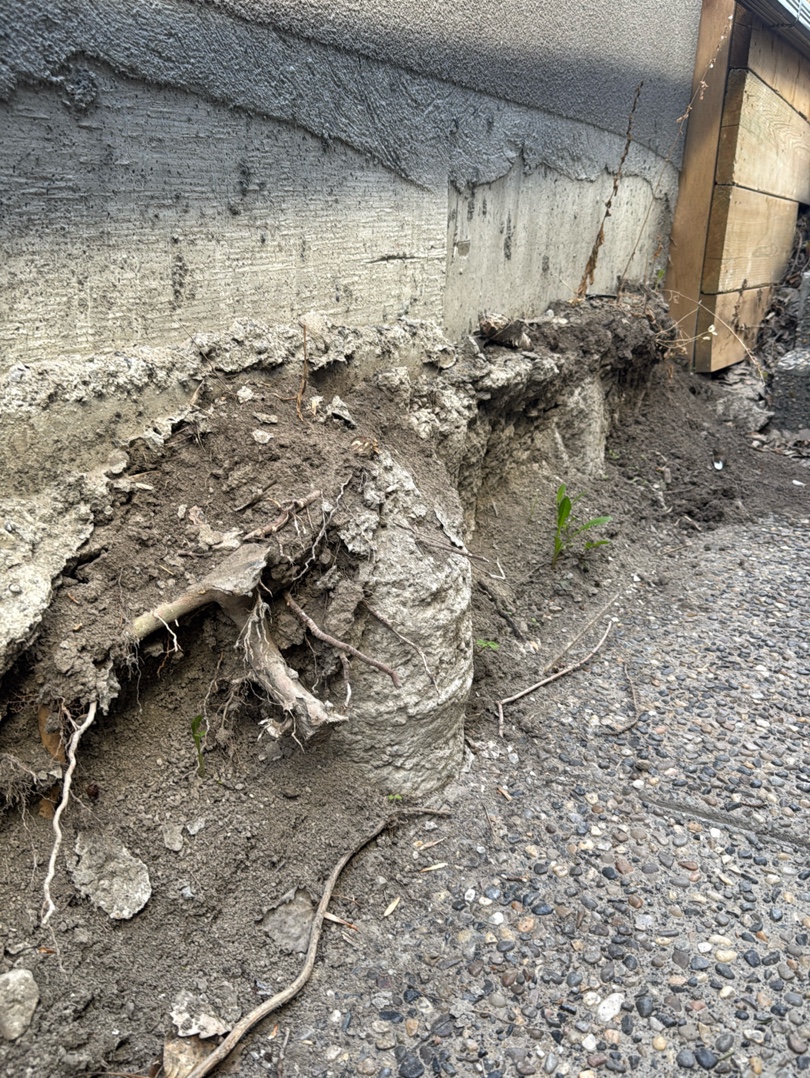

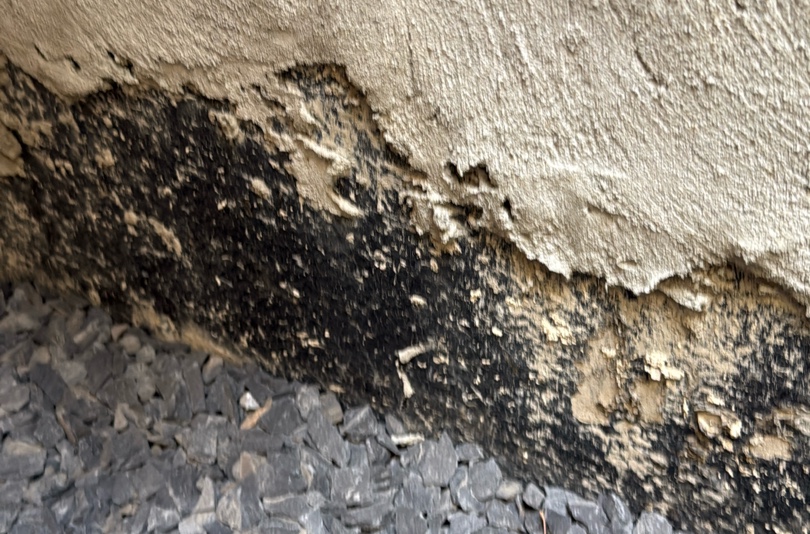

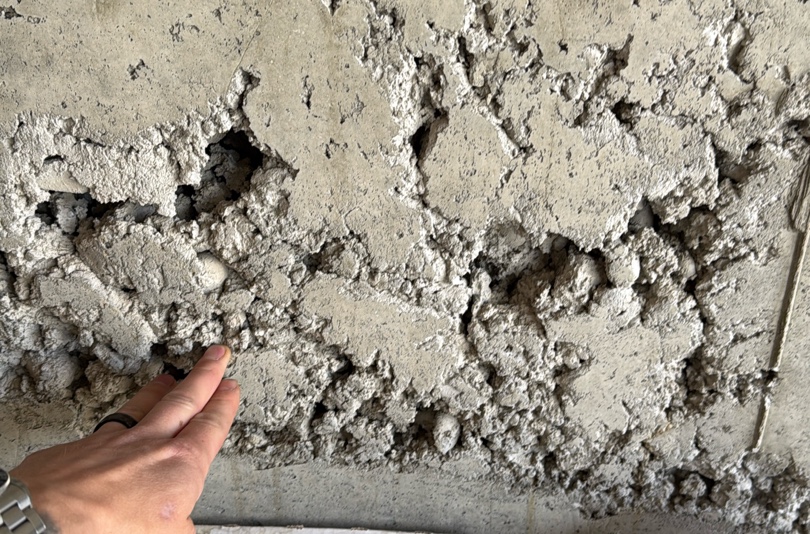

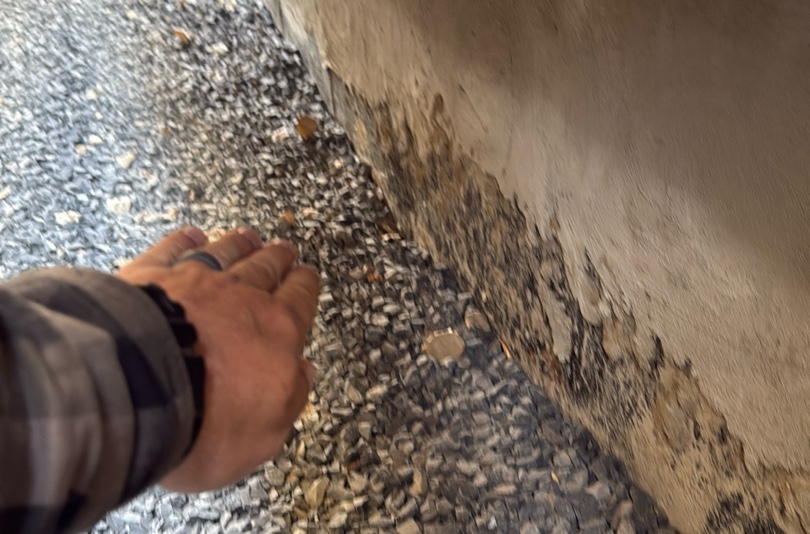

Foundation / Structure
Inspected for flaking, cracking, displacement, moisture indicators & visible movement.
|
|
|
|
|
|
|
|
|
|
|
|

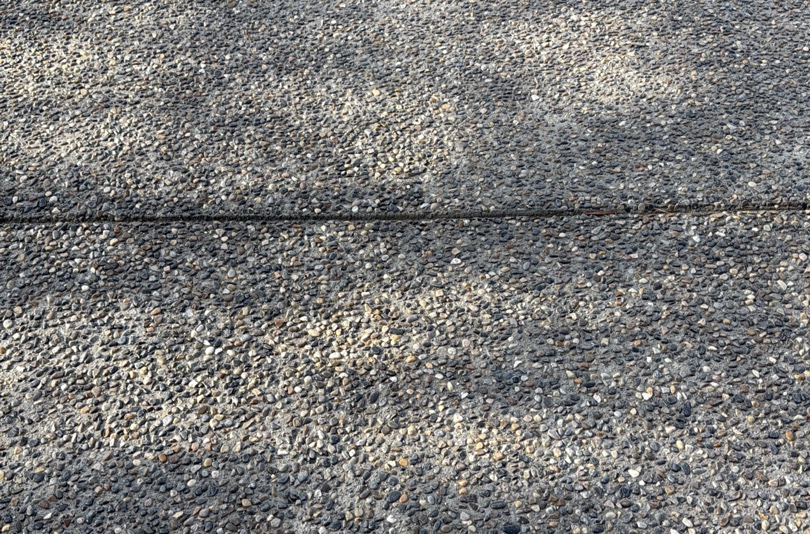

Exterior Pathway(s)
Inspected for surface condition, levelness, cracking, trip hazards & drainage affecting safe use and water flow.
|
|
|
|
|
|
|
|

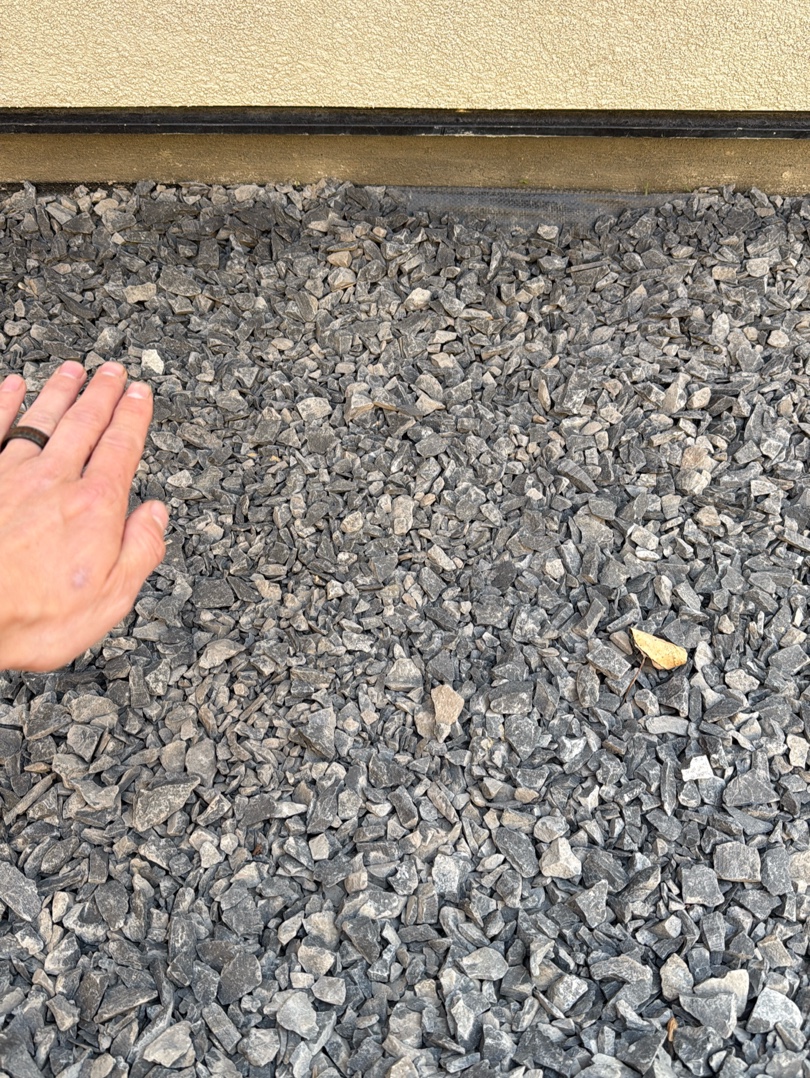

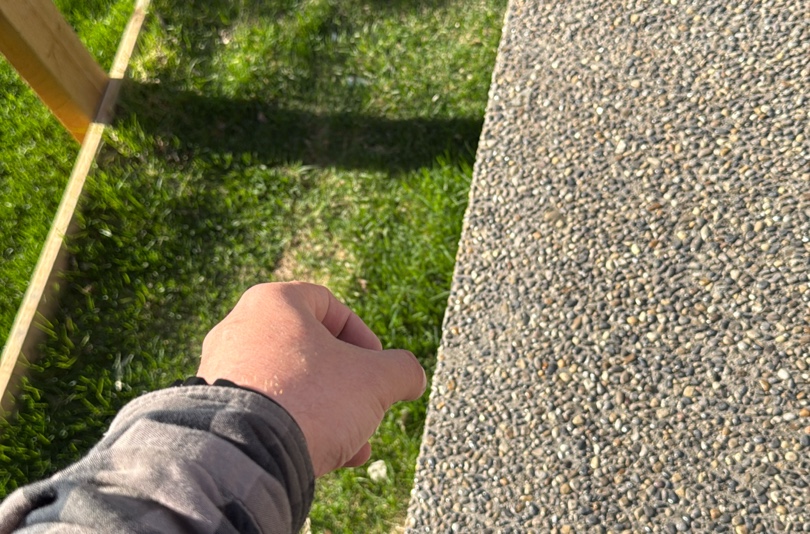

Grading & Drainage Baseline
Inspection of grading, pathways, flatwork, and drainage focused on visible slope, surface condition, and water flow around the structure. Limited to observable conditions at time of inspection.
|
|
|
|
|
Focus Feature Page
These are photos related to the same component or system.

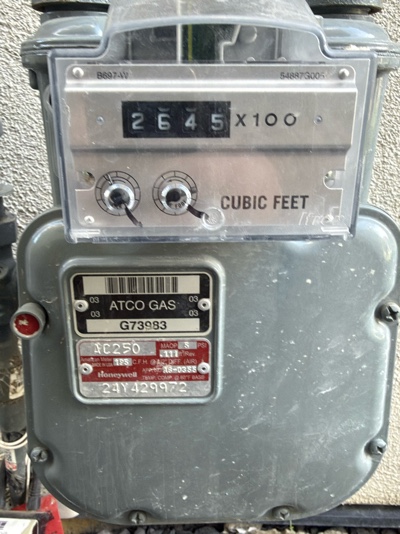

Gas Meter(s) ⠀⠀
Observed for secure mounting, clearance, corrosion, regulator condition & visible gas line connections.
|
|
|
|

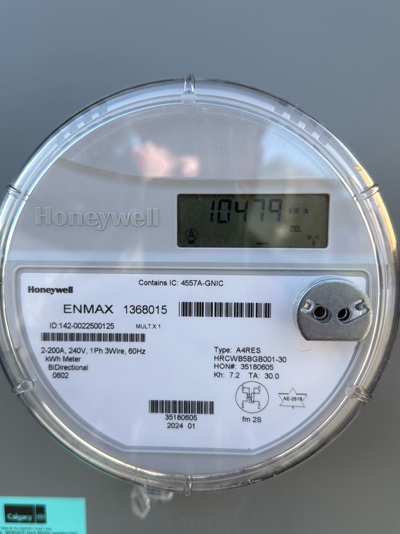

Electrical Service Meter(s)
Observed for presence, secure mounting, cover condition, clearances, conduit connections & visible service wiring concerns.

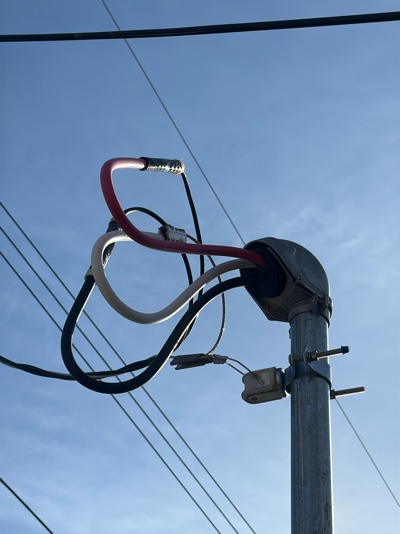

Electrical Entry.
Observations include service attachment, drip loop, clearance & visible damage or corrosion
|
|
|
Power Down, Save Up.
To boost energy efficiency, switch to LED lighting and turn off lights when not in use. Use ceiling fans and set thermostats a few degrees higher in summer and lower in winter. Unplug electronics when not in use and choose ENERGY STAR® appliances. Lower your water heater to 120°F and insulate hot water pipes. Keep filters clean and schedule regular maintenance on heating and cooling systems.
|
|
|
|
|
Focus Feature Page
These are photos related to the same component or system.

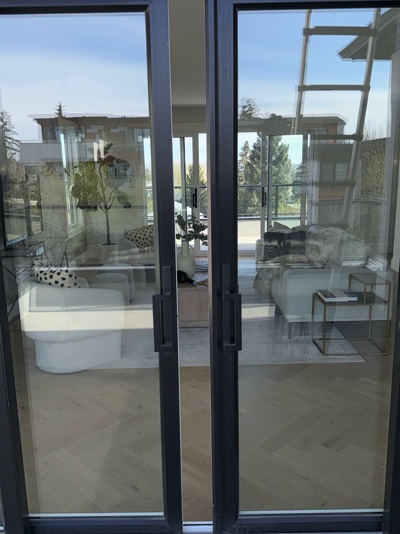

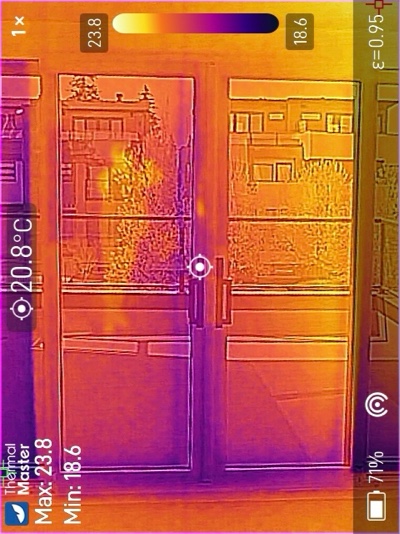

Balcony Access / Door(s)
Inspected for sealing, glazing, hardware, drainage, & signs of damage, air leakage, or intrusion.
|
|
|
|

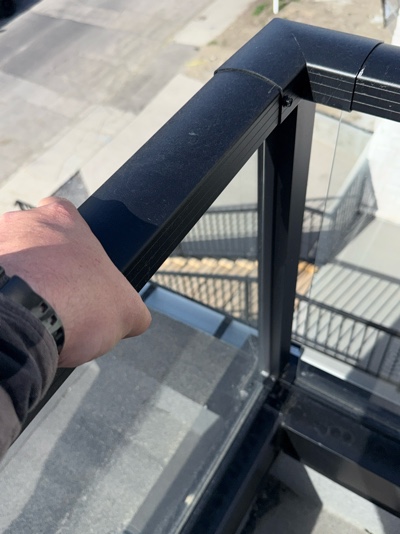

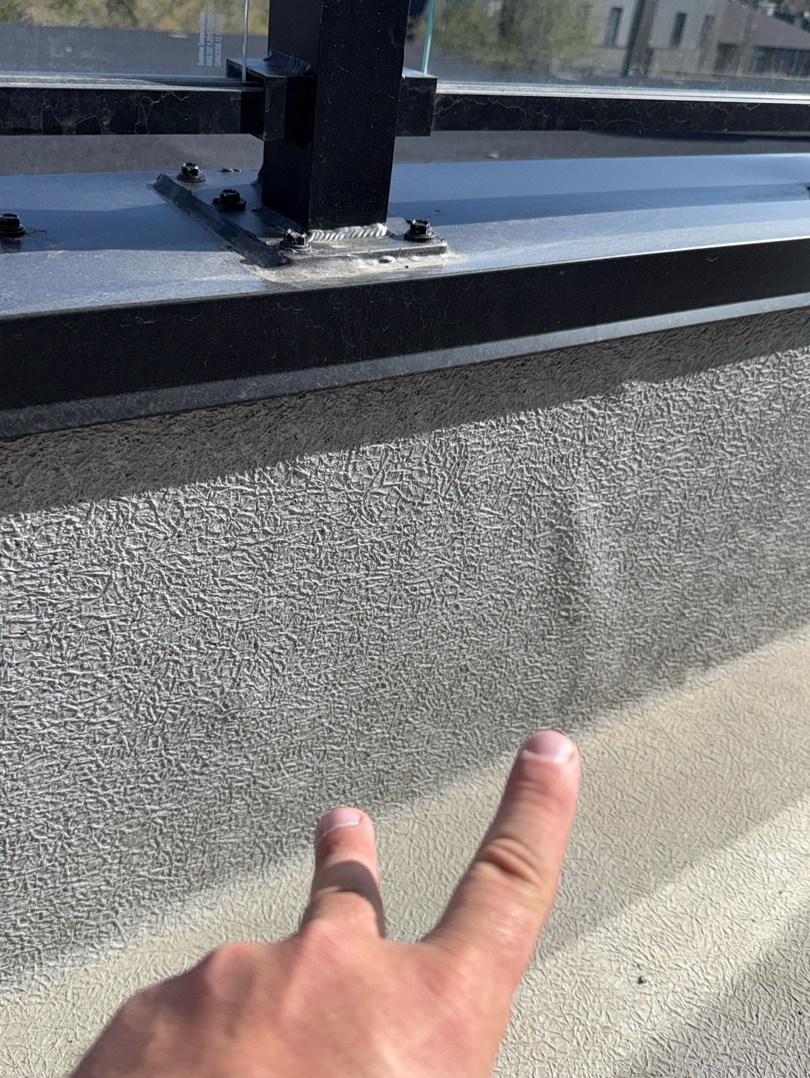

Balcony Guards / Railing(s)
Inspected for attachments, height, stability, & signs of damage, movement, or deterioration.
|
|
|
|
|
|
|
Retaining Wall(s)
Visually inspected for damage, cracks, leaning, bulging, moisture damage, and wear or compromised integrity.
|
|
|
|
Retaining Wall Baseline
Retaining Wall(s) – Areas Inspected Components are reviewed for presence, general condition, and visible signs of damage or deterioration where accessible. This includes retaining wall faces, caps, posts or reinforcing elements, drainage provisions, and adjacent grading or surface conditions. Accessible areas are checked for cracking, bulging, leaning, settlement, displacement, moisture staining, or erosion at the wall and surrounding soils. The review is limited to observable conditions without excavation, dismantling components, or evaluating concealed footings, reinforcement, or subsurface drainage systems. |
|
|
|
⚠️ Exterior General Notes
1. Cladding: Visible fading, discoloration, and general wear from exposure.
|
|
|
|
Exterior Outlet
These differ from indoor outlets because they have generally should have a watertight covers to protect it.
|
|
|
|
|
|
|
|

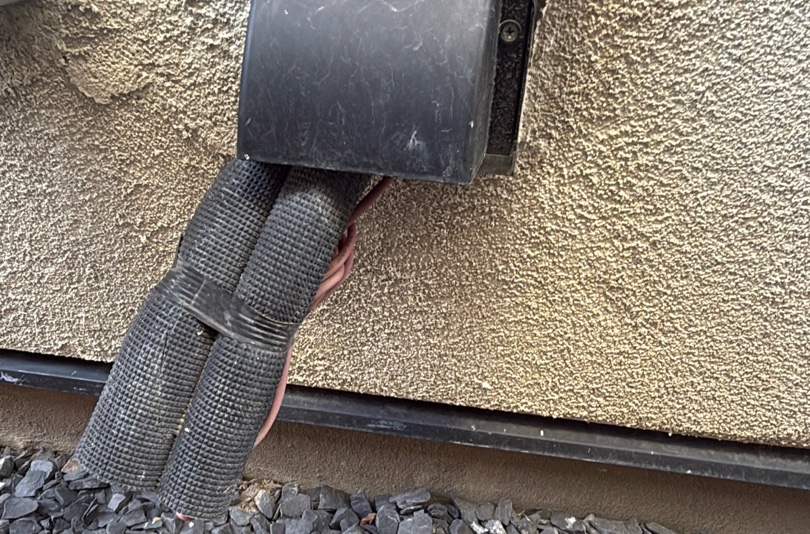

Ac Rough In
Incomplete: Item was only partially installed, unfinished, or not fully functional at the time of inspection.. Not Inspected
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
The Exterior Baseline
𝗘𝘅𝘁𝗲𝗿𝗶𝗼𝗿 – 𝗔𝗿𝗲𝗮𝘀 𝗜𝗻𝘀𝗽𝗲𝗰𝘁𝗲𝗱Exterior components and finishes are reviewed for presence, general condition, visible damage, and basic operation where applicable. This includes commonly accessible elements such as exterior walls and cladding, doors and windows, trim and sealants, decks, steps, railings, porches, balconies, and visible foundation surfaces. Drainage features, surface grading, and other exterior elements that may affect moisture management and overall performance are also visually reviewed where present. |
|
| G BACK TO SUMMARY |
|
Report Legend
Explains reports symbols.
|
|
|
|

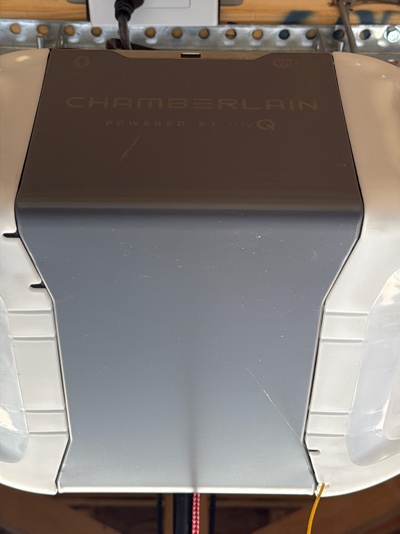

Garage Overhead Door Motor(s)
Review focused on the support mount, basic operation, safety & visible indicators affecting function.
Garage Safety Track Sensor(s)
Observations included sensor presence, alignment, height & response during basic operational testing.
|
|
|
|
|
|
|
Extra Photos
|
|
|
|
Garage Outlets
Tested for anomalies.
|
|
|
|
|
|
|
|

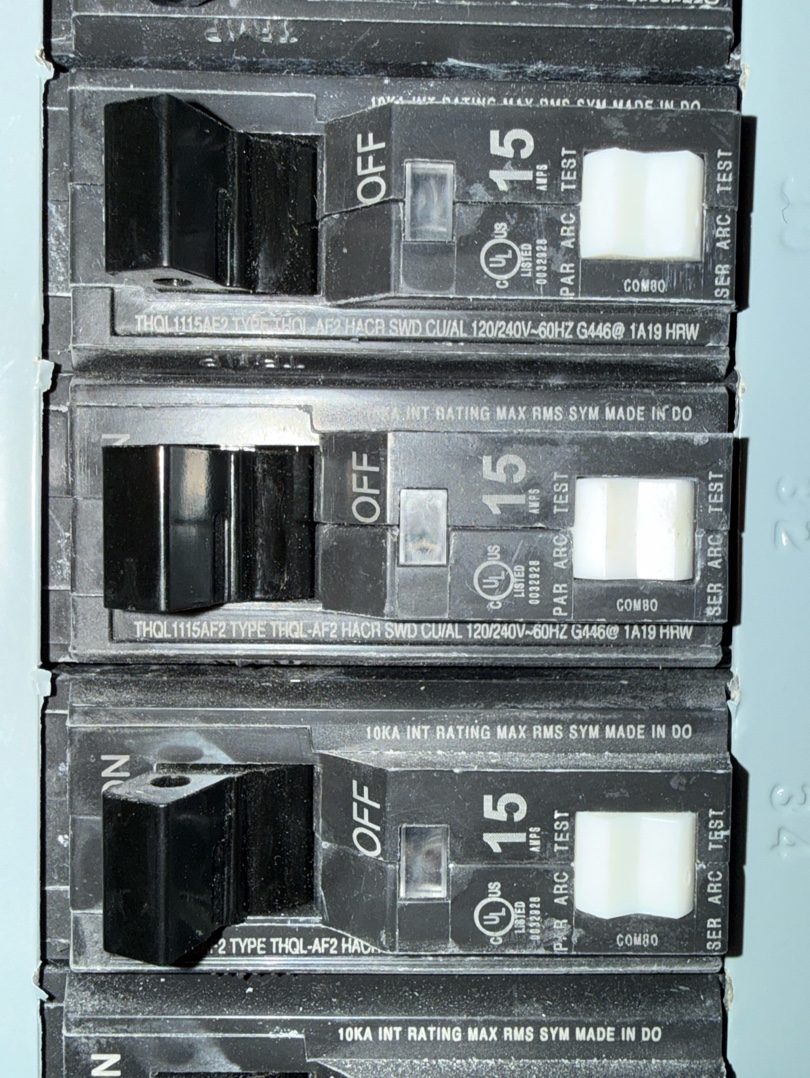

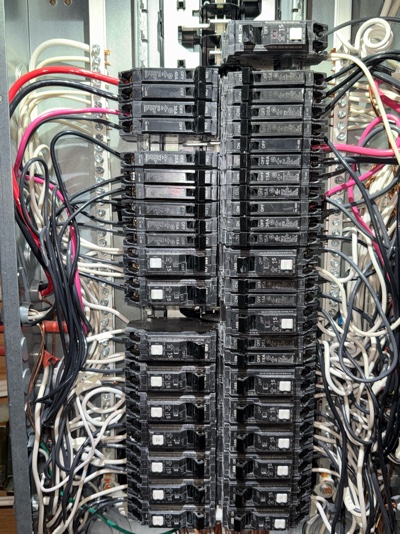

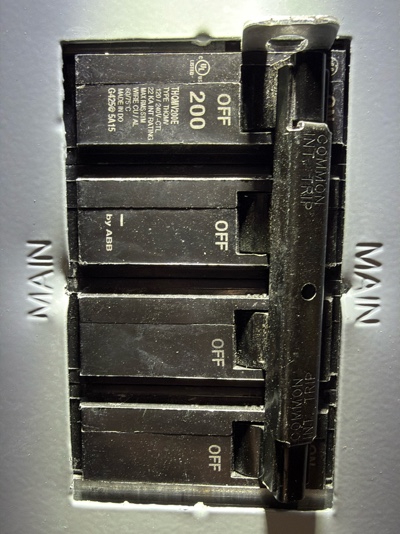

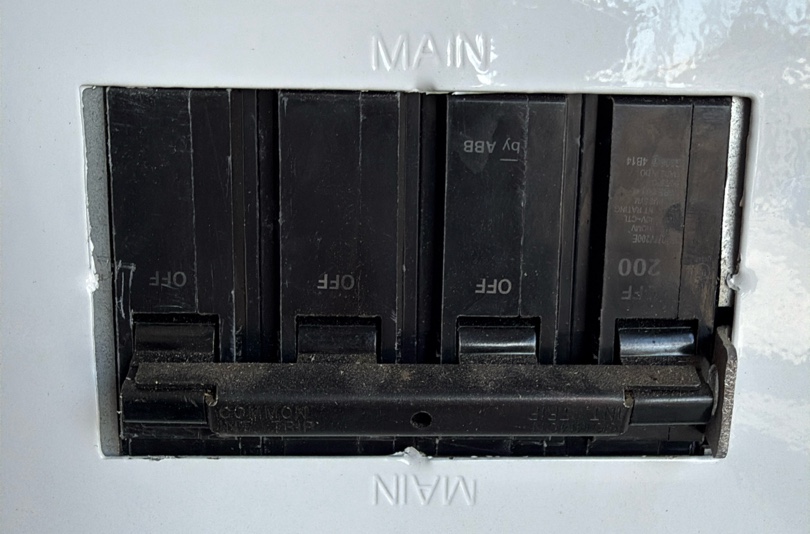

Garage Electrical Panel
Amp: 200 / The electrical panel typically consists of a main breaker, circuit breakers and bus bars
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Garage Maintenance.
Learning how to maintain a residential garage door is key to operating it efficiently. A malfunction can prevent you from taking your car out of the garage when you want to. Regular maintenance twice a year can make such mishaps less likely. INFO: Visually inspect the door, perform safety tests, examine hardware for defects, service the chain or belt, service seals & springs, clean the garage door surface, replace batteries & bulbs, & Reduce friction between the door & the stop. Adjust the opening & closing speed.
|
|
|
|
The Garage Baseline
Components are reviewed for presence, general condition, and visible signs of damage or deterioration where accessible. This includes wall and ceiling finishes, visible framing, overhead door assemblies, fire separation elements, service doors, and accessible electrical components. Accessible areas are checked for moisture damage, staining, cracks, corrosion, pest activity, and improper storage or clearance to combustibles. The review is limited to observable conditions without operating door openers, moving stored items, or evaluating concealed structural, electrical, or fire-resistance assemblies.
|
|
| I BACK TO SUMMARY |
|
Report Legend
Explains reports symbols.
|
|
|
|

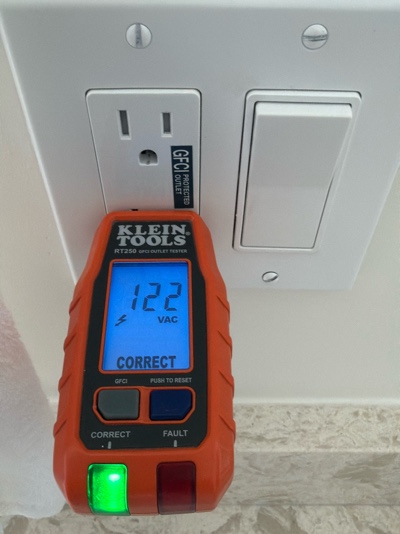

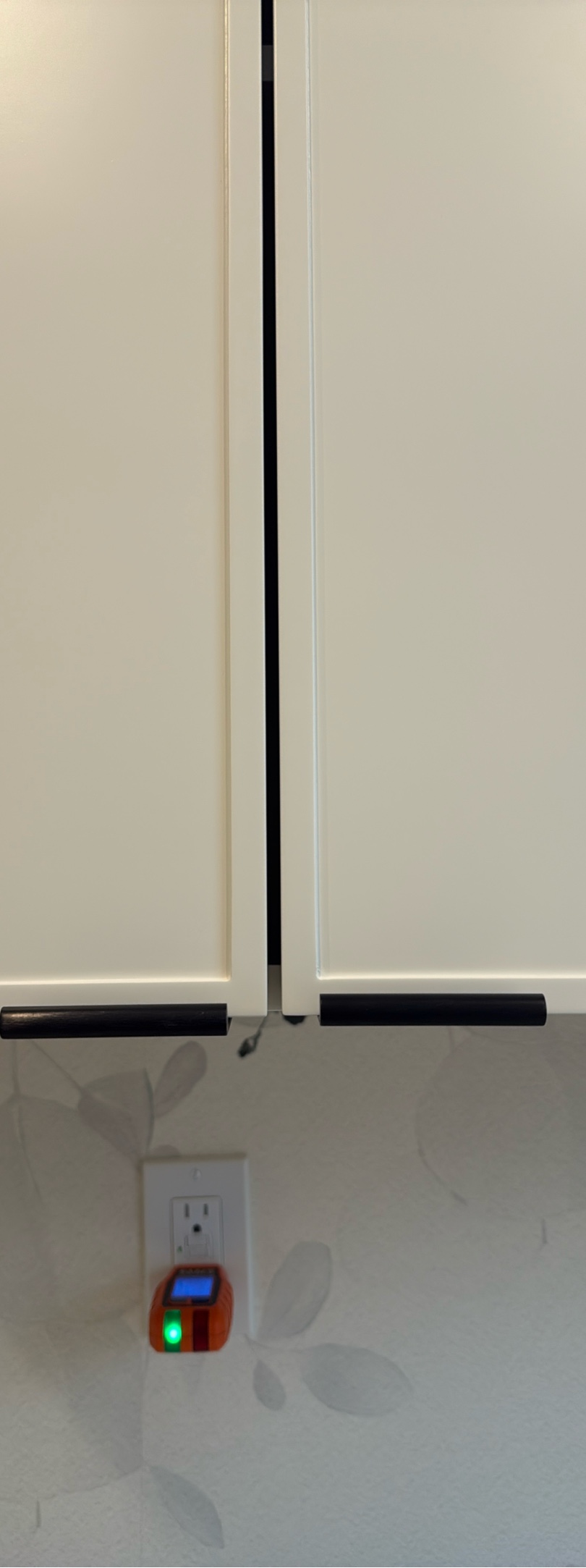

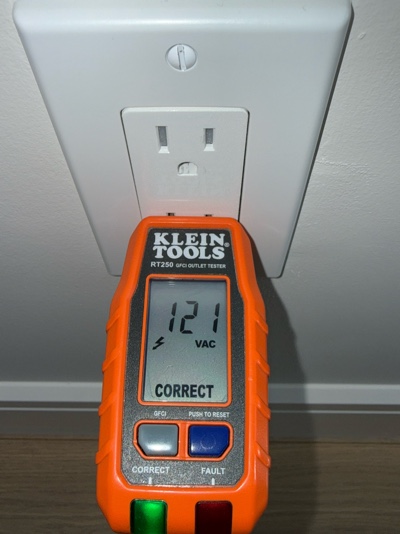

Outlet(s)
Inspected for operation, secure mounting, polarity, grounding, cover condition & visible wiring concerns.

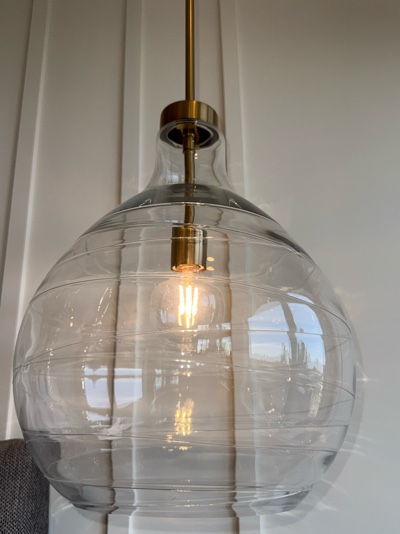

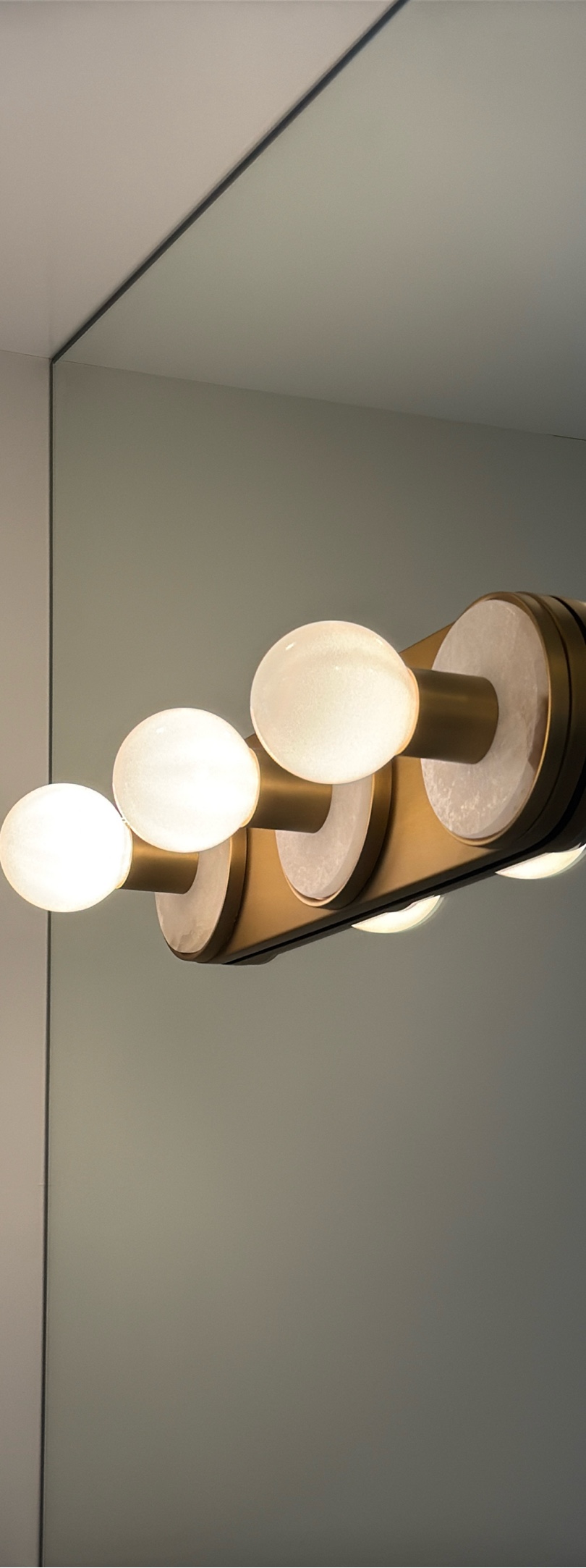

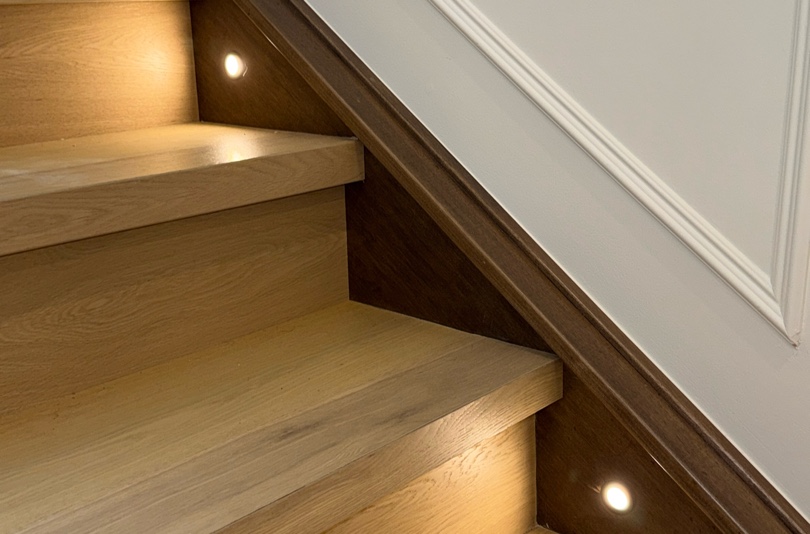

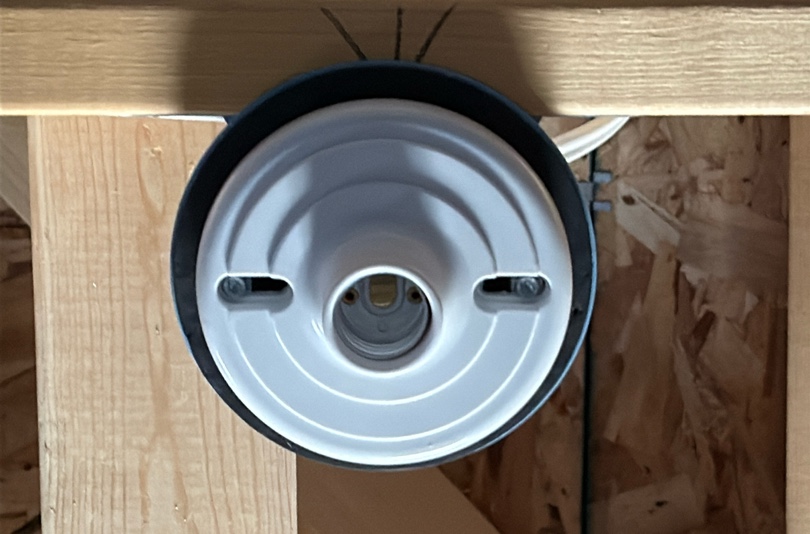

Interior Light(s)
Inspected for operation using normal switching procedures & visible deficiencies.
|
|
|
|

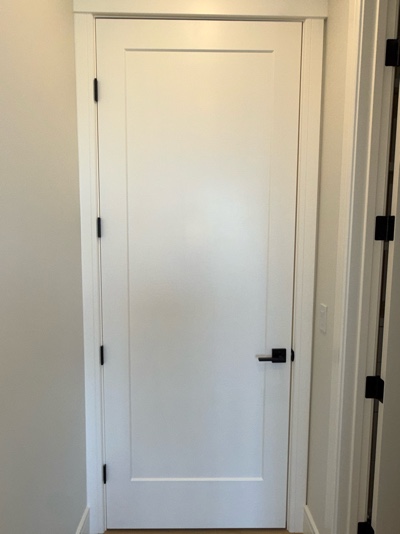

Interior Door(s) ⠀
Attention given to alignment, operation, hardware, hinges, latching, & indicators affecting use.

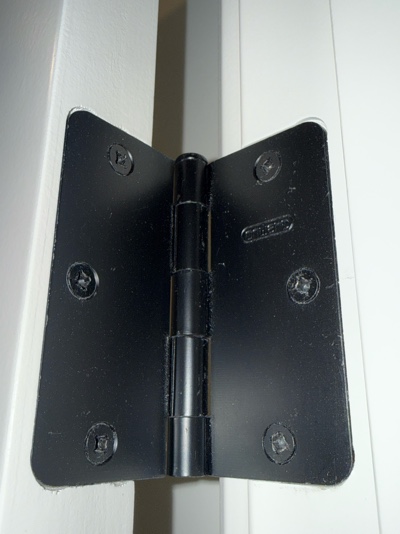

Door Hinge.
|
|
|
|

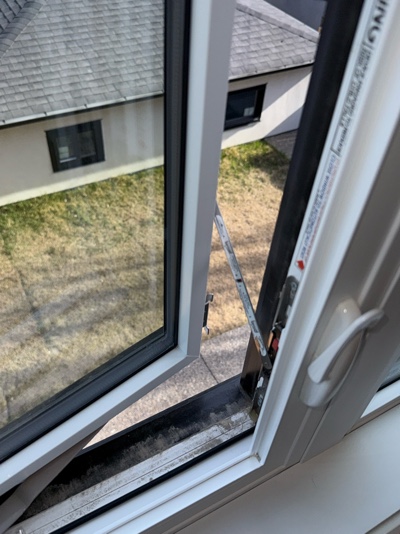

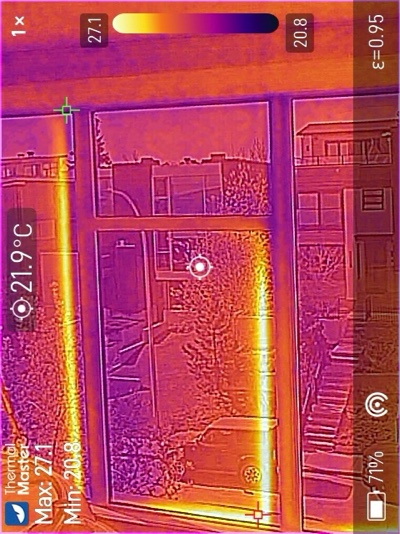

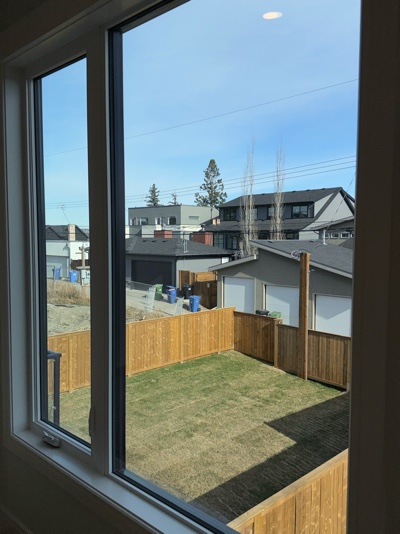

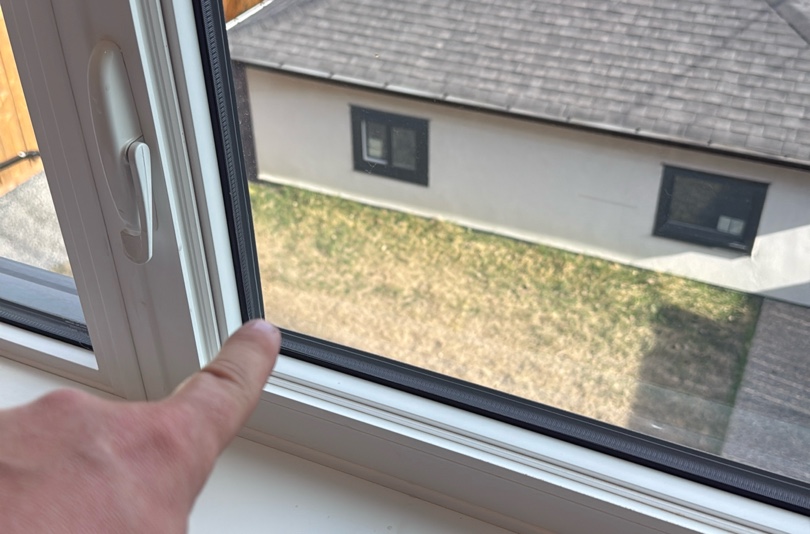

Interior Window(s) ⠀
Observations included glazing, operation, seals, & conditions affecting performance.
|
|
|

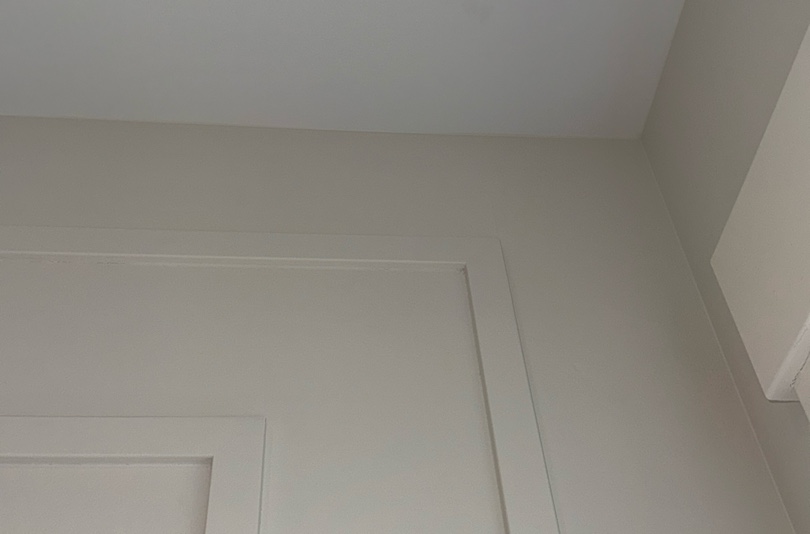

General Ceilings / Walls
Visually examined for common defects.
|
|
|
|

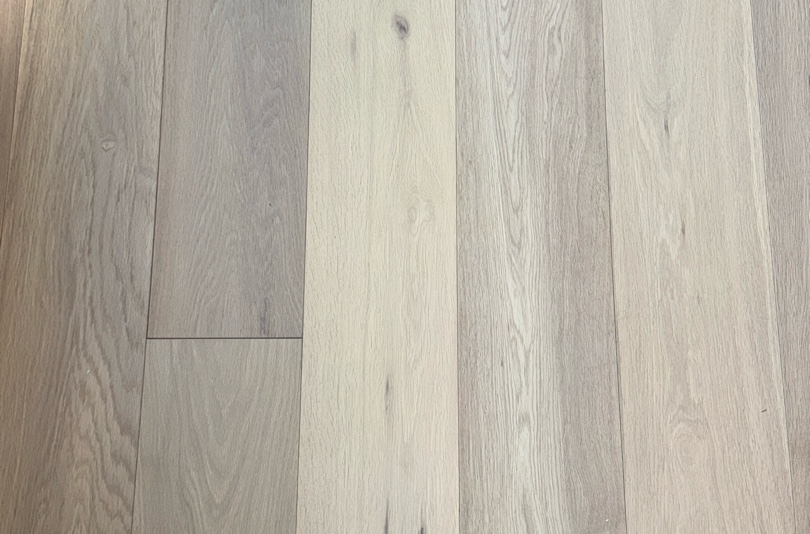

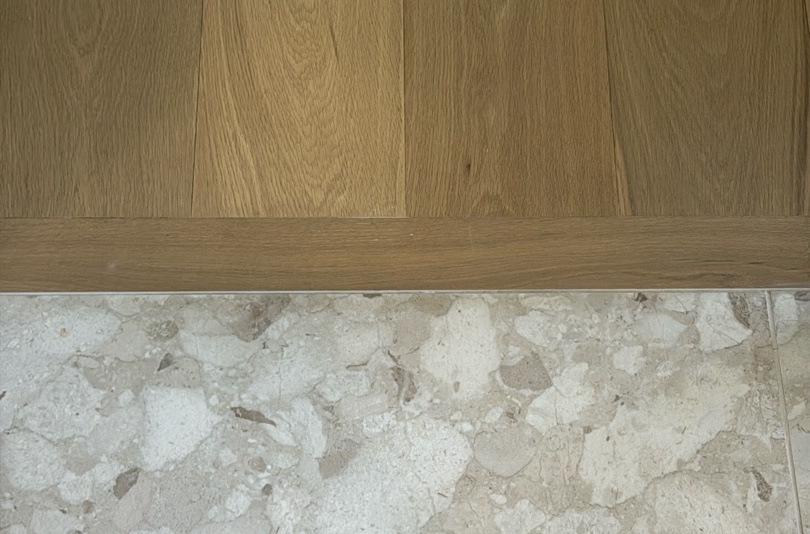

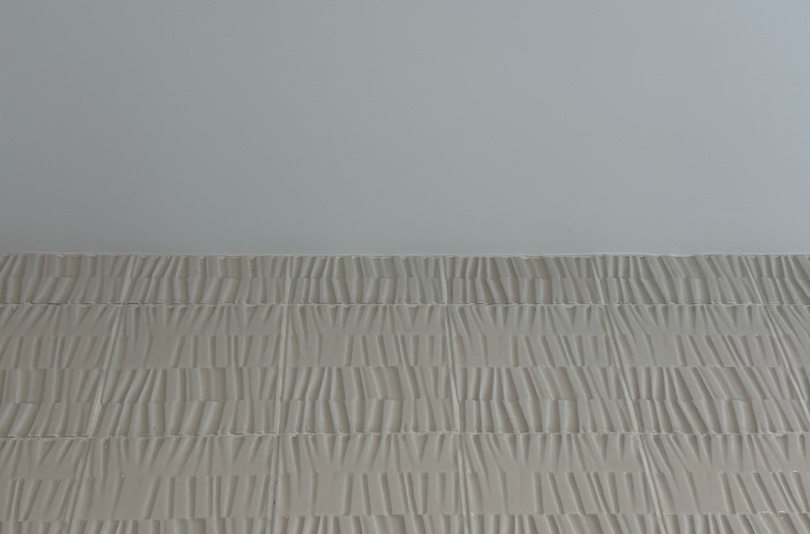

General Flooring
Visually examined for common defects.
|
|
|
|
About Humidity’
Maintaining proper indoor relative humidity in winter is crucial to health and comfort. Cold air holds less moisture, leading to dry indoor air when heated. Optimal indoor humidity (30-50%) prevents respiratory issues, dry skin, and damage to wood furnishings. Balancing it with outdoor temperature prevents condensation on windows and mold growth, ensuring a healthy and comfortable living environment.
|
|
|
|

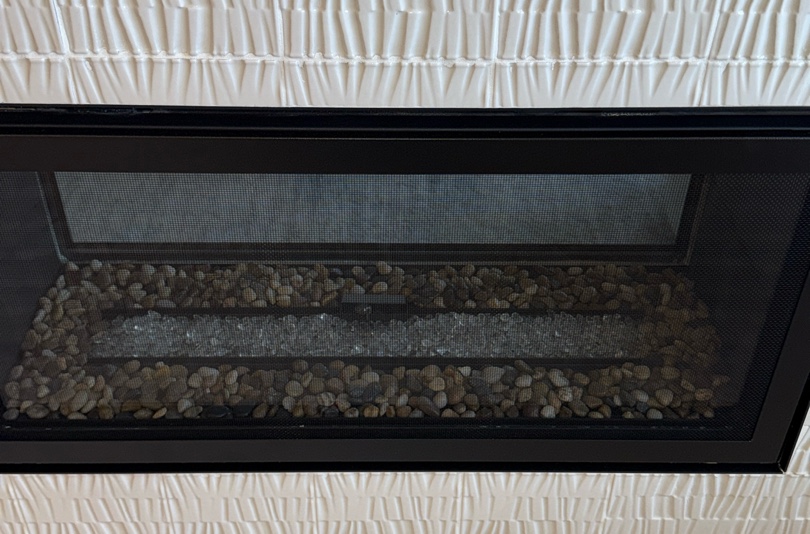

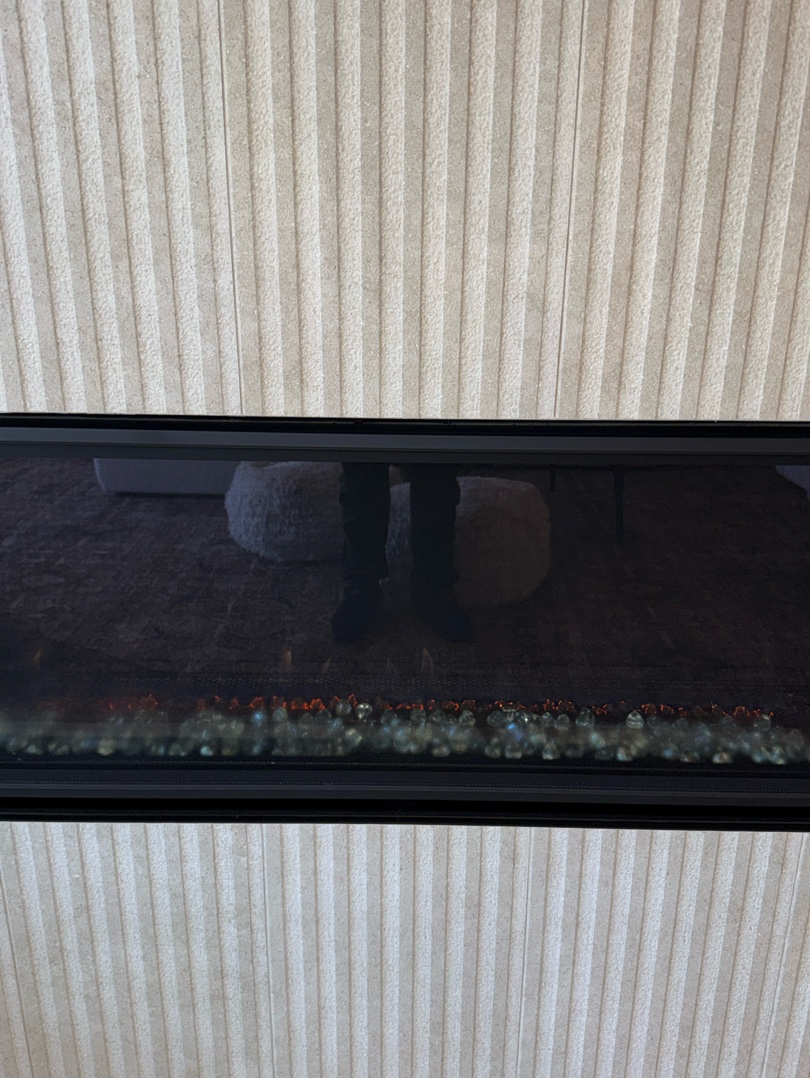

Fireplace(s)
Review focused on fuel type, structure, visible chimney/venting, flue, firebox, damper operation, and potential safety hazards.
|
|
|
|
The Fireplace Baseline
Components are reviewed for presence, general condition, and visible signs of damage or deterioration where accessible. This includes the fuel type, firebox, hearth, mantel, damper, and visible portions of the chimney and flue. Accessible areas are checked for soot accumulation, creosote buildup, cracks, or moisture intrusion. The review is limited to observable conditions without dismantling components or conducting internal chimney inspections.
|
|
|
|
|
Focus Feature Page
These are photos related to the same component or system.
|
|
|
|

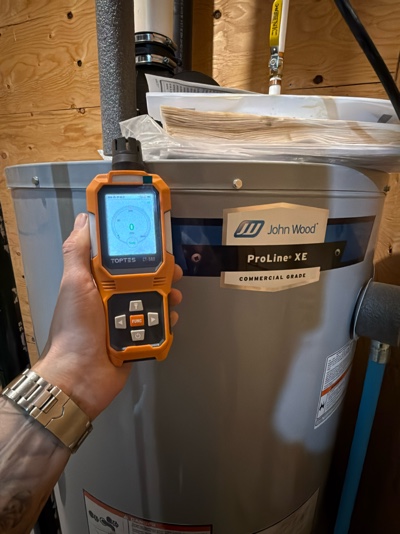

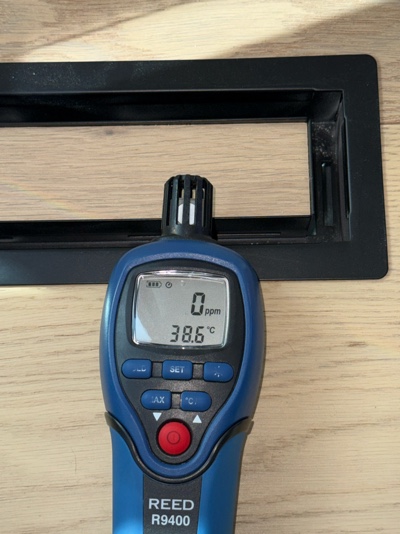

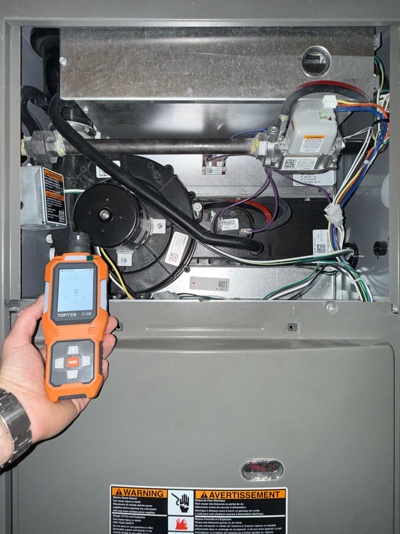

Carbon Monoxide Test(s)
Used to detect colorless, Odourless, & tasteless flammable gas. Spot checks performed in high-risk areas.

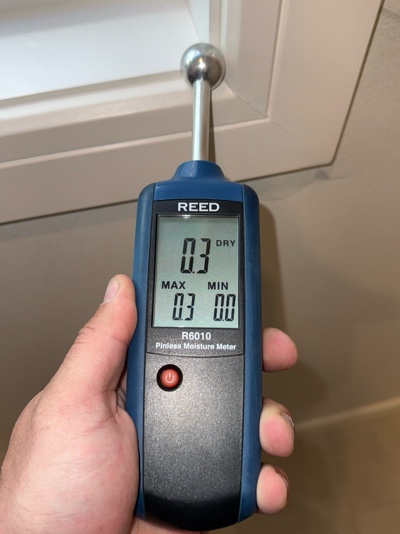

Moisture Meter Instrument
Used to measure the % of water in a given product. X10 Spot checks performed.
|
|
|
Safety First

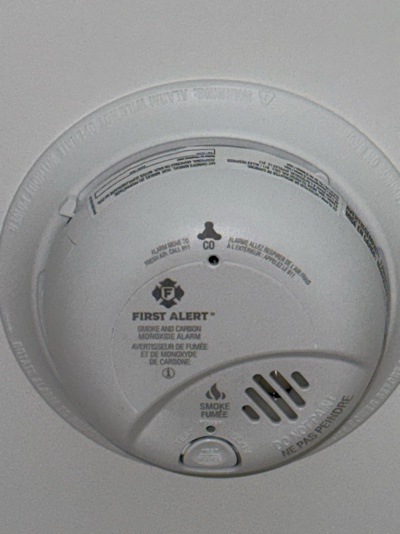

Smoke and carbon monoxide alarms are essential life safety devices. Install smoke alarms in bedrooms, outside sleeping areas, and on every level. Install CO monitors outside sleeping areas and on each level near fuel burning appliances and attached garages.Test monthly. Replace batteries yearly. Replace units every 7 to 10 years.Keep fire extinguishers accessible in the kitchen, garage, and near mechanical equipment.
|
|
|
|
On the way out
All items tested & operated during this inspection were returned to their prior settings & positions. Windows, doors, locks, switches, and appliances are restored to their original condition, and reasonable efforts are made to tidy and leave the home as it was found at the time of inspection.
|
|
|
|

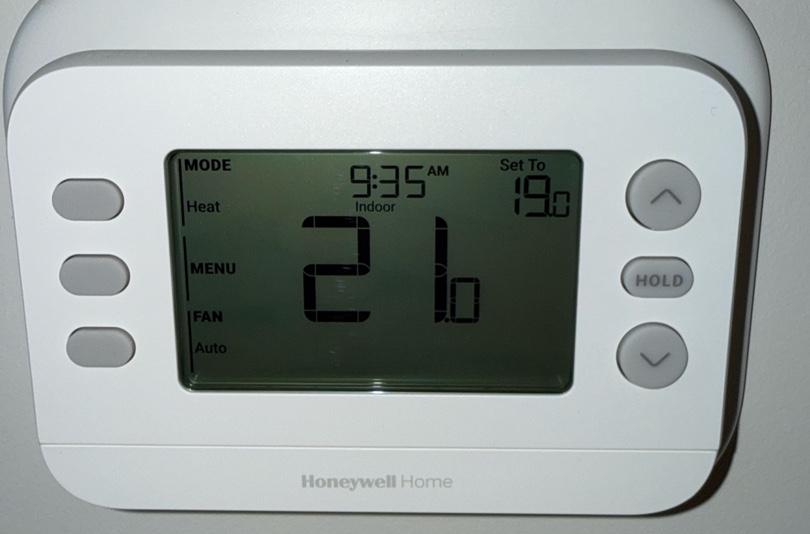

Stats set back
|
|
|
|
Stove / Oven Off
|
|
|
|

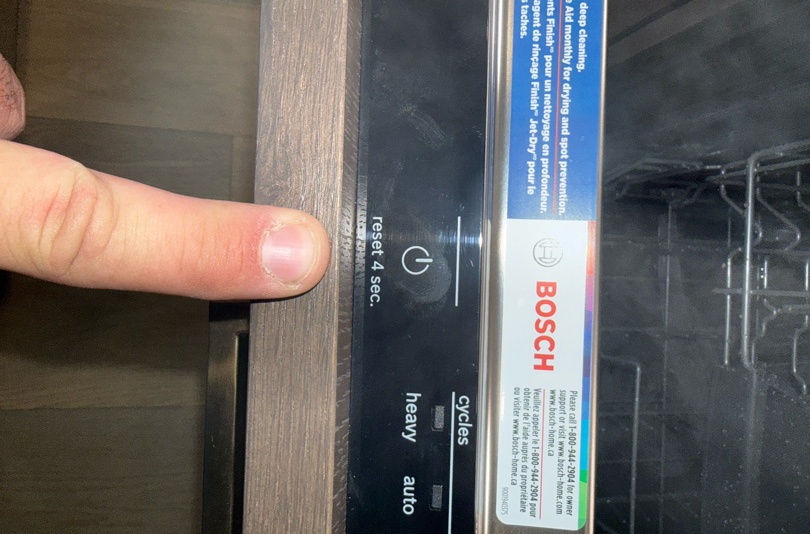

Dishwasher Off / Open
|
|
|
|
|
|
|
|
Extra Photos
|
|
|
|
|
|
|
|
|
|
|
|
Stair lights
|
|
|
|
The Interior Baseline
𝗜𝗻𝘁𝗲𝗿𝗶𝗼𝗿 – 𝗔𝗿𝗲𝗮𝘀 𝗜𝗻𝘀𝗽𝗲𝗰𝘁𝗲𝗱Interior components and finishes are reviewed for presence, general condition, visible damage, and basic operation where applicable. This includes commonly accessible areas and systems such as entry spaces, walls, ceilings, floors, trim, doors, windows, stairs, electrical components, lighting, life safety devices, heating and cooling distribution elements, and other visible interior features typically found within the living space of the home. |
|
|
|
|
Focus Feature Page
These are photos related to the same component or system.

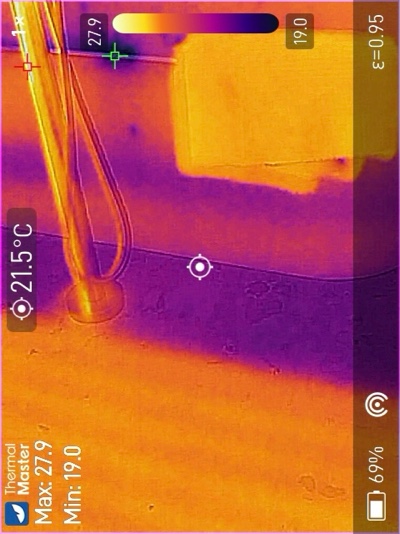

Thermal Heat Supply
|
|
|
|

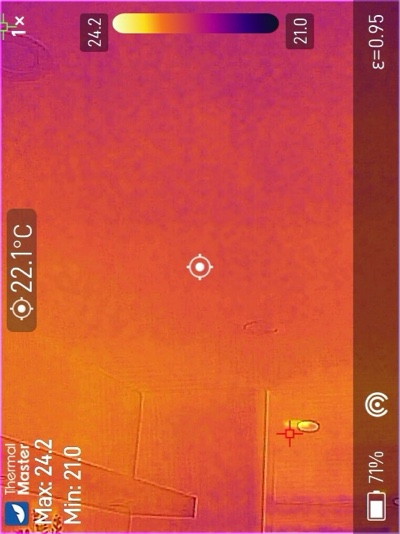

Thermal Ceilings

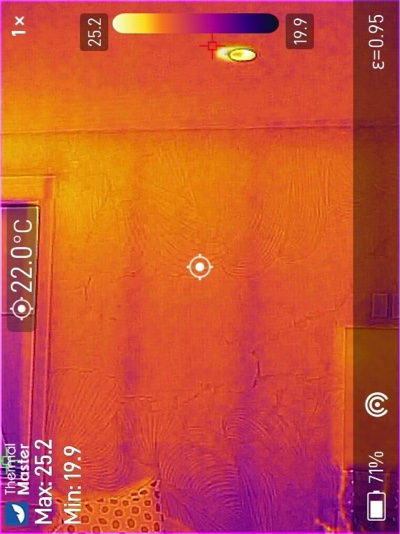

Thermal Wall(s)
|
|
|
|

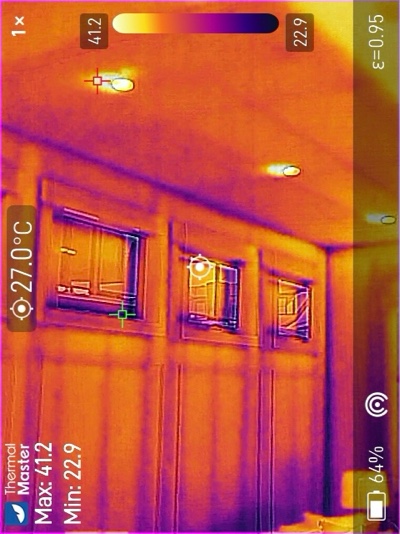

Thermal Window(s)

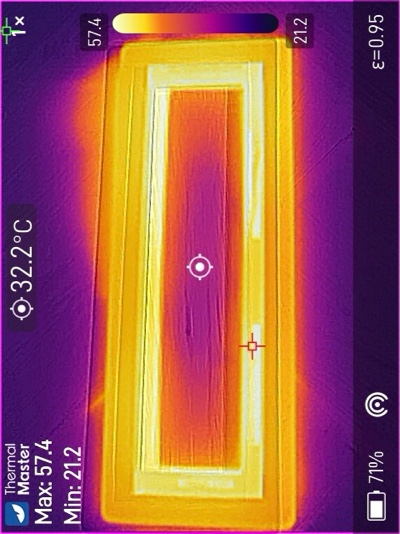

Thermal Door(s)
|
|
|
|

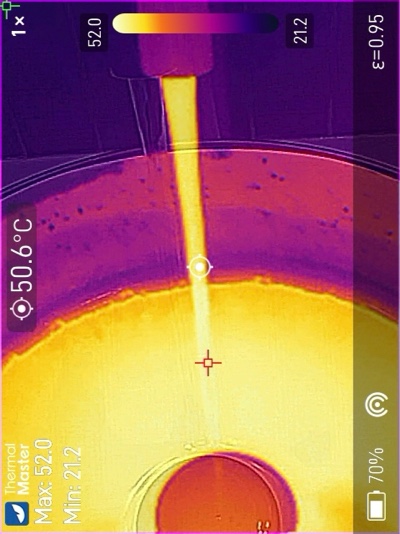

Hot Water Thermal

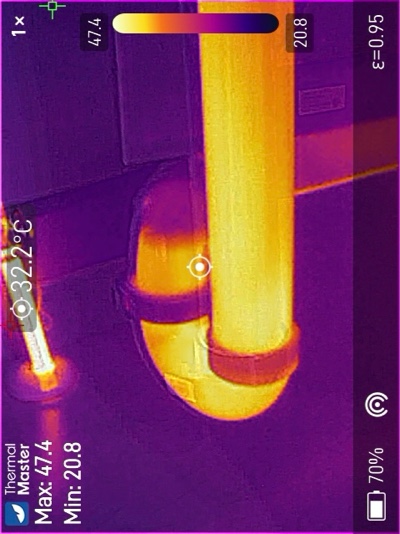

Thermal P-Trap(s)
|
|
|

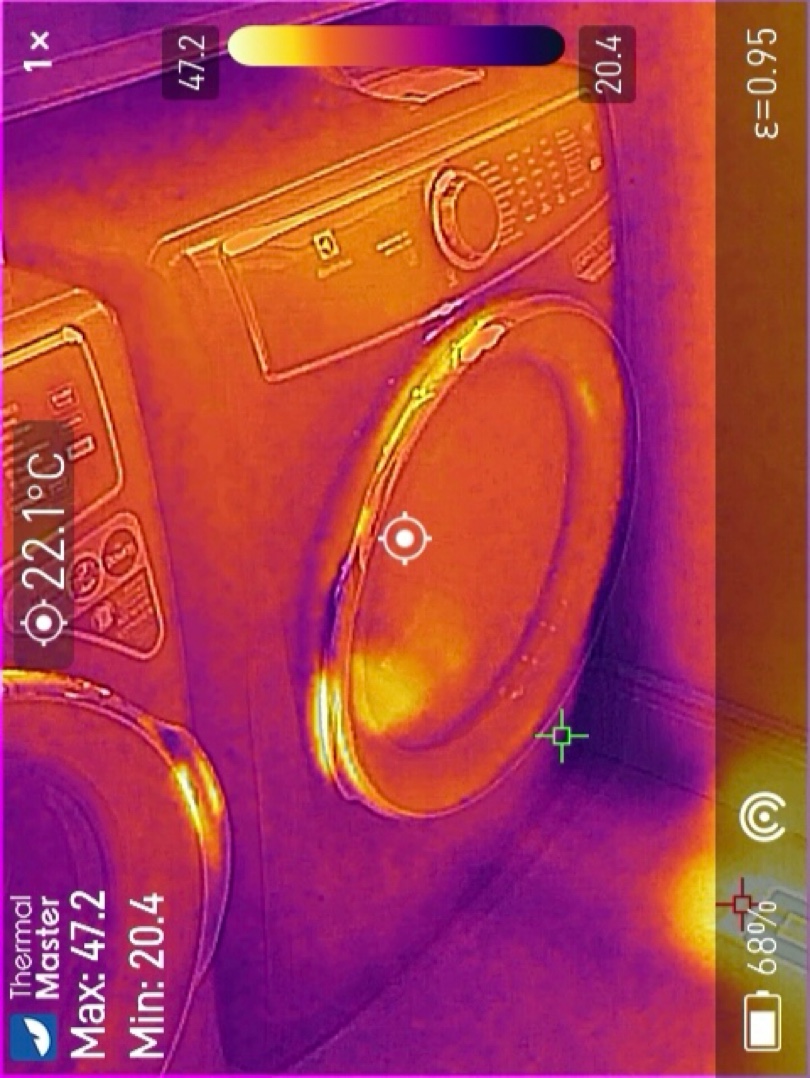

Thermal Dryer(s)
not hooked up today Not Inspected
|
|
|
|

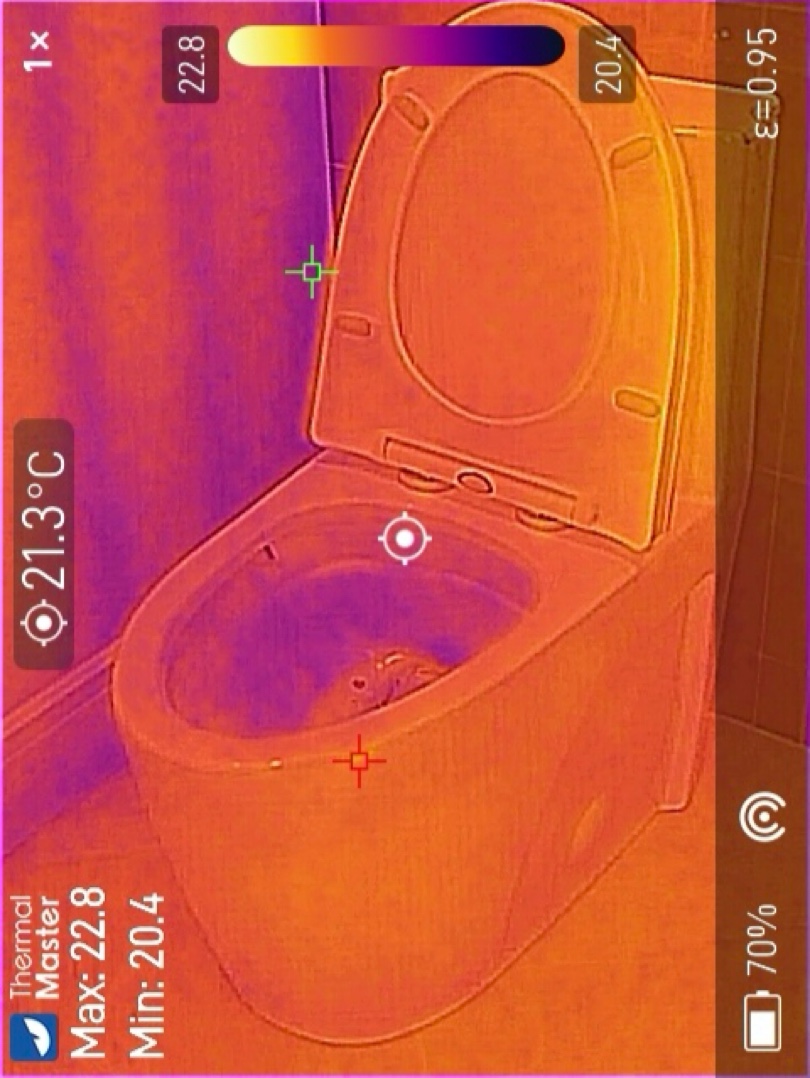

Thermal Toilet(s)
|
|
|
|
|

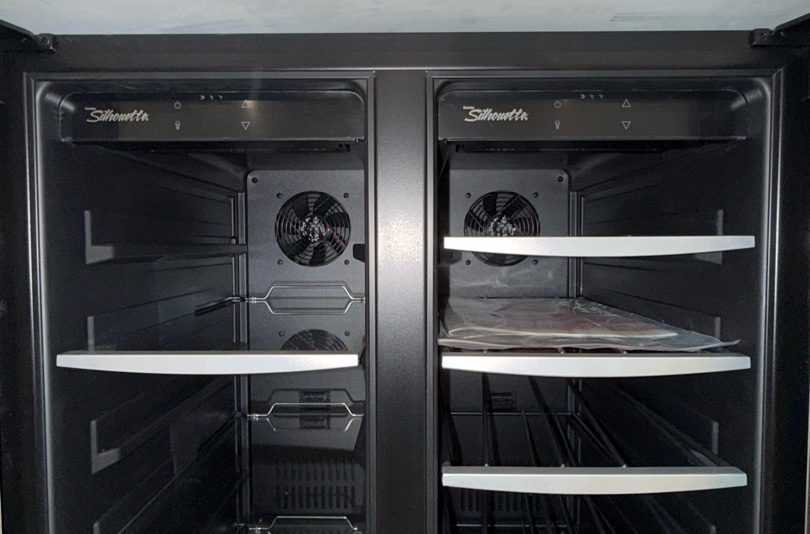

Wine cooler
Undetermined: Results unclear due to conditions or limitations. Further review may be needed to confirm the situation.. Not Inspected
Thermal beer fridge
Undetermined: Results unclear due to conditions or limitations. Further review may be needed to confirm the situation.. Not Inspected
|
|
|
|

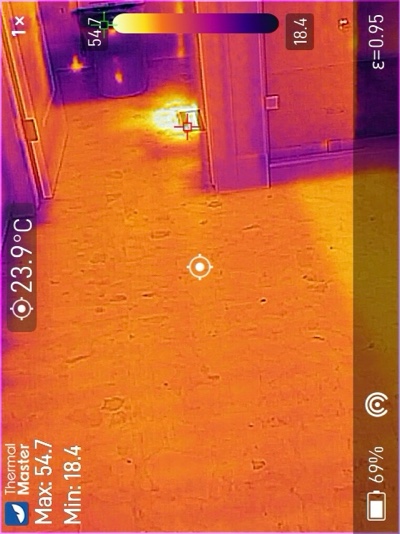

Thermal in floor heat
Thermal bath tub
|
|
|
|

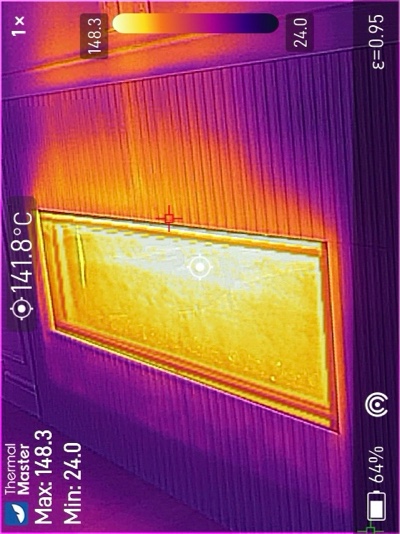

Thermal fireplace
Thermal windows
|
|
|
|
Thermal wine cooler
Thermal water tank
|
|
|
|

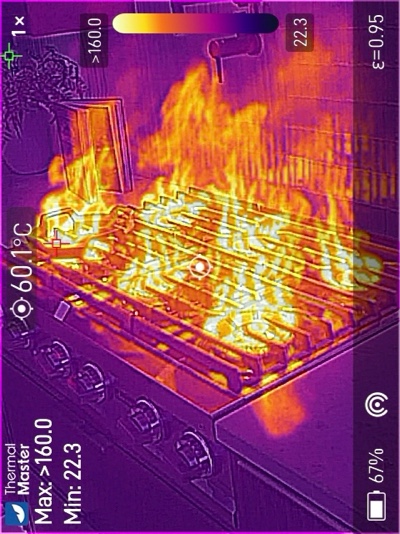

Thermal Stove

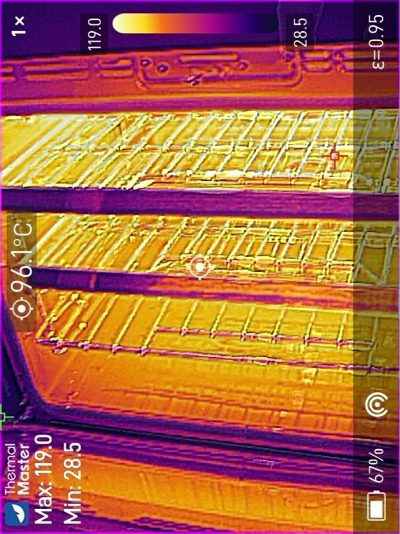

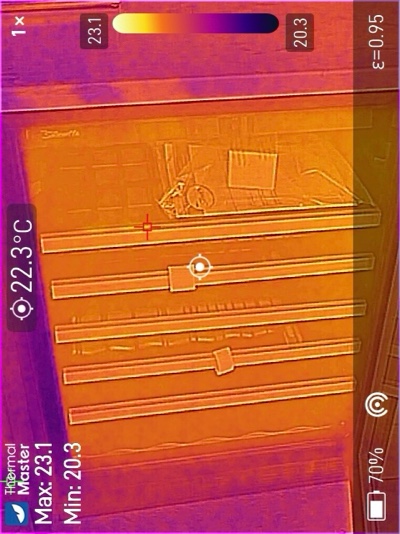

Thermal Oven
|
|
|
|

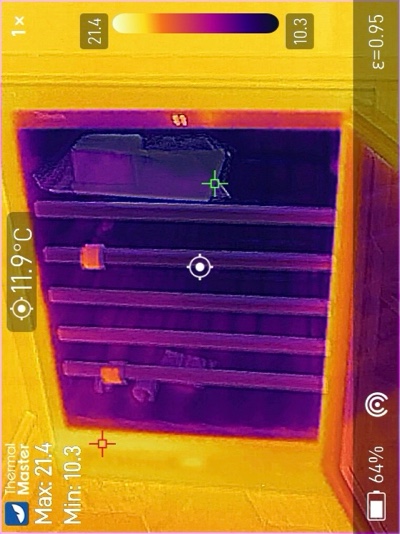

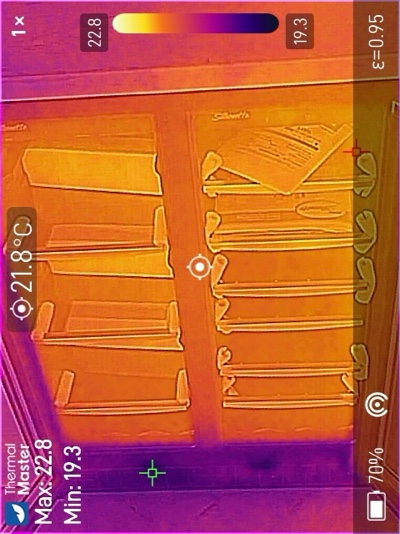

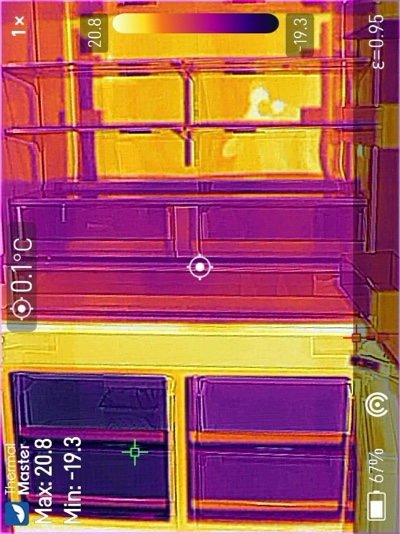

Thermal Fridge

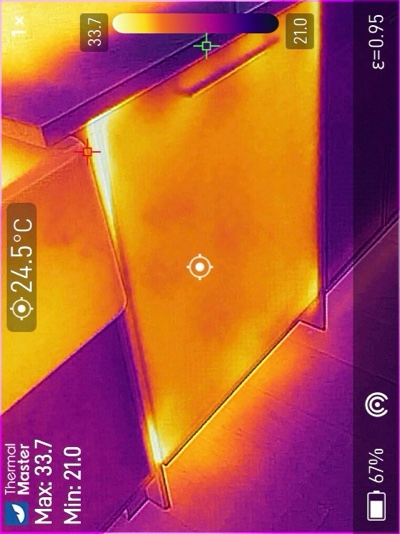

Thermal dishwasher
|
|
|
The Thermal Baseline
Observervations of surface temperature variations that may indicate areas of heat loss, moisture intrusion, or abnormal electrical or mechanical conditions where accessible. The review is limited to visible thermal patterns on exposed surfaces and does not determine the exact cause of temperature differences. Findings are influenced by environmental conditions, building materials, and time of day. This review does not include destructive testing, internal wall inspections, or verification of concealed components, and is limited to observable conditions at the time of inspection.
|
|
|
|
Routine Maintenance Pays
This video is provided as a helpful reference to support everyday home care & maintenance. It highlights simple steps that can reduce common problems & may help avoid unnecessary repairs or expenses over time. Watching this video may make it easier to understand the small actions that help keep a home running smoothly.See video |
|
| K BACK TO SUMMARY |
|
Report Legend
Explains reports symbols.
|
|
|
|
Microwave(s) ⠀
Inspected for presence, operation, mounting security, door seal condition, controls, ventilation, and visible wiring concerns.
|
|
|
|

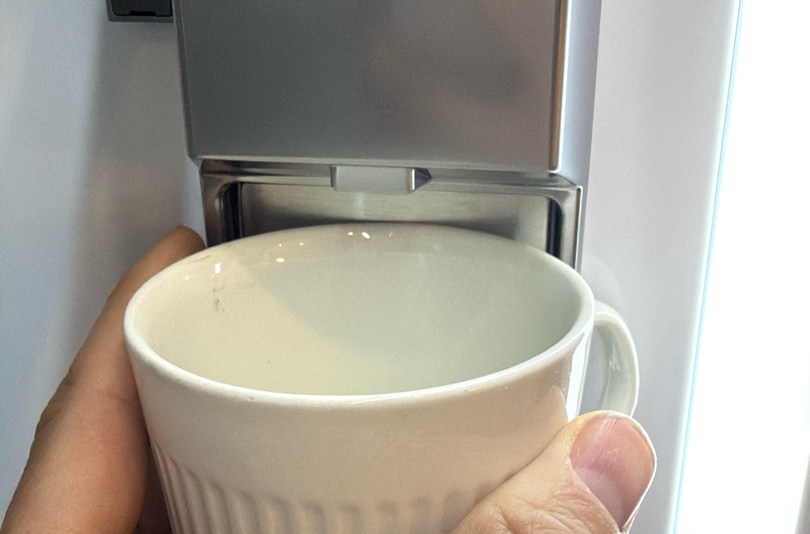

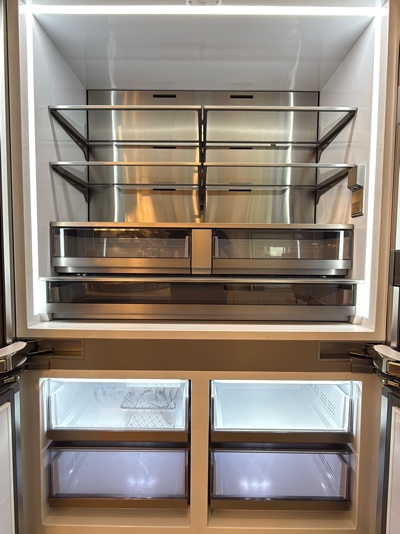

Refrigerator(s)
Inspected for operation, temperature control, door seal condition, water line connections, drainage, and general installation.

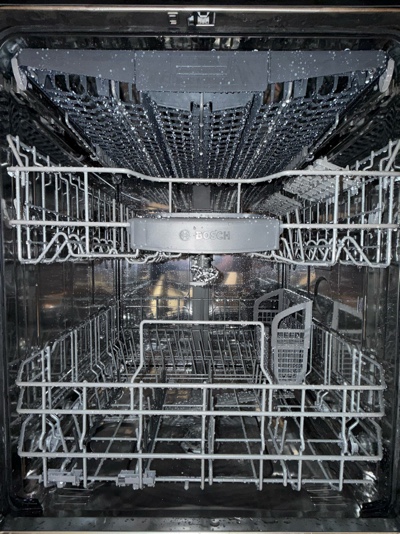

Dishwasher(s)
Inspected for operation, mounting, drainage & leakage indicators during short cycle.
|
|
|
|

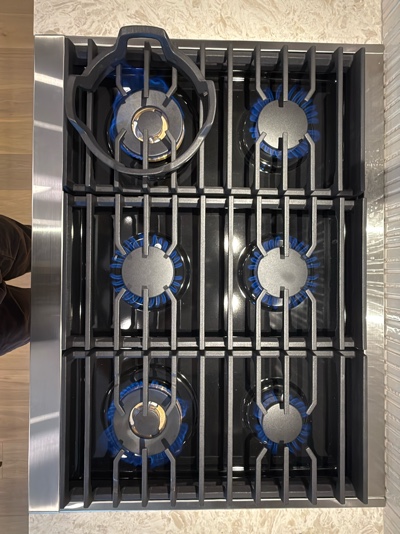

Stovetop(s) / Cooktop(s)
Inspected for basic operation, burner function, surface condition & safety concerns.

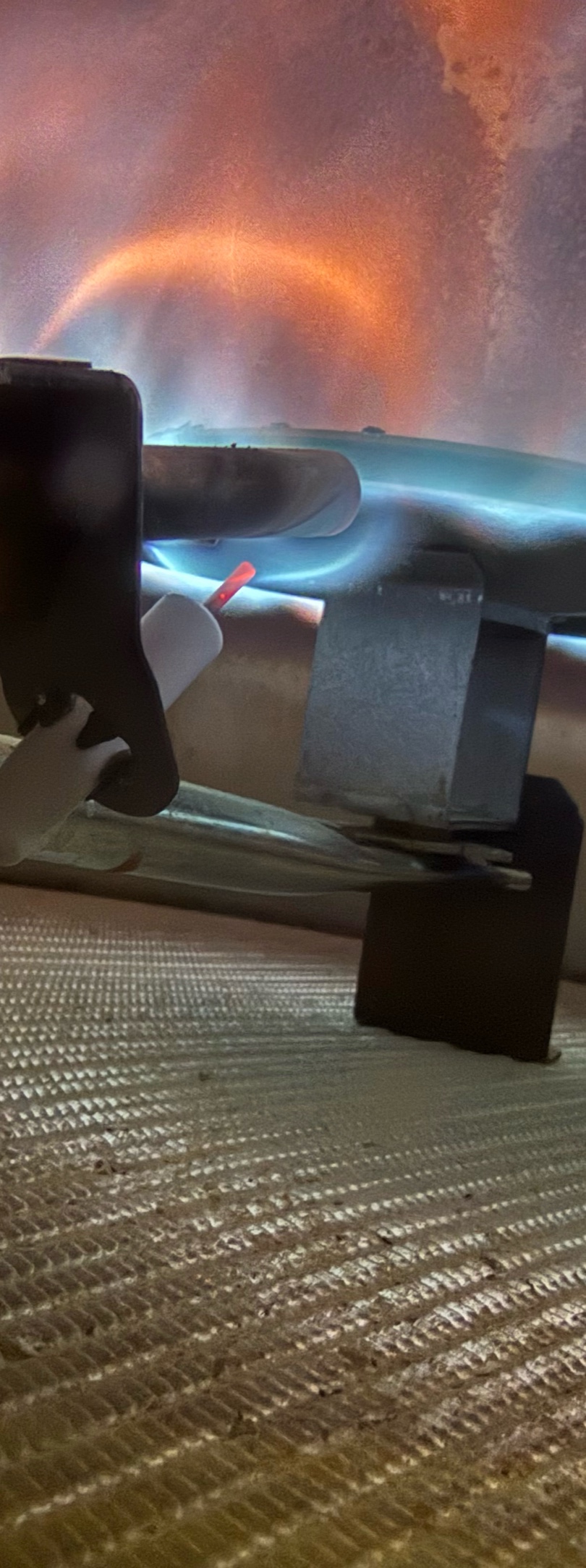

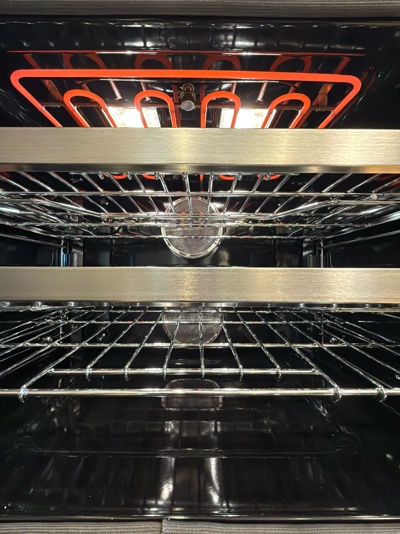

Oven(s)
Inspected for operation, interior condition, door sealing & visible safety concerns.
|
|
|
|
|
|
|

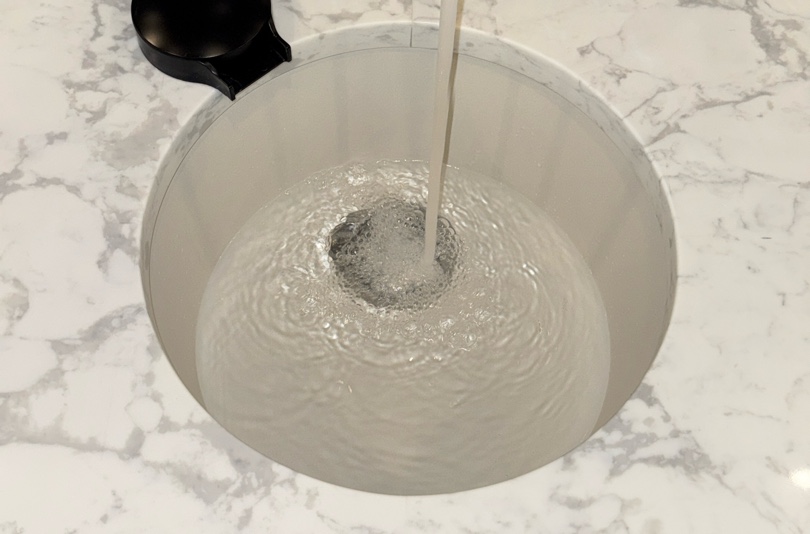

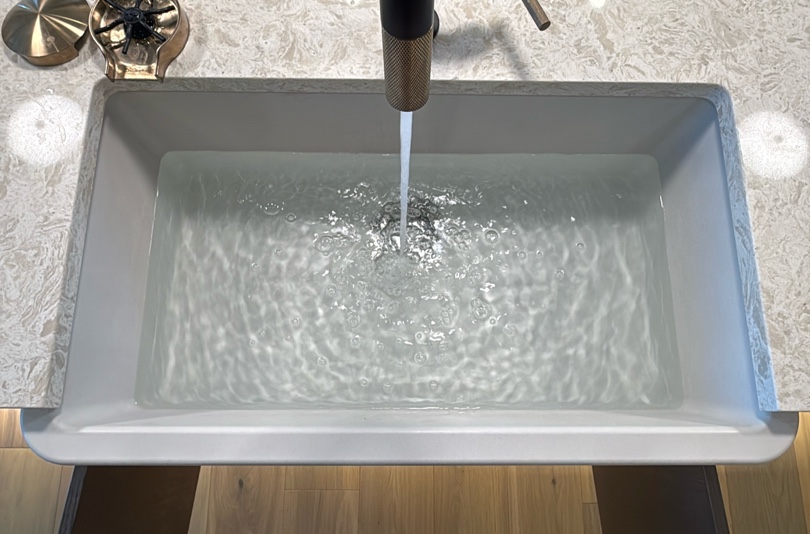

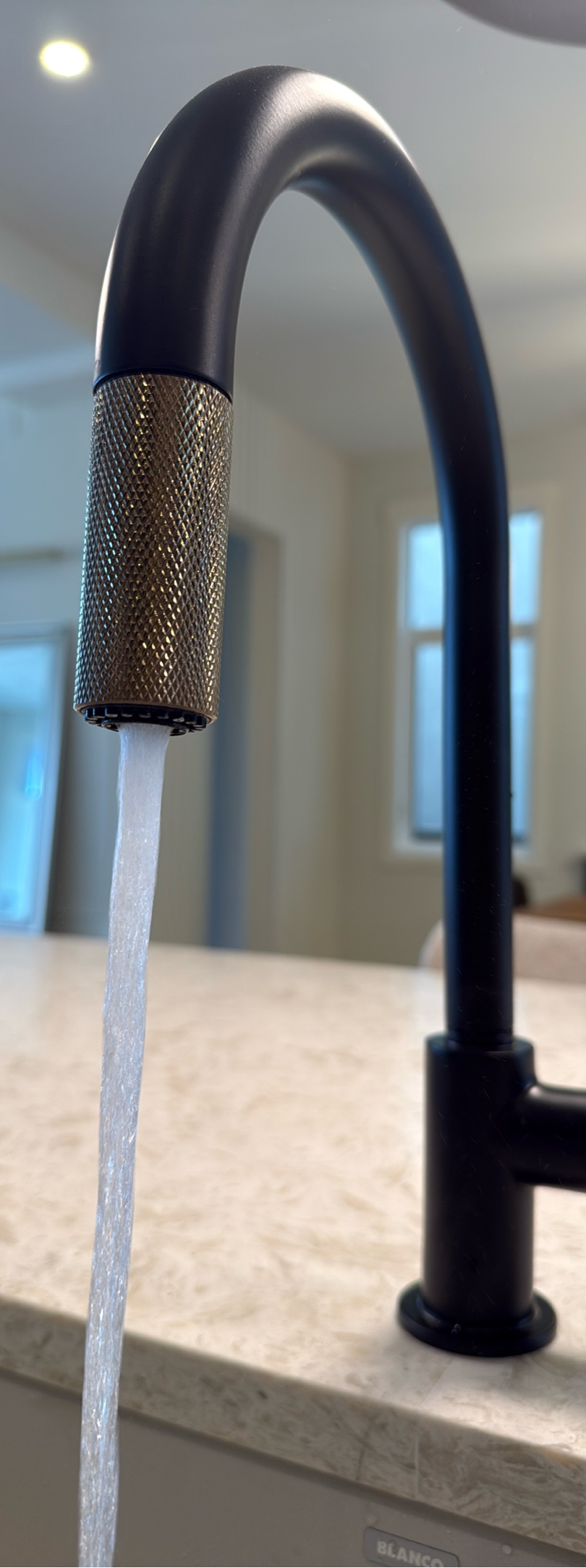

Kitchen Faucet(s), Sink(s) & Drain(s)
Reviewed, focused on operation, temperature, mounting, drainage, odors & leakage indicators.
|
|
|
|

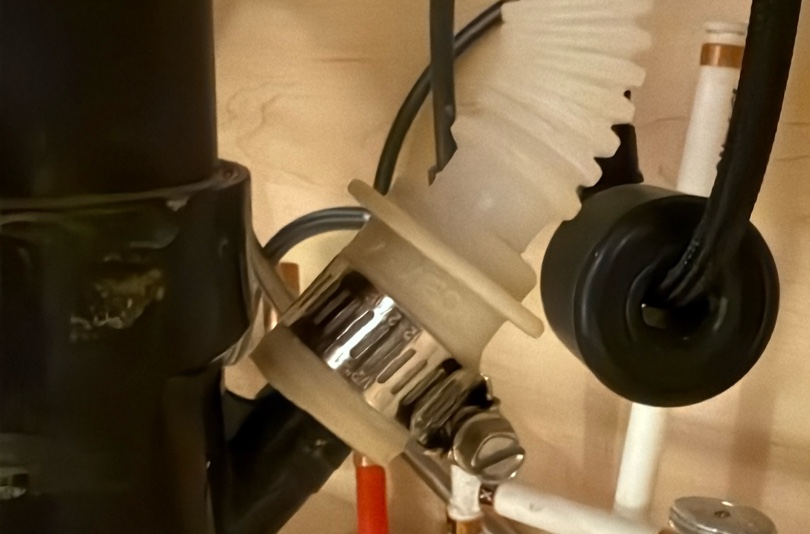

Kitchen P-Trap(s)
Checked for drainage, trap configuration, connection security, leakage indicators & visible corrosion.
|
|
|
|
|
|
|
|
Extra Photos
|
|
|
|
|
|
|
|

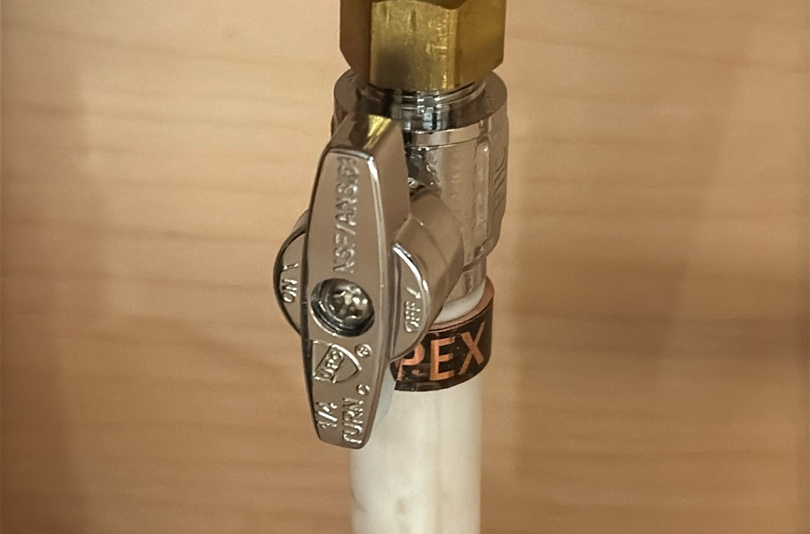

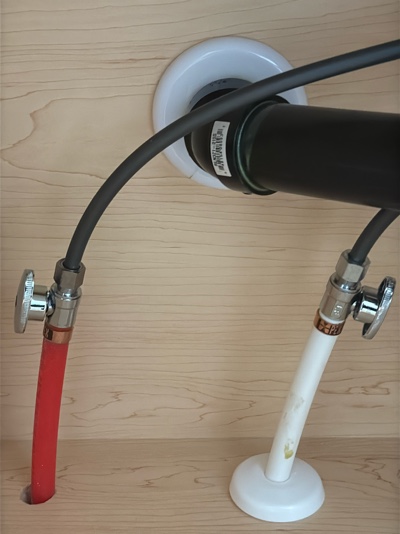

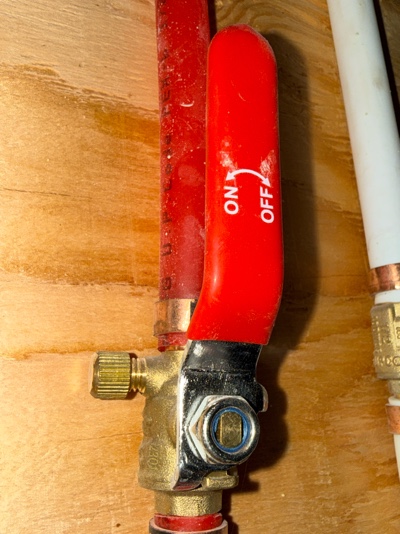

Water Shut-off(s) ⠀⠀⠀
Inspected for leaks & other common issues.
|
|
|
|
|
|
|
|
Bar Sink
Generally, some mild soap & nylon sponge or soft rag works great for daily cleaning.
|
|
|
|
|
|
|
|
Name of Component (K2)
|
|
|
|
The Kitchen Baseline
Components are reviewed for presence, general condition, and visible signs of damage or deterioration where accessible. This includes cabinetry, countertops, sinks, faucets, visible plumbing connections, built-in appliances, wall and ceiling finishes, and accessible electrical outlets. Accessible areas are checked for leaks, staining, loose or damaged finishes, improper clearances, and signs of moisture intrusion. The review is limited to observable conditions without moving appliances, dismantling components, or evaluating concealed plumbing, electrical, or ventilation systems.
|
|
|
|
The Laundry Baseline
Components are reviewed for presence, general condition, and visible signs of damage or deterioration where accessible. This includes cabinetry, countertops, sinks, faucets, built-in appliances, visible plumbing connections, wall and ceiling finishes, and accessible electrical receptacles. Accessible areas are checked for leaks, staining, loose or damaged finishes, improper clearances, and signs of moisture intrusion. The review is limited to observable conditions without moving appliances, dismantling components, or evaluating concealed plumbing, electrical, or ventilation systems.
|
|
| L BACK TO SUMMARY |
|
Report Legend
Explains reports symbols.
|
|
|
|

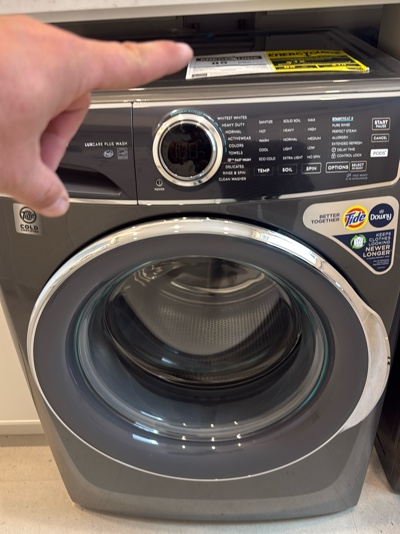

Laundry Washer Machine
Reviewed, focused on plumbing connections, hoses, drains, seals & visible leakage. Incomplete: Item was only partially installed, unfinished, or not fully functional at the time of inspection.. Not Inspected

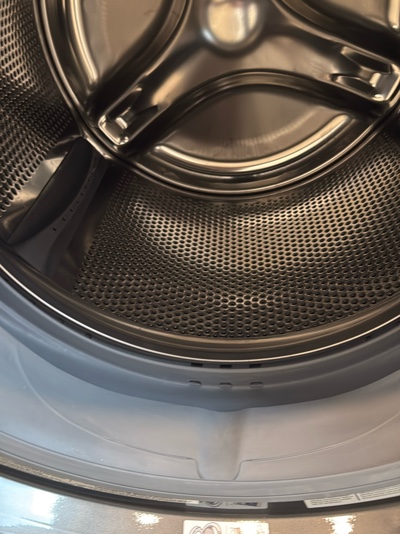

Inside The Washer
|
|
|
|
Laundry Dryer(s).
Attention given to operation, temperature variance, vent connections & lint accumulation. Incomplete: Item was only partially installed, unfinished, or not fully functional at the time of inspection.. Not Inspected

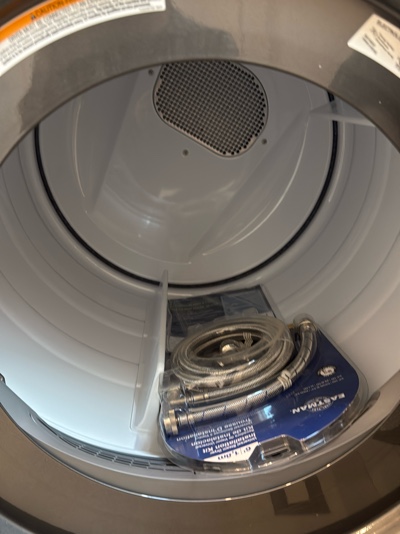

Inside The Dryer
|
|
|
|
VENT - VENT - VENT
Door & drawer OPEN to let moisture escape & prevent organic growth.
RISK Reduction
Check behind the washer for leaks regularly, and shut off the water when away on vacation.
|
|
|
|
Focus Feature Page
These are photos related to the same component or system.
Laundry Faucet(s) & Sink(s)
Reviewed, focused on operation, temperature, mounting, drainage, odors & leakage indicators.
|
|
|
|
Sink Drain(s)
Water Shut-off(s) ⠀⠀⠀
Inspected for leaks & other common issues.
|
|
|
|
|
|
|
|
|
| B BACK TO SUMMARY |
|
Report Legend
Explains reports symbols.
|
|
|
|

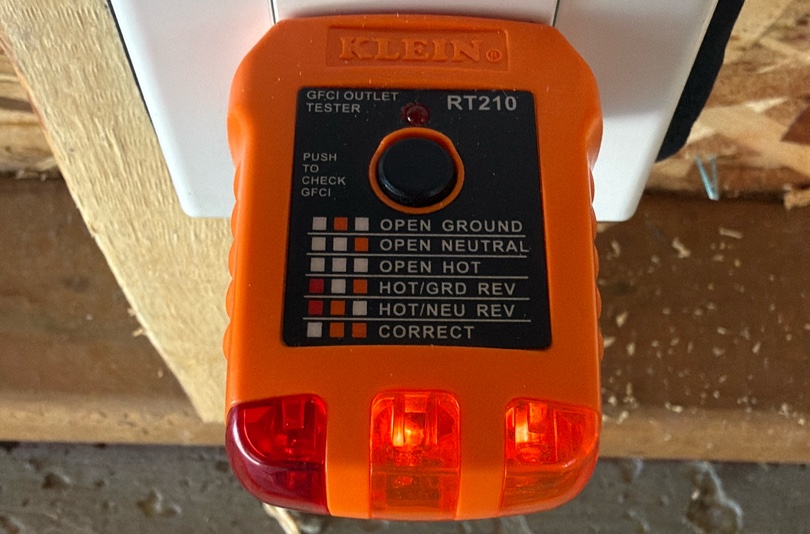

Bathroom Outlet(s)
Tested for anomalies.

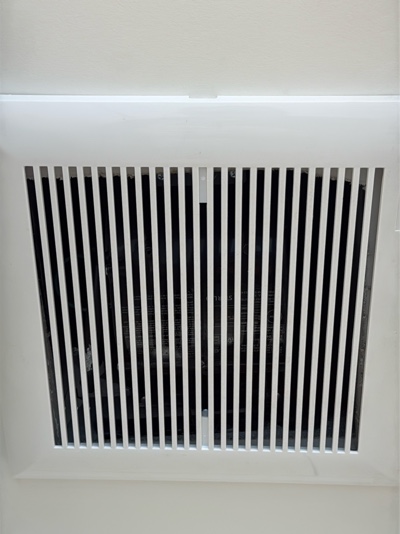

Bathroom Extraction Fan(s)
Observations included basic operation & airflow response using simple draw testing.
|
|
|
|

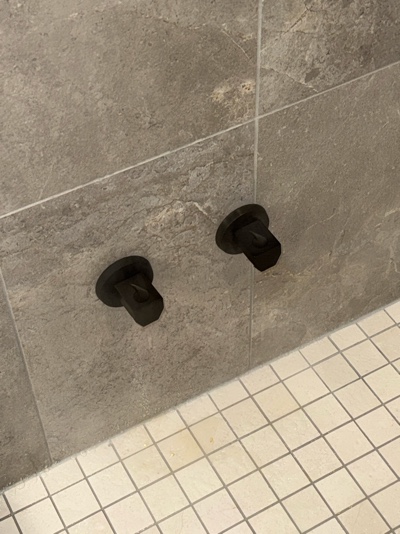

Overview Shower / Bathtub
Focused on fixtures, connections, operation, overflows & surrounds.
Plumbing Floor Drain(s)
Observations included drainage flow, blockage signs, backups, odors & leakage indicators.
|
|
|
|
|
|
|
Bathroom P-Trap(s)
Checked for drainage, trap configuration, connection security, leakage indicators & visible corrosion.
|
|
|
|

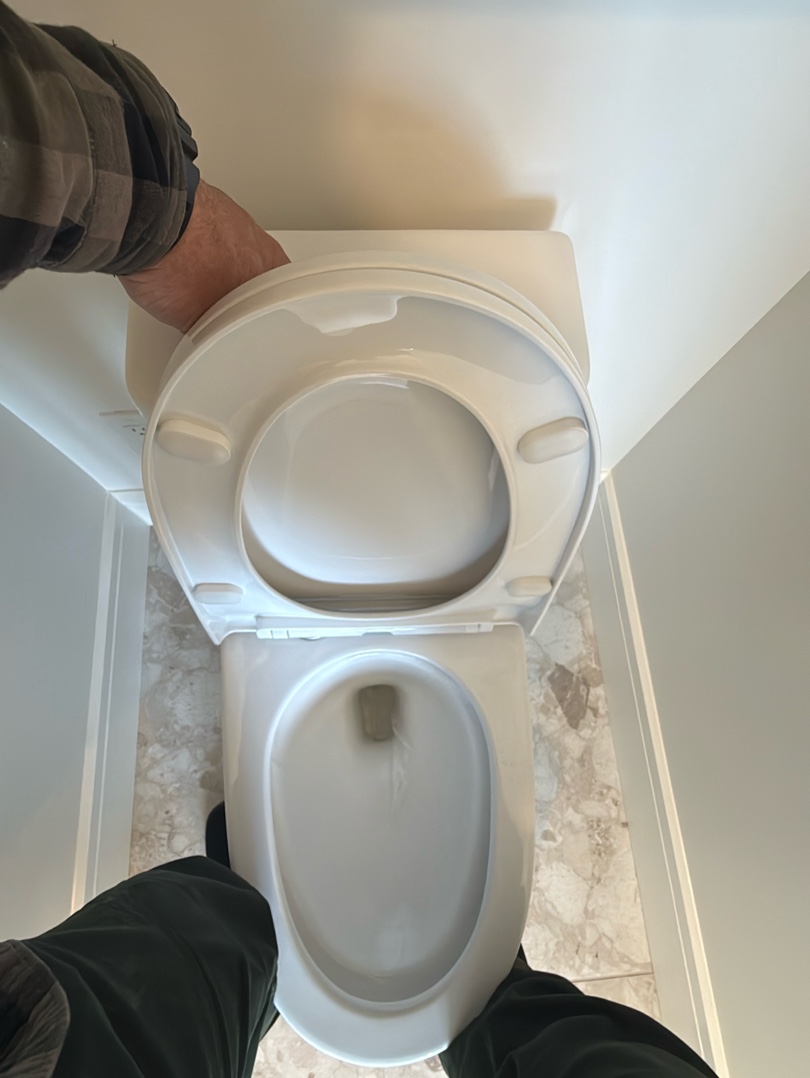

Toilet(s)
Reviewed for stability, operation & visible leakage. X3 flush test per unit.
|
|
|
|
General Ceilings / Walls
Visually examined for common defects.
|
|
|
|
General Flooring
Visually examined for common defects.
|
|
|
|
Bathtub & Surround(s)
Inspected for condition, secure installation, functional drainage, faucet operation, and visible signs of leaks, cracks, damage, or deteriorated sealant at accessible areas.
|
|
|
|
|
Focus Feature Page
These are photos related to the same component or system.

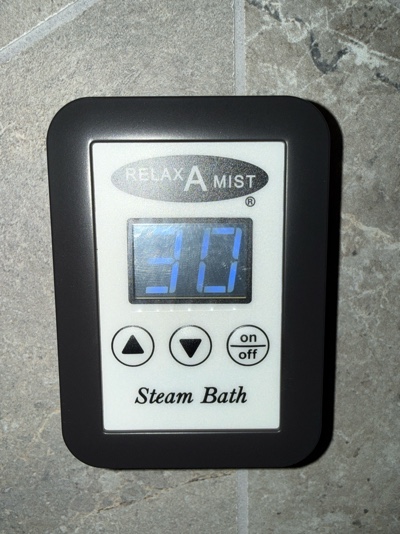

Steam Thermostat(s)
Set to test & restored to original settings. Incomplete: Item was only partially installed, unfinished, or not fully functional at the time of inspection..
|
|
|
|
Steam Generator(s)
Observed for presence, mounting, connections, leakage indicators, controls & visible wiring or piping concerns. Incomplete: Item was only partially installed, unfinished, or not fully functional at the time of inspection..

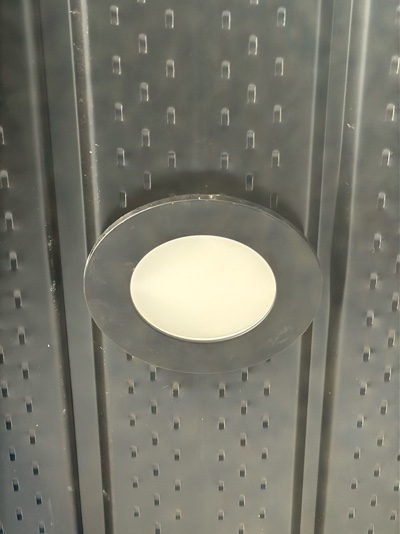

Steam Nozzle(s)
Observed for mounting, discharge condition, blockage indicators & surrounding surface condition.
|
|
|
The Steam Baseline
Components are reviewed for presence, general condition, and visible signs of damage or deterioration where accessible. This includes wall and ceiling finishes, seating, door assembly, steam head location, and visible control components. Accessible areas are checked for moisture damage, staining, loose finishes, microbial growth, and improper sealing. The review is limited to observable conditions without operating the steam generator, removing finishes, or evaluating concealed waterproofing or ventilation systems.
|
|
|
|
|
|
|
|
Extra Photos
|
|
|
|
|
|
|
|
Fireplace
Incomplete: Item was only partially installed, unfinished, or not fully functional at the time of inspection.. Not Inspected
|
|
|
|
|
|
|
|
Bathroom Ventilation
Bathroom exhaust fans help remove excess moisture created during bathing and showering. Running the fan during use and for at least 15–20 minutes afterward helps reduce humidity, which can prevent condensation, microbial growth, peeling finishes, and moisture damage to walls, ceilings, and nearby materials. Regular use and periodic cleaning of the fan grille improve performance and indoor air quality.
|
|
|
|
The Bathroom Baseline
Components are reviewed for presence, general condition, and visible signs of damage or deterioration where accessible. This includes cabinetry, countertops, sinks, faucets, visible plumbing, appliances, wall and ceiling finishes, and electrical receptacles. Accessible areas are checked for leaks, staining, loose or damaged finishes, improper clearances, and signs of moisture intrusion. The review is limited to observable conditions without moving appliances, dismantling components, or evaluating concealed plumbing, electrical, or ventilation systems.
|
|
| M BACK TO SUMMARY |
|
Report Legend
Explains reports symbols.
|
|
|
|
The Main AMP
Generally, this will shut down everything! Designed to interrupt a large amperage load.
|
|
|
|
Hot Water Unit(s) / 2024
Attention was given to unit mounting, venting, safety components, temperature controls & visbile operation.

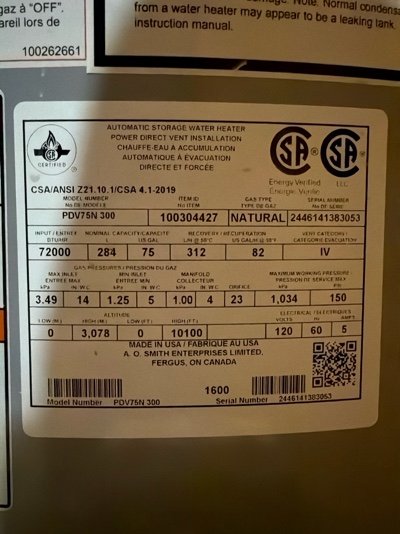

Hot Water Data
Unit detail(s). See also Insurance Section.
|
|
|
|

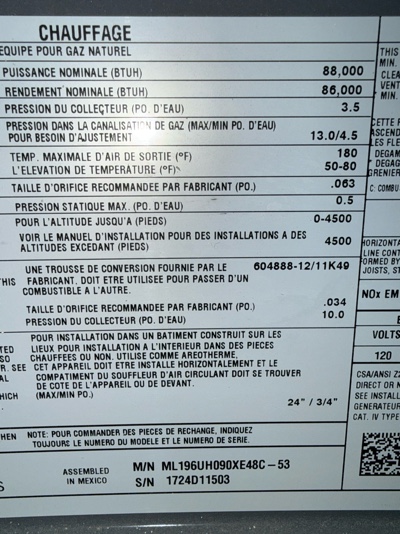

Heating Unit Data Plate
Unit detail(s). See also Insurance Section.
|
|
|
|
Heating Unit Shutoff ⠀⠀⠀
Observed for accessibility, labeling, secure mounting & operation affecting emergency shutoff capability.
Water Main Shutoff ⠀
Assessing valve operation & signs of leakage, corrosion, or damage. See also Insurance Section.
|
|
|
|

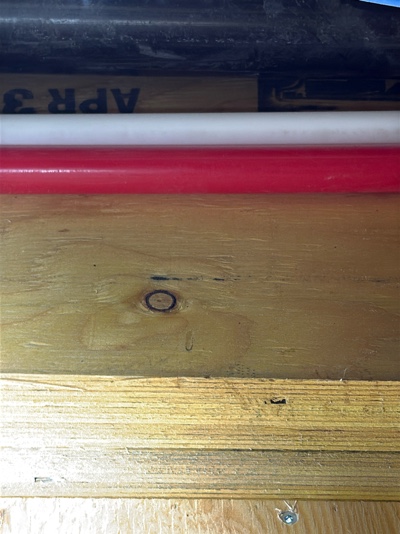

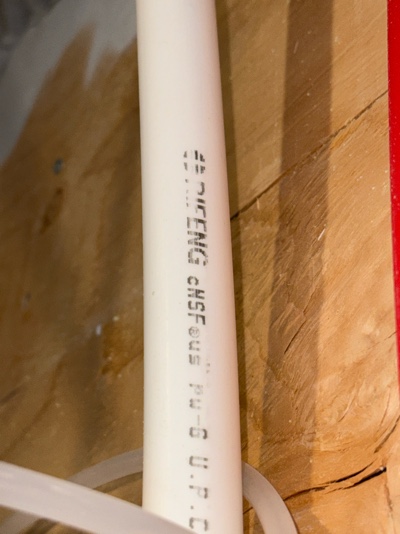

Plumbing Waterlines
Inspected for support, connections, leaks & visible corrosion or damage. See also Insurance Section.
Ext. Water Shutoff(s)
Observed for accessibility, labels, valve operation, connection condition & leakage indicators.
|
|
|
Maintenance Advisory
Mechanical systems require routine homeowner maintenance and periodic observation for safe operation. This includes replacing heating system filters as recommended, keeping drains and condensate lines clear of debris, and periodically having sewer lines evaluated by a qualified contractor. Safety measures include maintaining domestic hot water at a safe temperature and installing locking or spring-loaded cover plates on critical controls to prevent accidental shutoff. Occupants should be familiar with all system shutoffs and label them clearly. Mechanical rooms should not be used for storage due to required clearance to combustibles. Homeowners should periodically check the mechanical room for calcification, minor leaks, corrosion, or unusual odors that may indicate developing issues.
|
|
|
|
|
Focus Feature Page
These are photos related to the same component or system.
More
|
|
|
|

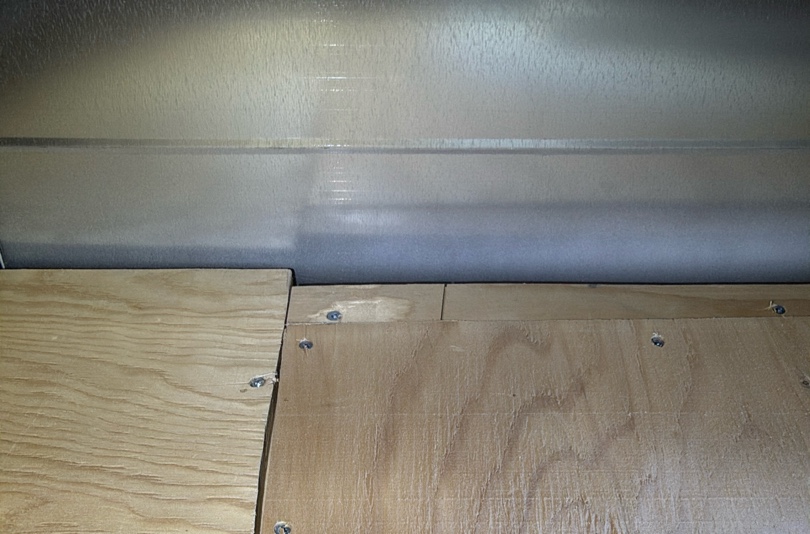

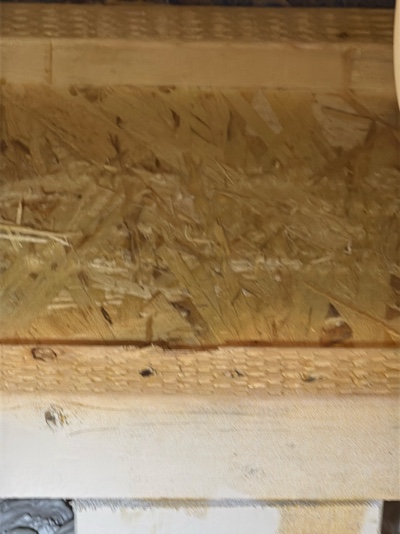

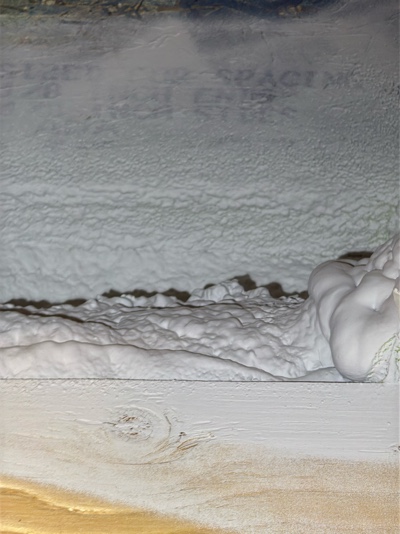

Rim Joist Insulation
Rim Joist Example
The outer board capping floor joists. Inspected for damage, moisture, air leaks, insulation presence, and pest activity.
|
|
|
|
Frost Wall
Limited Visibility: Component was only partially visible due to obstructions or environmental factors at the time of inspection.. Not Inspected
Frost Wall Example
A foundation wall below grade. Inspected for cracks, moisture intrusion, movement, and insulation/air sealing issues.
|
|
|
|
Joist
These serve to provide stiffness to the subfloor sheathing & spread the load.
Beam
The structural element that primarily resists loads applied laterally.
|
|
|
General Ceilings / Walls
Visually examined for common defects.
|
|
|
|
|
|
|
|
Framing 101
Behind every wall is a framework — much like your own skeleton. Vertical studs form the bones, while cripples support around openings. King and jack studs work together to hold up headers over doors and windows, spreading the load. Top plates cap the walls and tie everything together, while bottom plates anchor it all to the floor. This unseen structure is critical to the strength, stability, and alignment of your home. Just like a healthy body depends on solid bones, your home depends on this framing to stand true. ⠀⠀⠀⠀⠀ ⠀ ⚠️ See also Insurance section for more details on your the structural specifications of this property.
|
|
|
|
The HRV
Heat Recovery Ventilators exchanges indoor and outdoor air, using heat from outgoing air to warm incoming fresh air, optimizing energy use and improving indoor air quality. Excellent at reducing heating costs and preventing moisture buildup.
|
|
|
|

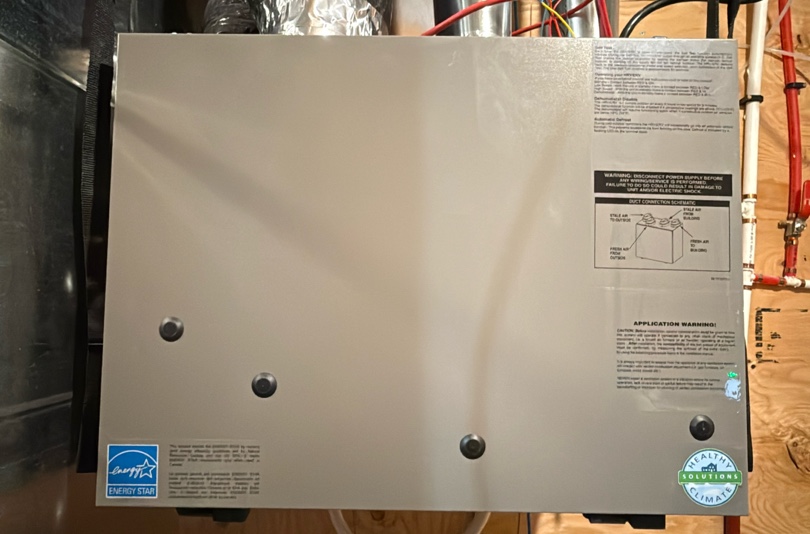

HRV Unit(s) x 2
Reviewed, focused on operation, airflow, filter condition & visible ventilation connections.
|
|
|
|

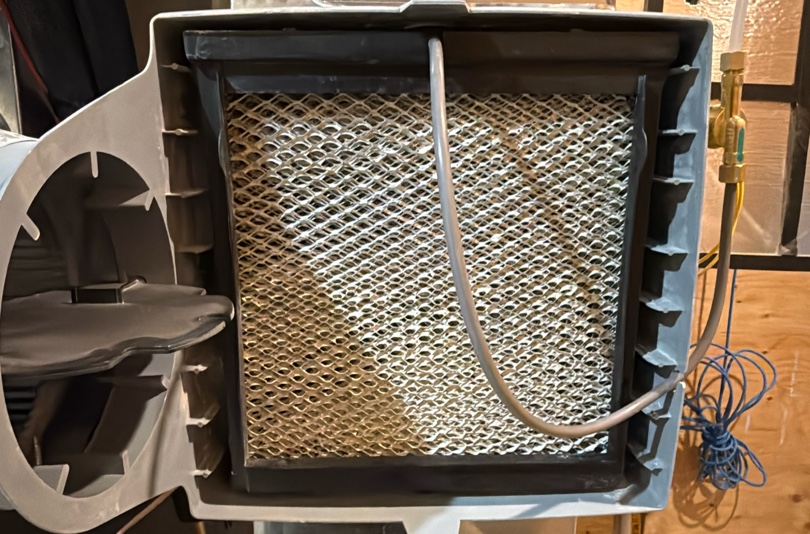

Inside HRV Unit(s)
Follow maintenance routine on core & follow as needed.
|
|
|
|

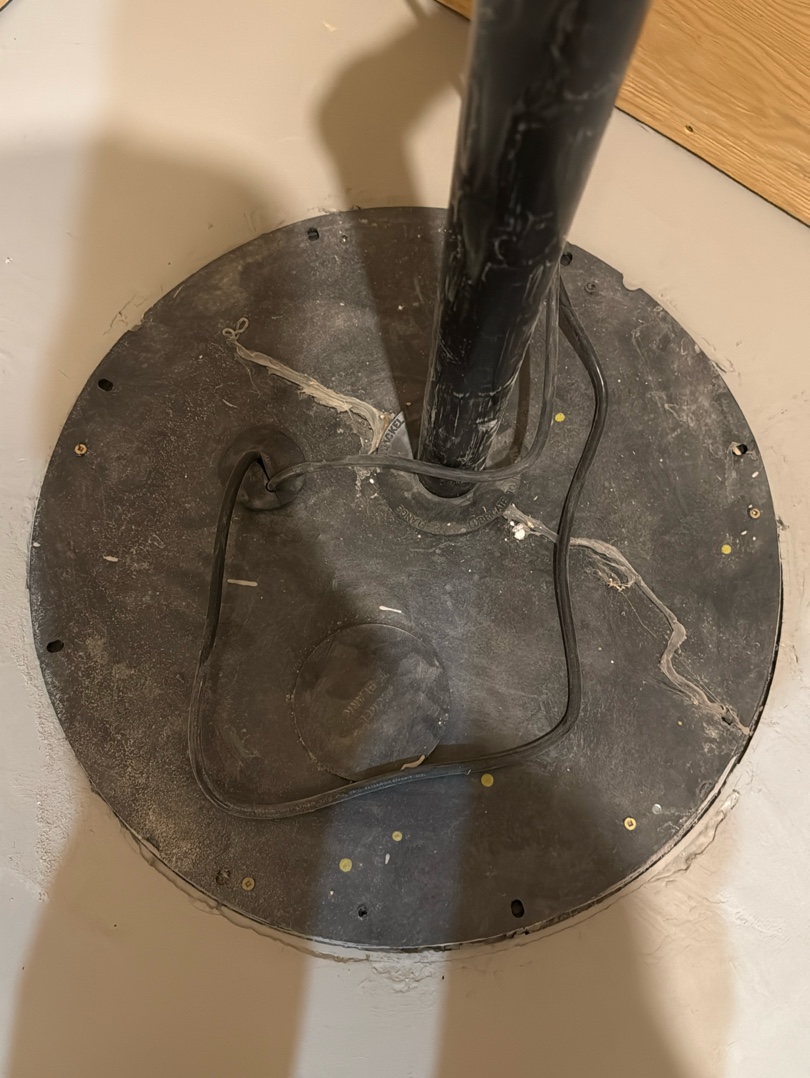

The Sump Pump(s)
Visually inspected and tested where possible to assess operation, discharge setup, check valve presence, power supply & signs of wear, damage, or improper installation.
|
|
|
|

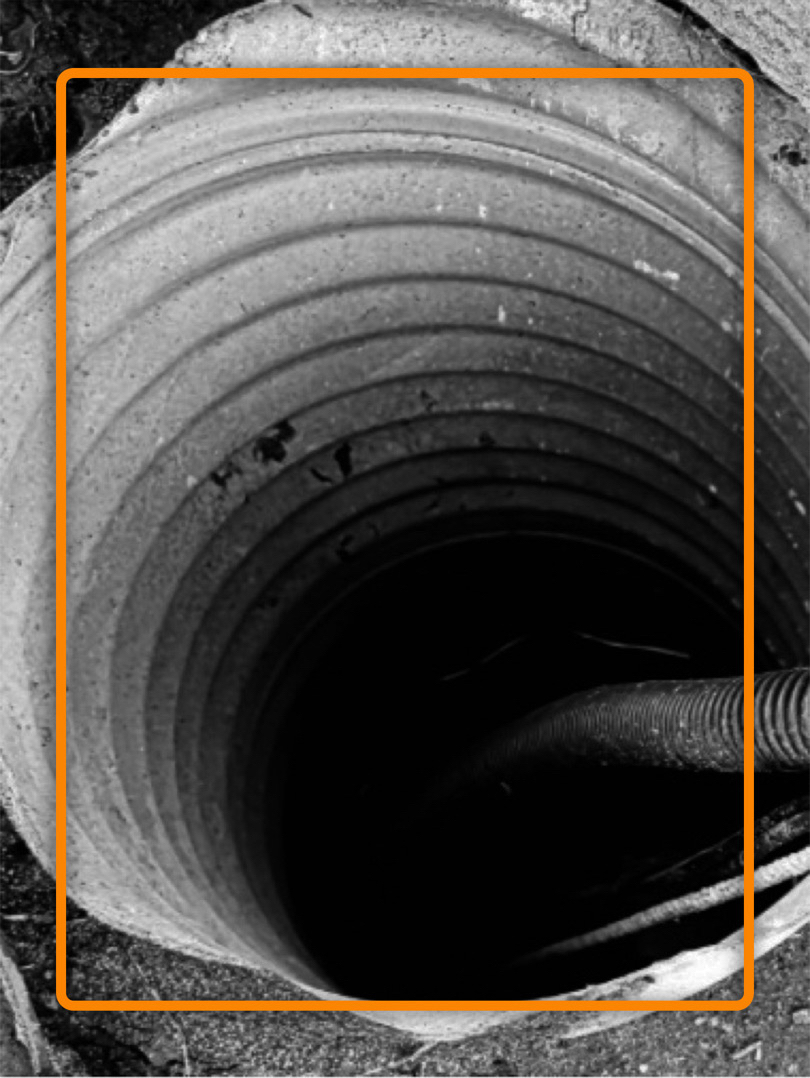

*The Sump Pump
These prevent basement flooding by removing accumulated water, directing it away from the home's foundation. Maintenance tips include regular testing by pouring water into the sump pit, cleaning the grate, and checking the power source and backup system. Ensure the discharge line is clear and directs water away from the property to prevent recirculation. Install a battery backup to keep the pump operational during power outages and consider a water alarm for early flood detection.
|
|
|
|
|
|
|
|
Extra Photos
|
|
|
|
|
|
|
|

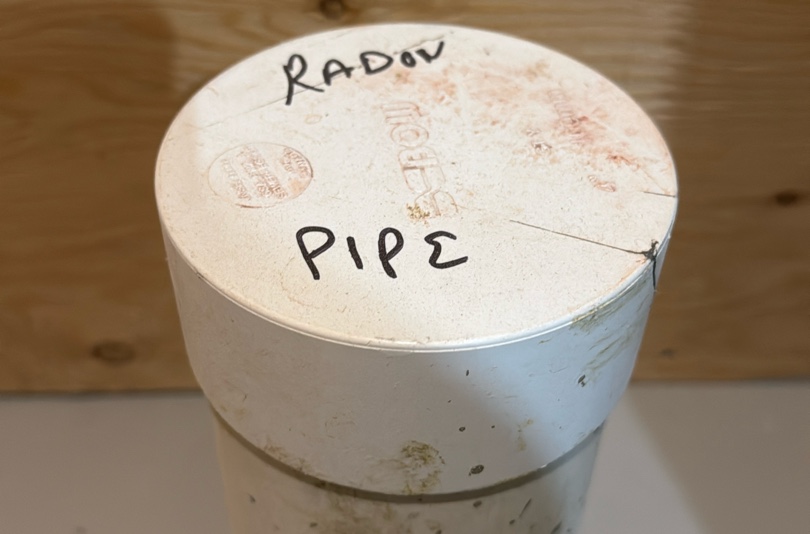

Radon Rough-In
This consists of a porous layer & a barrier beneath the slab & radon piping that extends from below the slab.
|
|
|
|

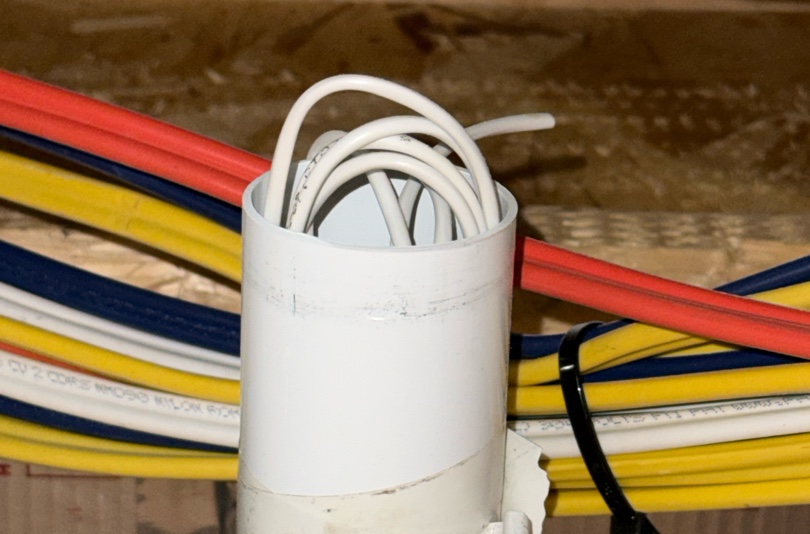

Hydronic Manifold(s)
Rough in was observed & should be checked further upon hook up.
|
|
|
|
|
|
|
|
Central Vacuum Rough-In
Your home already has the piping installed, but you do not have the final connections completed.
|
|
|
|
Arc Fault Circuit Interrupter
An AFCI detects the signature of loose connections in home wiring.
|
|
|
|
The Mechanical Baseline
𝗠𝗲𝗰𝗵𝗮𝗻𝗶𝗰𝗮𝗹 – 𝗔𝗿𝗲𝗮𝘀 𝗜𝗻𝘀𝗽𝗲𝗰𝘁𝗲𝗱Mechanical components and systems are reviewed for presence, general condition, visible damage, and basic operation where applicable. This includes commonly accessible heating, cooling, and ventilation equipment, water heating equipment, visible piping and ductwork, pumps, valves, and associated controls. Supporting components and other mechanical features typically found within the home are also visually reviewed where present. 𝗦𝘁𝗿𝘂𝗰𝘁𝘂𝗿𝗲 – 𝗔𝗿𝗲𝗮𝘀 𝗜𝗻𝘀𝗽𝗲𝗰𝘁𝗲𝗱 Structural components are reviewed for presence, general condition, and visible signs of damage or movement where applicable. This includes commonly accessible foundation surfaces, framing elements, beams, posts, columns, load-bearing walls, and other visible structural features. The review focuses on observable conditions within accessible areas and does not include engineering analysis or invasive evaluation. |
|
insurance
| Safety Overview | |
| Site Limitations | ⚠️ Visibility - Access - Height |
| Inspection Type | ◻️ Pre-Purchase Inspection (non-exhaustive) |
| Property Vacancy | ◻️ Not Occupied & Staged (restrictive) |
| Smoke & CO | ◻️ Compliant: installed, placed & functional |
| Egress Windows | ◻️ Location: All Bedroom(s): Present |

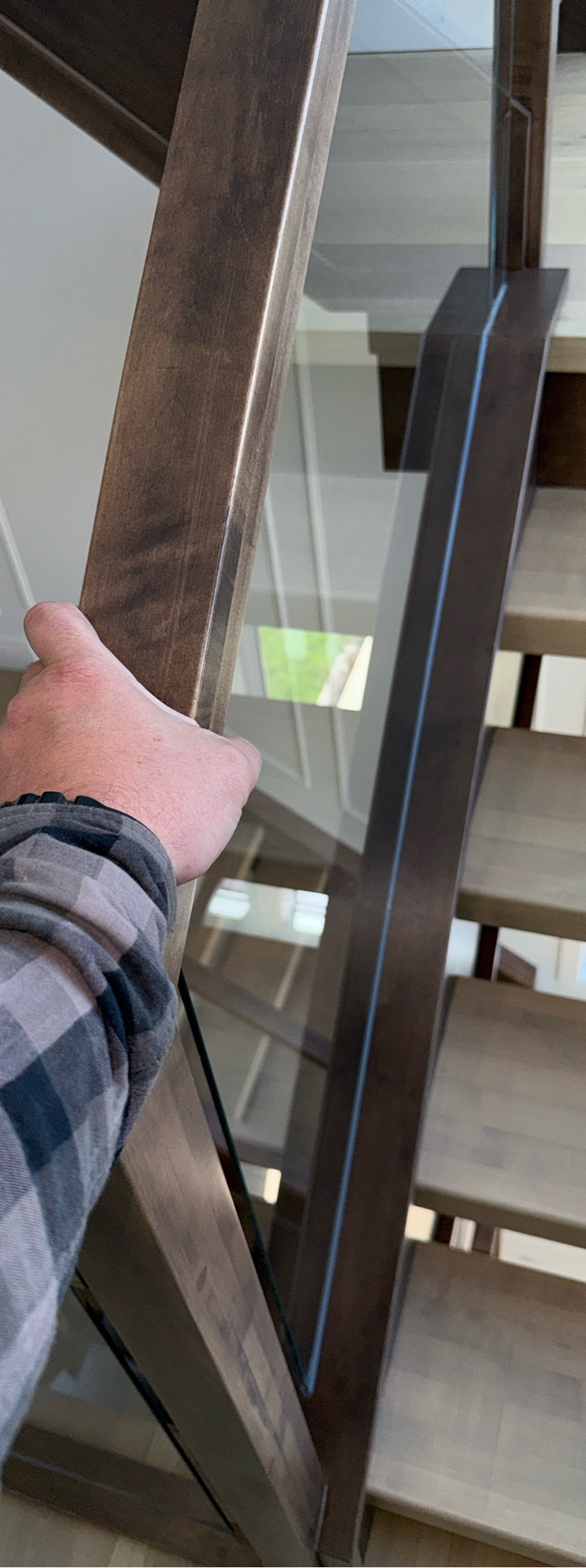

| Stairs & Handholds | ⚠️ Structure: Missing Rail |
| Roof System | |
| Method of Inspection | ◻️ Ladder at edge, walked & drone |

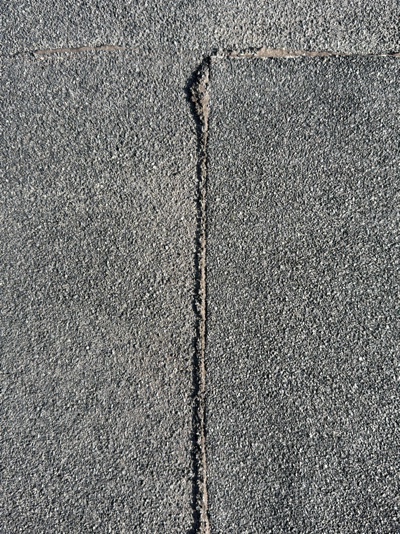

| Roofing Surface | ◻️ Material: Asphalt Torch Down - Age; Unknown |
| Drainage Path | ◻️ System: Trough & Downspouts |
| Ventilation System | ◻️ NO Vent(s) & Perforated Soffit |
| Exterior Overview | |
| Cooling Type(s) | ◻️ Not Present - Not Applicable |
| Main Fuel Shutoff | |
| Envelope Cladding | ◻️ Material: Stucco & Metal |
| Steps & Guards | ◻️ Materials: Concrete Stairs & No Railing |

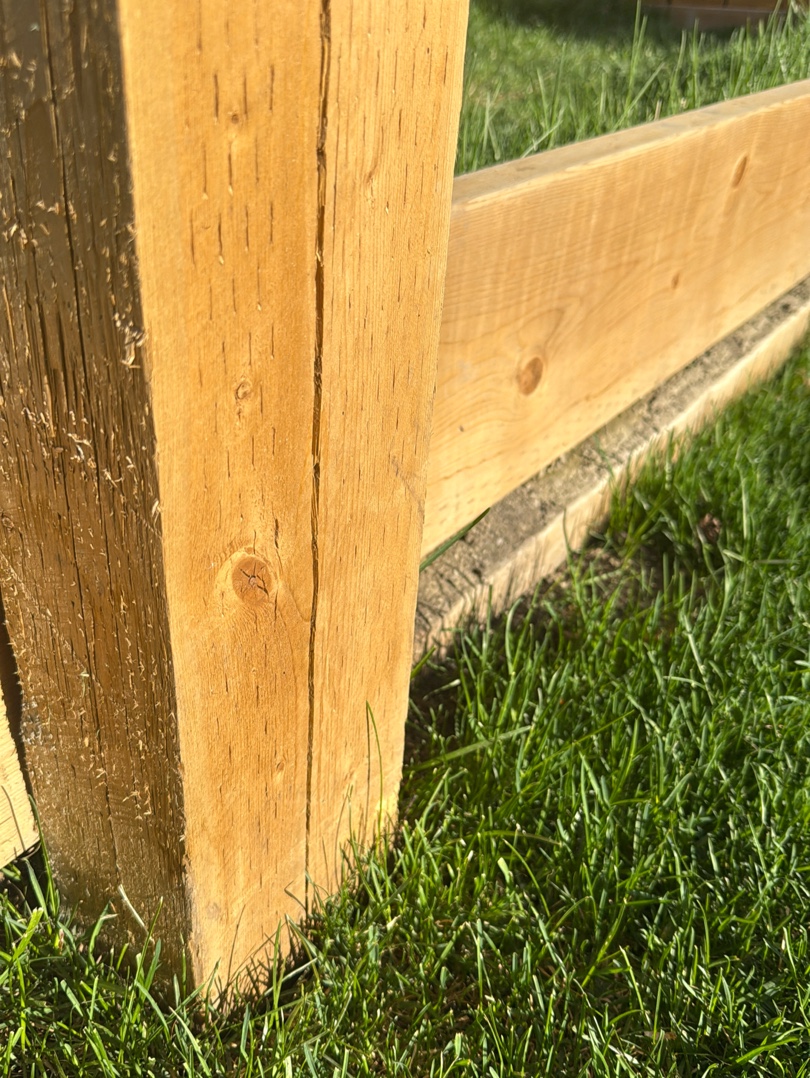

| Barriers & Walls | ◻️ Material: Wood (fence) / Wood (retaining) |
| Grade & Ground Cover | ⚠️ Terrain: Negative Slope - Vegitation |
| Hardscape Surfaces | ◻️ Material: Paths: Concrete - Drive: Not Present |
| Garage Systems | |
| Fire Seperation | ◻️ Proper: Seperation intact & continuous |
| Safety Auto Reverse | ◻️ Status: Functioning as intended |
| Heating Equipment | ◻️ Unit: Not Present |
| Attic System | |
| Hatch & Insulation | ⚠️ NO Access - Further Evaluation |
| Sheathing & Poly | ⚠️ No Access - Further Evaluation |
insurance
| Interior Overview | |
| Thermostat Location | ◻️ Location: Mulitple Locations: Restored |
| Walls & Ceilings | ◻️ Material: Drywall |
| Flooring Surfaces | ◻️ Material: Hardwood - Tile - Carpet |
| Other Features | ◻️ Type: NG Fireplace |
| Kitchen & Bathroom | |
| Safety - GFCI’s | ◻️ Location: Kitchen: Present - Bath: Present |

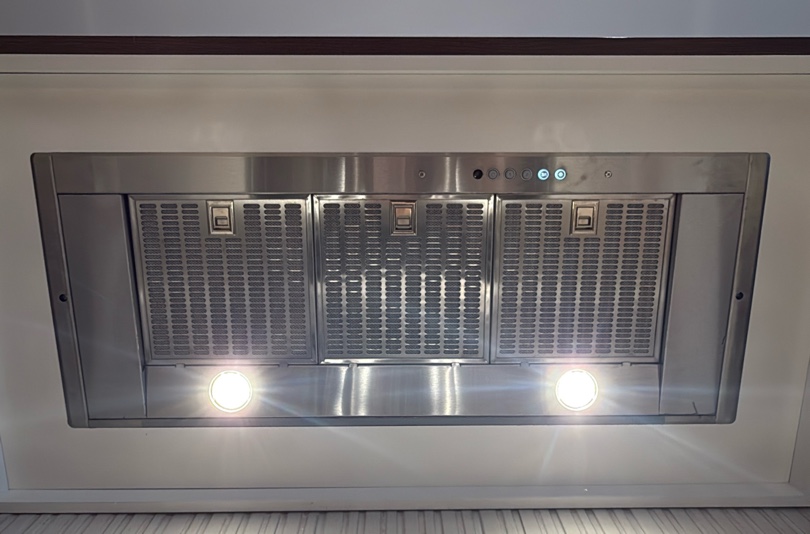

| Ventilation System | ◻️ Type: Range Hood: to EXT. - B-Fan: Present |
| Laundry Specs | ◻️ 220V - Vent: Metal - Water: Braided |
| Mechanical System | |
| Heating Unit(s) | ◻️ Type: HE Furnace x 2 / Forced Air - Age: 2024 |
| Heating Fuel Source | ◻️ Type: Natural Gas - Primary |
| Water Heater Unit | ◻️ Type: ~75 gal Tank - Age: 2024 |
| Water Heating Fuel | ◻️ Type: Natural Gas - Primary |
| Plumbing System | ◻️ Public Water: PEX - City Sewer: ABS |
| Water Main Shutoff | ◻️ Location: Mechanical Room |
| Back Flow Valve | ⚠️ Installation: Unknown |
| Electrical Service | ◻️ Entry: Overhead (Garage) - Material: Copper |
| Service Disconnect | ◻️ Location: Not Present |
| Main Panel Interior | ◻️ Location: Mech Room - Ground: Unknown |
| Electrical System | ◻️ Service: 200 AMP - Branch: Copper |
| Structure System | |
| Roof Structure | ⚠️ Type: Undetermined - Unknown |
| Exterior Wall System | ◻️ Type: Wood Studs |
| Structure System | ◻️ Type: Engineered Joist & Beam |
| Foundation System | ◻️ Type: Poured Concrete |
| Structural Observ. | ◻️ Notes: Minor cracking |
72 seconds
Positive reviews from awesome customers like you help others to feel confident about choosing our firm & our “to the point” reporting methodology.
We’d so appreciate if you could take 72 seconds to click on our logo below and share your happy experience.
Much Appreciated
